Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine

Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine

core drilling machine 1700m

crawler mounted core drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCDX-8

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCDX-8
Drilling Depth:
1700-3000m
Power:
370HP Diesel Engine
Transport Dimensions:
8300×2400×3500mm
Weight:
25000kg
Highlight:

core drilling machine 1700m

,

crawler mounted core drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

1700 - 3000m Depth Crawler Mounted Core Drilling Rig 370HP Diesel Engine



Product Description



The RCDX - 8 hydraulic core drilling rig is an innovative multi - functional drilling equipment developed to meet market needs and integrate the world's advanced technologies. The drilling rig has strong adaptability and can work freely in plains, hills, high and low temperature environments. The host machine has a unique design, integrating bicycle frame, power, mud pump and winch into one, realizing the dual functions of line drill core and top drive. The RCDX - 8 is known for its superior performance and efficient working capabilities, while being easy to operate and ensuring operator safety. As an excellent domestic drilling rig, it is capable of BQ, NQ, HQ and PQ drilling tasks. This hydraulic diamond core drill rig is suitable for inclined and vertical drilling and is equipped with diamond and carbide drill bits, further expanding its application range and making it an important tool in drilling projects.



Product Specifications



Power Unit Power 276 kW (370HP) at 2100 r/min
Drilling Capacity NQ 3000m
HQ 2400 m
PQ 1700 m
Drill Head RPM of Spindle Three Shifts/ Stepless ChangeThree 0-1250 RPM
Max. Torque of Spindle 7300 N·m at 170 rpm
1300 N·m at 1250 rpm
Spindle Diameter 121 mm(4.76 inches)
Max. Lifting capacity of Spindle 295 kn
Max. Feeding Power 152 kN
The capacity of Main Hoist Hoisting force (single wire) 120kN
Steel Wire Diameter 21.5 mm
Steel Wire Length 50 m
The capacity of Wireline Hoist Hoisting Force (single wire) 15 kN(bare drum)
Steel Wire Diameter 6.3 mm
Steel Wire Length 2800m
Mast Effective Hoisting Height 9.6 m
Mast Adjusting Angle 0°—90°
Drilling Angle 45º off horizontal to 90ºvertical down
Feeding Stroke 4700mm
Slippage Stroke 1100mm
Foot Clamp Clamping Scope 55.5-117.5 mm through-hole Ф154mm
Mud Pump Type Reciprocating Pump Triplex Plunger
Model BW320
Stroke 110mm(4.3 inches)
Output volume 320,230,165,118 L/min (84.5, 61, 44, 31 US Gallons/min)
Discharge pressure 4.0, 5.0, 6.0, 8.0 Mpa (580, 725, 870, 1160 psi)
Others Weight 25000 Kg
Transport Dimensions (L × W ×H ) 8300×2400×3500mm



Product Features



The RCDX - 8 hydraulic core drilling rig is known for its powerful power unit, with a maximum power of 276 kilowatts ( 370 horsepower ) and a rotation speed of 2100 rpm. It has excellent drilling capabilities, with NQ specifications up to 3,000 meters, HQ specifications up to 2,400 meters, and PQ specifications up to 1,700 meters. The spindle speed can be continuously variable in three gears, with a maximum speed of 1250 rpm, and the maximum spindle torque is 7300N·m. The maximum feeding force of the feeding system is 152 kN, the lifting force of the main winch ( single strand ) is 120 kN, and the lifting force of the line winch ( single strand ) is 15 kN. The effective lifting height of the derrick is 9.6 meters, and the angle adjustment range is 0 ° to 90 °. The clamping range of the foot clamp is 55.5-117.5 mm. The mud pump is a reciprocating three - cylinder plunger pump, model BW320, with different output volumes and discharge pressures.



Product Image

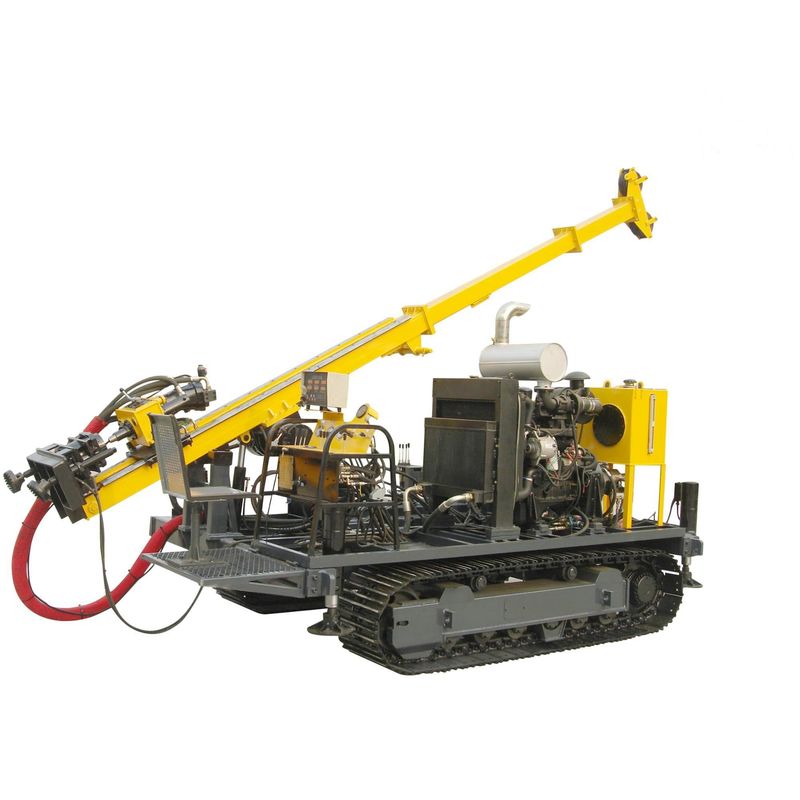

Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine 0Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine 1Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine 2

Crawler Mounted Core Drilling Machine 1700m - 3000m Depth 370HP Diesel Engine 3
