49.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity

49.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity

49.2kw portable core drilling rig

49.2kw hydraulic core drilling rig

portable hydraulic core drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ600Y

Contact Us
Request A Quote
Product Details
Name:
Core Drilling Rig
Model:
RCJ600Y
Drilling Pipe Length:
1.5m
Diesel Engine:
KUBOTA 4 Cylinders Turbo Diesel Engine
Engine Power:
49.2KW X 2sets
Rate Rotary:
2700rpm
Highlight:

49.2kw portable core drilling rig

,

49.2kw hydraulic core drilling rig

,

portable hydraulic core drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

200 / 400 / 600m Drilling Capacity Portable Core Drilling Rig KUBOTA 49.2KW



Machine Introduction



The RCJ600Y portable core drilling rig is an ultra - portable drilling equipment designed for terrains that are inconvenient to transport. It has a modular design and is easy to quickly disassemble and assemble and carry manually. It is very suitable for medium - to - deep hole drilling in remote or rugged areas. Equipped with a high - efficiency Japanese Kubota National III turbocharged engine and an integrated control system, ensuring stable and powerful power output. Its hydraulic system uses Beijing Huade ' s A10V high - pressure plunger pump, which has constant power output and load - sensing control technology and can adapt to complex formations. The power head is uniquely designed and its output torque is three times that of traditional equipment. When paired with thin - walled drilling tools, it provides excellent cutting stability and accelerated drilling speed. The automatic telescopic mast and pressure loss protection clamping mechanism enhance the compactness and safety of the equipment. Fully hydraulic drive, lightweight and modular design enable RCJ600Y to drill from different angles without a drilling tower. It occupies a small area, is easy to deploy quickly, meets environmental protection requirements, and is an efficient tool for geological exploration.



Technical Parameters



Drilling depth capacity





BTW 57.3mm 600m
NTW 73.3mm 400mm
HTW 91.3mm 200mm
Drilling pipe length 1.5m
Diesel engine KUBOTA 4 cylinders Turbo diesel engine
Engine power 49.2KW X 2sets
Rate rotary 2700rpm
Hydraulic system Main pump 31.5MPa-200 l/min x 2
Assisted pump 20MPa-80 l/min x 2
Cooling system Wind cooling + Water cooling
Top drive rotation head Drilling angle 45-90
Maximum torque 1200N.m
Maximum rotation speed 0-1100rpm
Feed travel 1.8m
Pull force 100KN
Feeding force 75KN
Winch Average speed 110m/min
Lifting force 15KN
Were Diameter 6mm
Were accommodation 800m
Hydraulic clamp holder B/N/H
Module Weight Power module weight 350KGS X 2
Operating floor module weight 140KGS
Oil tank module weight 240KGS
Rotary head module weight 255KGS
Chassis module weight 260KGS



Machine Advantages



The RCJ600Y portable core drilling rig adopts a lightweight - modular design. More than 90 % of the frame is made of aviation aluminum materials, which greatly reduces the weight of the equipment and makes it easy to assemble/disassemble quickly, taking only 20 minutes, making it easy to relocate. The use of thin - walled steel rods reduces resistance and speeds up drilling. The design of the long - stroke cylinder is easier to control than a chain, improving operational excellence. As a leading global brand of equipment, it ensures stability and reliability. There is no need for road construction and infrastructure construction, saving time and costs. Hydraulic core sampling and drilling operations do not require a drilling tower and are energy - saving and environmentally friendly. Its low consumption characteristics further save costs, making it a very popular portable core drilling rig on the market, especially suitable for mineral exploration.

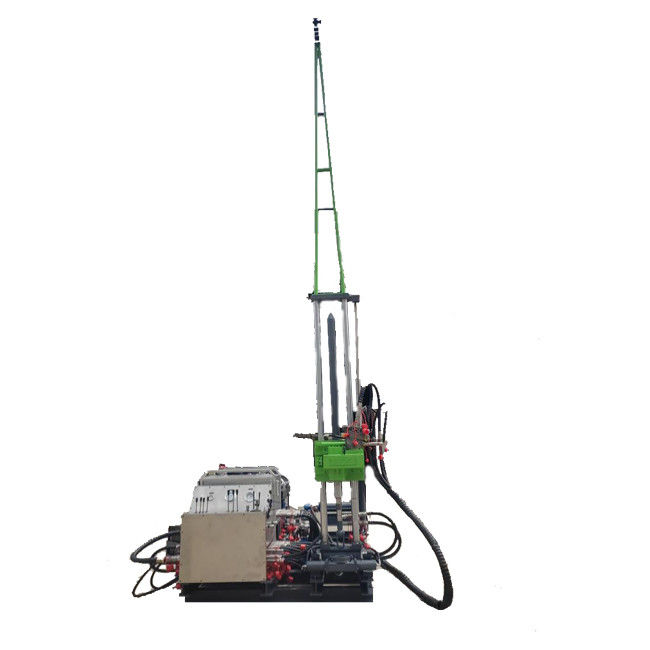

Machine Pictures



49.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity 049.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity 149.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity 249.2KW Portable Core Drilling Rig Equipment 200m / 400m / 600m Drilling Capacity 3
