500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia

500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia

132KW RC Drilling Machine

500m RC Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ500RC

Contact Us
Request A Quote
Product Details
Name:
RC Drilling Rig
Model:
RCJ500RC
Nominal Drill Depth:
500m
End-hole Diameter:
150mm
Drill Rig Weight:
12000kg
Length × Width × Height:
7650x2250x3217mm
Highlight:

132KW RC Drilling Machine

,

500m RC Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

500m Drilling Depth 150mm End - hole Dia RC Drilling Rig 132KW Cummins Power



Machine Introduction



As a cutting - edge DTH blasting drill, the RCJ500RC drilling rig is capable of drilling efficiently in a wide range of geological conditions with its powerful high - power torque and flexible multi - speed settings. Using a fully hydraulic drive system, it ensures the high - performance output of the drilling rig, and its unique design does not require an active drill pipe, which greatly reduces the auxiliary time, thus improving the overall drilling efficiency. In addition, the RCJ500RC drilling rig not only has strong thrust and lifting force to cope with complex drilling operations, but is also equipped with a tie rod device, which further reduces labor intensity and ensures convenient operation. The advantage of using a crawler chassis design gives the drill rig excellent mobility, allowing it to flexibly adapt to various construction site environments. In addition, the selected world's high - end technology products or well - known brand hydraulic components, as well as the equipped monitoring system, ensure the stability of the system and low failure rate, further improving the reliability of the drilling rig.



Diversified drilling methods are another major feature of the RCJ500RC drilling rig, including non - circulating liquid dry auger drilling, rock formation DTH hammer drilling, sandy soil layer mud circulation drilling, etc. This enables the drilling rig to demonstrate its excellent drilling capabilities in various geological environments and meet different engineering needs. It is a very trustworthy high - end drilling equipment.



Technical Parameters



Model RCJ500RC
Drill rig weight(crawler mounted) kg 12000
Engine Power kW 132
Length × Width × Height (normal) mm 7650x2250x3217
Ambient Temperature Range °C -10~38
Drill Ability
Nominal Drill Depth m 500
End-hole Diameter mm 150
Drill head output
Max Output Torque N.m 12000
Output Rotation Speed(continuity) rpm 30 / 60

)

Output Rotation Speed(interval)

rpm 52 / 104
Feeding mm 7000
Thrust Force kN 100
Lifting Capacity kN 160
Pipe-puller Device Output
Output Rotation Speed rpm 40
Max Output Torque N.m 30000
Hole-through Diameter mm 370
Main Winch
Pull Force of the first Layer kN 70
Rope Diameter mm 19
Rope Capacity m 80
Auxiliary Winch
Pull Force of the first Layer kN 20
Rope Diameter mm 14
Rope Capacity m 60
Clamp Device Hole-through Diameter mm 340
Oil Pump Output Volume ml/r 87+63+25
Max Pressure MPa 25
Tank Capacity L 320
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 1.2
Unit Pressure MPa <0.05
Climb Ability ≯20
Wire line core drilling unit head

Drilling depth



NQ m 1200
HQ m 850
PQ m 600



Machine Advantages



As a cutting - edge DTH blasting drill, the RCJ500RC drilling rig is capable of drilling efficiently in a wide range of geological conditions with its powerful high - power torque and flexible multi - speed settings. Using a fully hydraulic drive system, it ensures the high - performance output of the drilling rig, and its unique design does not require an active drill pipe, which greatly reduces the auxiliary time, thus improving the overall drilling efficiency. In addition, the RCJ500RC drilling rig not only has strong thrust and lifting force to cope with complex drilling operations, but is also equipped with a tie rod device, which further reduces labor intensity and ensures convenient operation. The advantage of using a crawler chassis design gives the drill rig excellent mobility, allowing it to flexibly adapt to various construction site environments. In addition, the selected world's high - end technology products or well - known brand hydraulic components, as well as the equipped monitoring system, ensure the stability of the system and low failure rate, further improving the reliability of the drilling rig.



Diversified drilling methods are another major feature of the RCJ500RC drilling rig, including non - circulating liquid dry auger drilling, rock formation DTH hammer drilling, sandy soil layer mud circulation drilling, etc. This enables the drilling rig to demonstrate its excellent drilling capabilities in various geological environments and meet different engineering needs. It is a very trustworthy high - end drilling equipment.

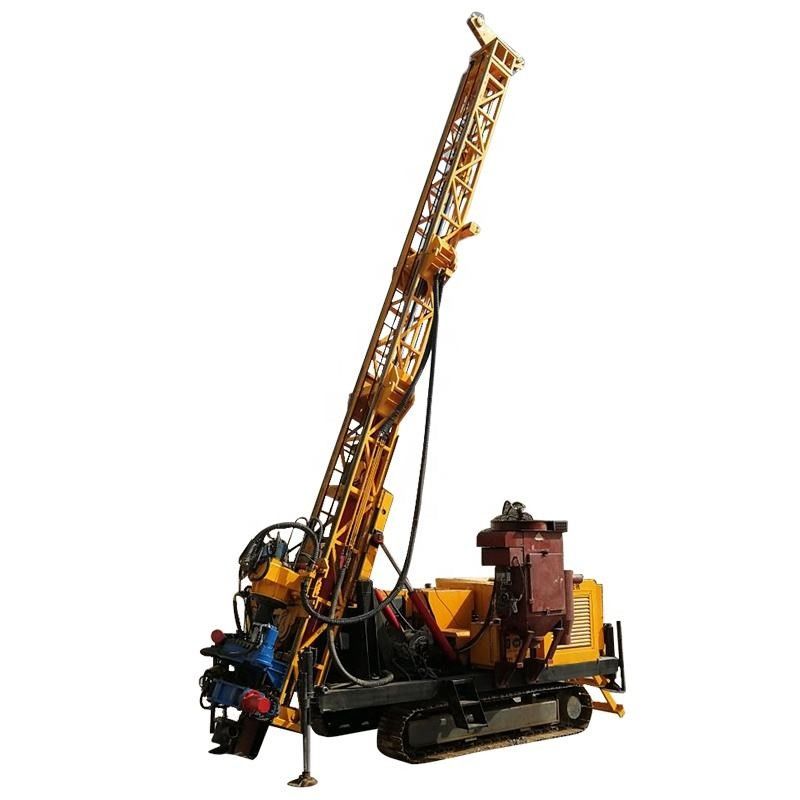

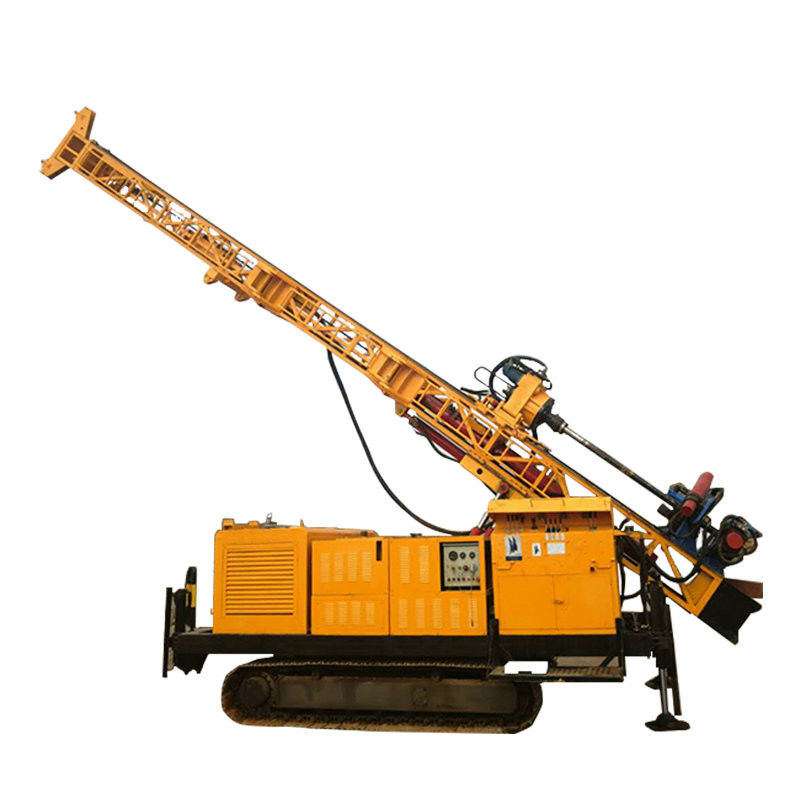

Machine Pictures





500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia 0500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia 1500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia 2500m Drilling Depth RC Drilling Machine 132KW 150mm End Hole Dia 3
