Name: 18m³/Min Delivery 1.7Mpa Pressure Drill Type Air Compressor 80L Oil Capacity
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: KSZJ-18/17
Availability: InStock

Home > products > Drilling Air Compressor >

18m³/Min Delivery 1.7Mpa Pressure Drill Type Air Compressor 80L Oil Capacity

1.7Mpa Drill Type Air Compressor

18m³/min Drill Type Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSZJ-18/17

Request A Quote

Product Details

Name:

Drilling Air Compressor

Model:

KSZJ-18/17

Air Delivery:

18m³/min

Working Pressure:

1.7Mpa

L*W*H:

3000X1800X2000mm

Weight:

3200kg

Highlight:

1.7Mpa Drill Type Air Compressor

18m³/min Drill Type Air Compressor

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price

Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price

Contact Now

Product Description

18m³ / min Deliver 1 . 7Mpa Pressure Drilling Air Compressor 80L Oil Capacity

Product Description

KSZJ - 18 / 17 Kaishan screw air compressor water well drilling rig engine screw air compressor, as a professional choice for water conservancy projects, adopts the world ' s leading screw compression technology to ensure high efficiency, low maintenance requirements and long - term stable operation. Its intelligent microcomputer control system realizes automated management and can automatically adjust the operation of the air compressor according to work needs. It also provides fault warnings and instructions, enhancing the safety and convenience of operation. In addition, the efficient air filtration and separation system ensures air quality and avoids air source pollution during the work process, thus improving the efficiency and quality of the entire work process.

Product Specifications

Model	KSZJ-18/17
Whole machine
Air delivery (m3/min)	18
Working pressure (Mpa)	1.7
Weight (kg)	3200
LWH(mm)	3000X1800X2000
Diesel engine
Model	YC6A260L-20
Type	Vertical,In line,Water cooled
Breath way	Turbocharged intercooled
Cylinder diameterstokecylinder quantity	129×155×6
Displacement (L)	12.2
Rated rotary speed (r/min)	1800
Unload rotary speed (r/min)	1300
Power KW(HP)	191(260)
Diesel engine oil capacity (L)	35
Fuel oil capacity (L)	350
Electrical system voltage (v)	24
Compressor
Compressor head model	SKY11G235
Compression stage	2
Compressor oil capacity (L)	80
Intake valve size*quantity	G21 G3/41

Product Features

KSZJ - 18 / 17 Kaishan screw air compressor is specially built for water well drilling rigs. It stands out for its low noise and low vibration design and is easy to maintain. It is fuel - efficient, energy - saving and efficient, and meets the needs of long - distance outdoor operations. The high - efficiency screw compressor head is perfectly combined with the famous brand diesel engine, making it reliable and durable. It also achieves precise air supply control through intelligent matching of air consumption, demonstrating excellent adaptability. Choose KSZJ - 18 / 17 to make water well drilling rig operations more efficient and stable.

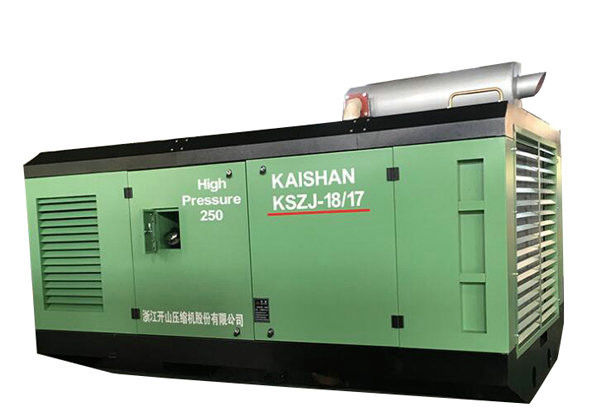

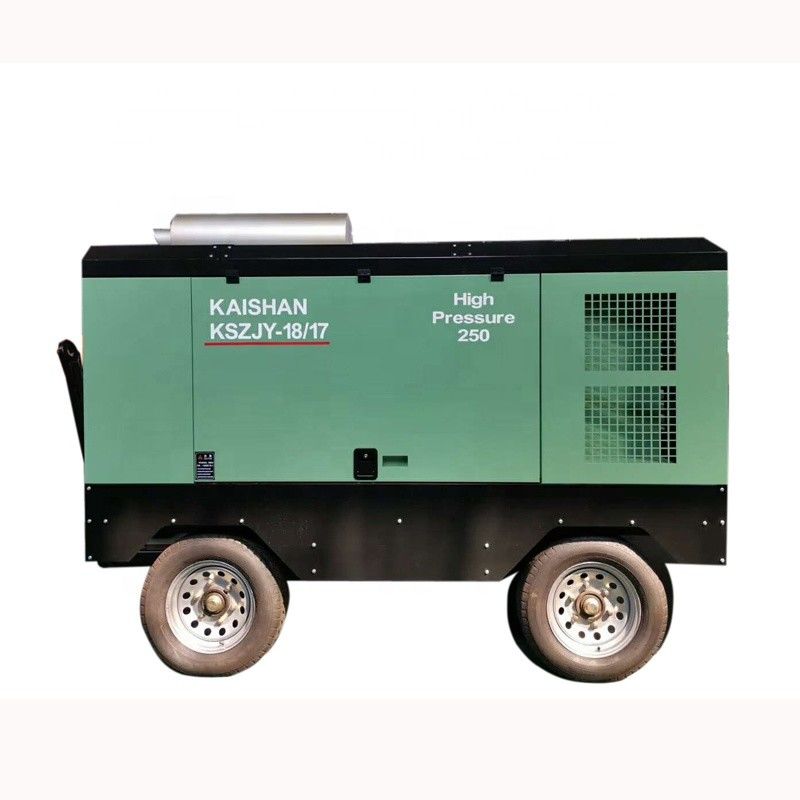

Product Image
