2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity

2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity

2.5Mpa Drilling Air Compressor

550HP Drilling Air Compressor

550HP Drill Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSZJ-33/25

Contact Us
Request A Quote
2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity
2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity
Product Details
Name:
Drilling Air Compressor
Model:
KSZJ-33/25
Air Capacity:
33m³ / Min
Working Pressure:
2.5Mpa
Power:
Yuchai 550HP
Dimension:
4700×2100×2850mm
Highlight:

2.5Mpa Drilling Air Compressor

,

550HP Drilling Air Compressor

,

550HP Drill Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

33m³ / min Capacity 2 . 5Mpa Work Pressure Drilling Air Compressor Yuchai 550HP



Machine Introduction



Kaishan mobile screw air compressors are highly respected in many industries for their excellent safety, reliability, economical practicality and durability. It focuses on low noise and low vibration design, easy maintenance, low fuel consumption, and is especially suitable for outdoor long - distance operations. The core screw compressor head of this air compressor is directly connected to a well - known brand diesel engine without the need for reduction gears, which greatly enhances reliability and extends service life. At the same time, the use of well - known brand engines not only meets environmental protection standards, but also provides comprehensive after - sales services to ensure users have worry - free use. To sum up, Kaishan mobile screw air compressor is an ideal choice for various industries and can meet your diverse needs.



Technical Parameters



Model

Air capacity

(m3/min)

Work pressure

(Mpa)

Diesel engine

(HP)

Dimension size

(mm)
6/7 6 0.7 Yuchai 80HP 3750×1920×1700
7.5/7 7.5 7 Yuchai 80HP 3750×1920×1700
9/7 9 0.9 Yuchai 95HP 3750×1920×1700
12/10 12 1 Cummins 150HP 4080×1980×2350
12/10 12 1 Yuchai 160HP 4080×1980×2350
10/13 10 1.3 Yuchai 160HP 4080×1980×2350
17/7 17 0.7 Cummins 180HP 3380×1640×2350
15/10 15 1 Cummins 180HP 3380×1650×2500
15/10 15 1 Yuchai 190HP 3380×1650×2500
15/13 15 1.3 Yuchai 240HP 3380×1650×2500
15/14.5 15 1.45 Yuchai 190HP 3380×1650×2500
13/17 13 1.7 Cummins 215HP 3780×1980×235
18/17 18 1.7 Cummins 260HP 3780×1980×235
18/17 18 1.7 Yuchai 260HP 3780×1980×235
19/18 19 18 Yuchai 260HP 3780×1980×235
22/8 22 0.8 Cummins 260HP 4580×1950×2600
22/14 22 1.4 Yuchai 340HP 4580×1950×2600
22/14 22 1.4 Cummins 360HP 4580×1950×2600
22/18 22 1.8 Yuchai 340HP 4600×1950×2850
22/18 22 1.8 Cummins 360HP 4600×1950×2850
22/20 22 2 Cummins 325HP 4600×1950×2850
26/20 26 2 Cummins 360HP 4600×1950×2850
27/20 27 2 Yuchai 395HP 4600×1950×2850
27/22 27 2.2 Cummins 400HP 4600×1950×2850
29/23 19 2.3 Yuchai 400HP 4700×2100×2850
31/25 31 2.5 Yuchai 550HP 4700×2100×2850
33/25 33 2.5 Yuchai 550HP 4700×2100×2850
35/30 -38/25 35/38 3/2.5 cummins 550HP 4700×2100×2850

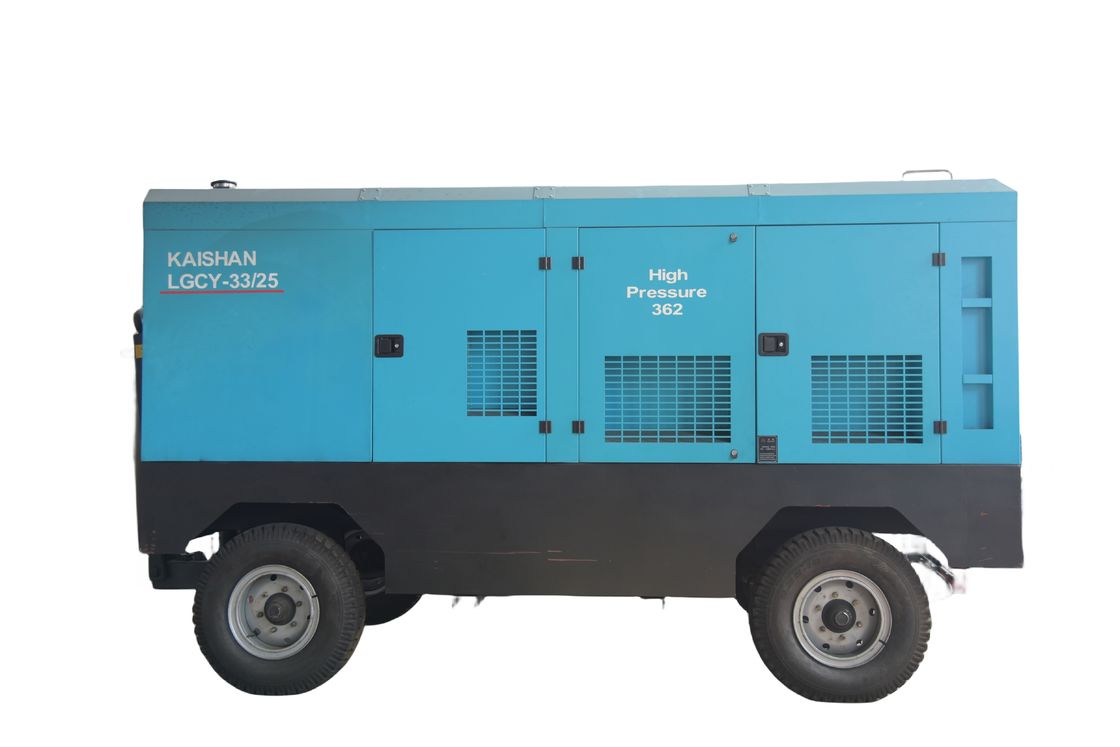

Machine Pictures



2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity 0

2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity 1

2.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity 22.5Mpa Work Pressure 550HP Drilling Air Compressor 33m³ / min Capacity 3
