9 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure

9 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure

Drilling Air Compressor 8bar

Drilling Air Compressor 88KW

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY-330/8

Contact Us
Request A Quote
Product Details
Name:
Drilling Air Compressor
Model:
KSCY-330/8
Air Capacity:
9.2m³/min
Working Pressure:
8Bar
Dimension:
2175*1760*1785mm
Weight:
1550kg
Highlight:

Drilling Air Compressor 8bar

,

Drilling Air Compressor 88KW

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

9 . 2m³ / min Capacity 8bar Work Pressure Drilling Air Compressor Yuchai 88KW



Machine Introduction



The KSCY - 330 / 8 screw air compressor is a small, portable device produced by the Kaishan brand, powered by a 120 HP Yuchai engine, capable of providing 330CFM displacement and 8bar working pressure. The machine is particularly suitable for use in environments such as mine blasting hole RIGS, small anchor hole RIGS, soil nailers and portable DTH RIGS, and is designed for quick movement and deployment. It has a wide range of application scenarios, covering many industries such as road, railway construction, water conservancy engineering, shipbuilding, urban infrastructure construction, energy development and military operations.



Technical Parameters



KSCY-330/8 Diesel Driven portable Screw Air Compressor
Air compressor
Model No: KSCY-330/8
Air capacity(m³/min/cfm) 9.2 (330)
Work pressure(Bar/Psig) 8 (116)
Compression Stage Single
Diesel Engine
Engine Model No. Yuchai
Rated RPM (r/min) 1800
Unload RPM(r/min) 1400
Rated Power (KW/hp) 88 (120)
Fuel Capacity(L) 150
Package
Noise level db (a) 80±3
Outlet connection G3/4×1,G1 1/2×1
Wheel size * Qty 6.5-16x4
Dimension/mm 2175*1760*1785
Weight(KG) 1550



Machine Advantages



The air compressor is characterized by low noise and low vibration, providing a quiet operating environment and easy maintenance. Designed for high fuel economy and remote outdoor use, it is equipped with a comprehensive protection system for energy saving and efficiency. The main engine adopts a large diameter rotor, which is directly connected with the diesel engine, without reducing gear, improving reliability and service life. Diesel engines from well - known brands such as Cummins and Yuchai are selected to meet European emission standards, with low fuel consumption and nationwide after - sales service. In addition, the portable air compressor can automatically adjust the air supply to adapt to different air consumption needs, similar to the frequency conversion control in the motor driven screw air compressor, showing its excellent adaptability.

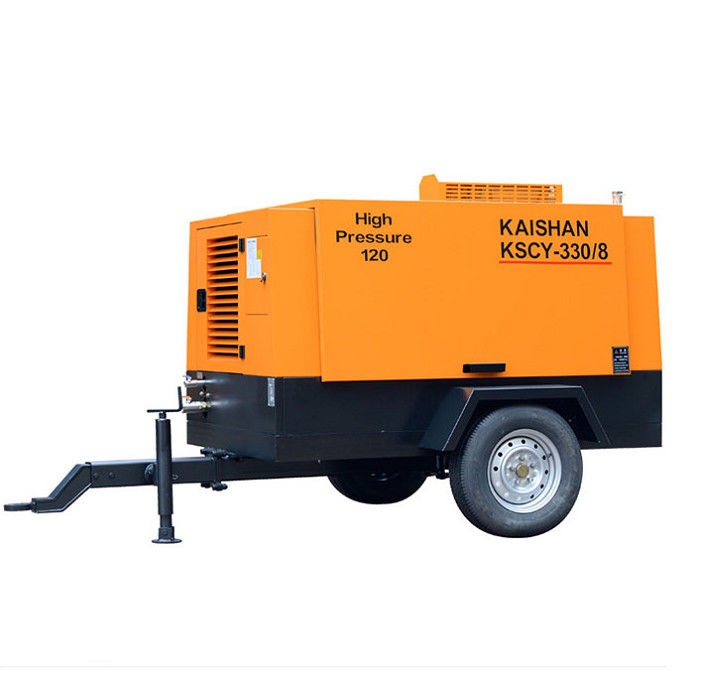

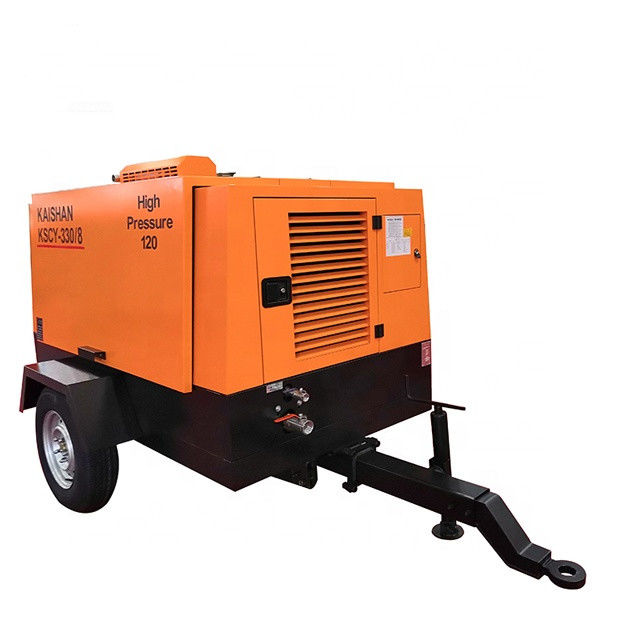

Machine Pictures



9 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure 09 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure 19 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure 29 . 2m³ / min Capacity Drilling Air Compressor Yuchai 88KW 8bar Work Pressure 3
