Name: 180HP Power Drill Style Air Compressor 530CFM Capacity 13bar Work Pressure
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: KSCY-550/13
Availability: InStock

Home > products > Drilling Air Compressor >

180HP Power Drill Style Air Compressor 530CFM Capacity 13bar Work Pressure

180HP Drill Style Air Compressor

Drill Style Air Compressor 530CFM

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY-550/13

Request A Quote

Product Details

Name:

Drilling Air Compressor

Model:

KSCY-550/13

Air Capacity:

15 (530)m³/min(CFM)

Work Pressure:

13Bar

Dimension:

3450*1520*2220

Weight:

2750kg

Highlight:

180HP Drill Style Air Compressor

Drill Style Air Compressor 530CFM

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price

Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price

Contact Now

Product Description

530CFM Capacity 13bar Work Pressure Drilling Air Compressor Yuchai 180HP Power

Machine Introduction

The KSCY - 550 / 13 is a portable screw air compressor designed for a variety of industries such as transportation and mining. It operates quietly, is easy to maintain, is fuel efficient and features an efficient air end design. Equipped with a well - known brand of diesel engine, which complies with European emission standards, and provides nationwide after - sales service, making remote operations both efficient and economical.

Technical Parameters

KSCY-550/13 Diesel Driven portable Screw Air Compressor
Air compressor
Model No:	KSCY-550/13
Air capacity(m³/min/cfm)	15 (530)
Work pressure(Bar/Psig)	13 (190)
Fluid capacity(L)	48
Compression Stage	Single
Diesel Engine
Engine Model No.	Cummins6BT5.9-C180
Cylinder bore stroke number of cylinders	1021206
Capacity (L)	5.9
Rated RPM (r/min)	1800
Unload RPM(r/min)	1400
Rated Power (KW/hp)	132(180)
Fuel Capacity(L)	150
Package
Noise level db (a)	80±3
Outlet connection	G21,G¾1
Wheel size * Qty	6.5-16x4
Dimension/mm	345015202220
Weight(KG)	2750

Machine Advantages

KSCY - 550 / 13 portable screw air compressor is equipped with advanced air filtration technology, large rotor bearing design, and intelligent modulation control system. Together, these features enable low noise, low vibration and efficient energy management. The control panel integrates multiple safety monitoring and alarm functions, and the optional well-known diesel engines such as Cummins and Yuchai ensure the high performance and stability of the equipment. The equipment also has an enhanced cooling system to adapt to extreme working conditions, ensuring that the equipment can operate stably in various environments.

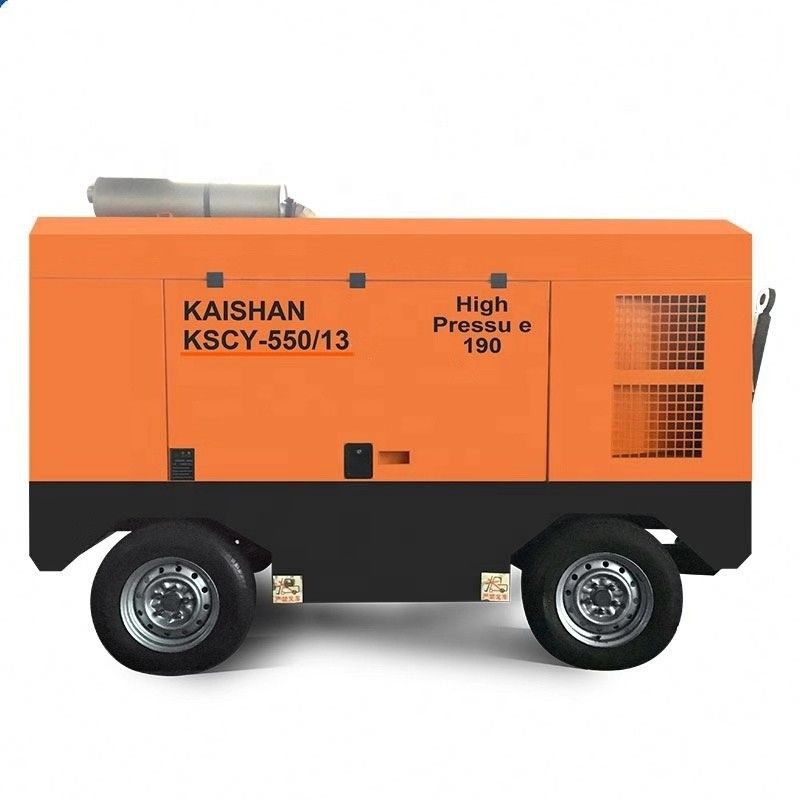

Machine Pictures

180HP Power Drill Style Air Compressor 530CFM Capacity 13bar Work Pressure 0
