Name: Turbocharged Impact Drilling Air Compressor 140KW 1.2Mpa / 1.5Mpa Working Pressure
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: KSCY-570/12-550/15
Availability: InStock

Home > products > Drilling Air Compressor >

Turbocharged Impact Drilling Air Compressor 140KW 1.2Mpa / 1.5Mpa Working Pressure

Turbocharged Drilling Air Compressor

Drilling Air Compressor 140KW

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY-570/12-550/15

Request A Quote

Product Details

Name:

Drilling Air Compressor

Model:

KSCY-570/12-550/15

Air Capacity:

15/17m³/min

Working Pressure:

1.2/1.5Mpa

Dimensions:

3020×1520×2180

Weight:

2200kg

Highlight:

Turbocharged Drilling Air Compressor

Drilling Air Compressor 140KW

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price

Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price

Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price

Contact Now

Product Description

15 / 17m³ / min Capacity Turbocharged Drilling Air Compressor Yuchai 140KW

Machine Introduction

KSCY - 570 / 12 - 550 / 15 diesel - driven portable screw air compressor is widely used in many fields, such as roads, railways, mines, etc. It uses a well - known brand diesel engine that complies with environmental standards, is powerful, economical and fuel - saving. The unique air end design enables efficient operation at low speed and can automatically adjust the displacement according to demand. At the same time, it has safe and convenient operating characteristics and multiple protections to ensure stable operation. Features such as high - efficiency filtration, large rotor design and intelligent control make it efficient, energy - saving, durable and reliable, making it an ideal choice.

Technical Parameters

Model	KSCY-570/12-550/15
Air Capacity(m³/min)	17	15
Working pressure (MPa)	1.5	1.2
Weight (KG)	2200
Dimensions (mm)	3020×1520×2180
Tire size × quantity	6.50-16×4
Engine
Manufacturer	Yuchai
Diesel Engine Model	YC6J190-H300
Type	In-line
Inhalation method	Turbocharged
Cylinder × diameter×stroke×number of cylinders	105×125×6
Displacement (L)	6.494L
Rated Speed (r/min)	2200
Unloading speed (r/min)	1400
Rated power kW	140
Volume of Diesel oil (L)	15
Volume of Fuel oil (L)	150
Electrical system voltage (V)	24
Air compressor
Air-End model	KAISHAN SKKE152 (Design in USA)
Compression stages	1
Compressor oil capacity (L)	36
Supply valve Specification × quantity	G2×1,G3/4×1
Drilling rod	Φ76*3000 mm
Method of dust collecting	Dry type (hydraulic cyclonic laminar flow)

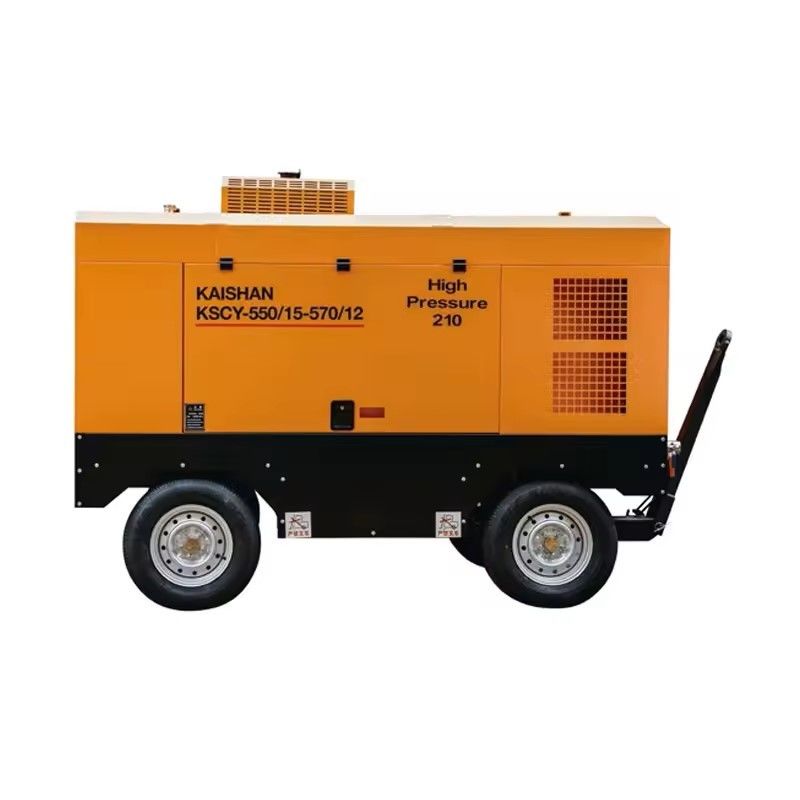

Machine Pictures
