20 - 17 Bar Pressure Drilling Air Compressor 194KW 18 - 19m³ / Min Capacity

18 - 19m³ / min Capacity 20 - 17 bar Pressure Drilling Air Compressor 194KW

Machine Introduction

KSCY - 650 / 20 - 700 / 17TK is a small diesel air compressor designed for extreme drilling environments with a powerful displacement capacity of 650 cubic feet per minute and a maximum pressure of 20 bar for heavy - duty drilling missions in harsh conditions. Powered by a 260 - horsepower Cummins diesel engine, the equipment uses advanced technology and high - quality components to ensure high efficiency, durability and reliability. Intelligent control systems provide detailed operational data and maintenance reminders to reduce downtime, extend equipment life, and reduce long - term operating costs. The compact wheel design facilitates mobility while advanced safety features protect operators and equipment. With its powerful performance, high efficiency and excellent durability, the KSCY - 650 / 20 - 700 / 17TK is the ideal choice for mine and water well drilling projects to meet the demanding drilling requirements and ensure smooth and efficient projects.

Technical Parameters



Machine Advantages

KSCY - 650 / 20 - 700 / 17TK is a high performance compressor offering 18 - 19 m3 / min displacement and 20 - 17 bar working pressure in a single stage compression and SKY11G165 head model with a 48L tank capacity and a noise level controlled at 80 ± 3 dB. The outlet connection sizes are G21 and G¾1. The equipment is equipped with Cummins 6CTA8.3 - C260 diesel engine with 8.3-liter displacement and 1141356 cylinder bore stroke, rated at 1800 RPM, unloaded at 1400 RPM and rated at 260 HP. The diesel engine has a fuel tank capacity of 21.9 litres, a fuel tank capacity of 380 litres, an electrical system voltage of 24V, and is equipped with four 7.5 - 16 tyres.

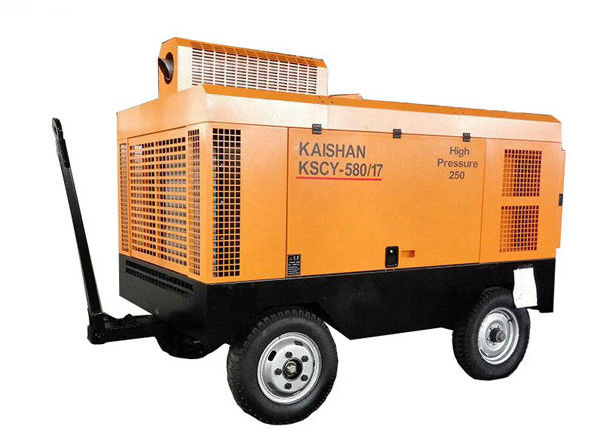

Machine Pictures
