20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity

20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity

Drill Air Compressor 228KW

20bar Drill Air Compressor

Place of Origin:

China

Brand Name:

Kaishan

Certification:

CE, ISO 9001:2000

Model Number:

KSCY-750/20

Contact Us
Request A Quote
20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity
20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity
Product Details
Name:
Drilling Air Compressor
Model:
KSCY-750/20
Capacity:
21m³/min
Working pressure:
20Bar
Dimension:
3300×1800×2300mm
Weight:
3900KGS
Highlight:

Drill Air Compressor 228KW

,

20bar Drill Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

21m³ / min Capacity 20bar Working Pressure Drilling Air Compressor 228KW



Machine Introduction



KSCY - 750 / 20 is a high - efficiency and energy - saving diesel air compressor equipped with internationally renowned brand diesel engines such as Yuchai and Cummins, meeting strict emission standards. This compressor is connected to the engine through a directly connected highly elastic coupling, eliminating the need for speed increase and maintaining low - speed operation to improve energy efficiency. It also features automatic displacement adjustment and an intuitive control panel to realize automated operation, reduce fuel consumption, and provide comprehensive alarm protection functions. Its air filtration system and high - efficiency air end design ensure low noise, low vibration and long operating life



Technical Parameters



Model No. KSCY-750/20

Capacity

 21m³/min (750cfm)
Working pressure

20bar (290psi)
The head model no. SKY11G165
Air compressor oil capacity 48L
Compression Stage: Single
Noise level db (a) 80±3
Outlet connection size*Qty G2*1,G¾*1
Engine
Engine Model No: 228KW

Cylinder bore stroke number

of cylinders

 114*135*6
Delivery Capacity 8.3L
Rated RPM 1800r/min
Unload RPM 1400r/min
Rated Power 228KW(310HP)
Diesel engine oil Capacity 21.9L
Fuel Tank Capacity 380 L
Electrical System Voltage 24V
Package
Wheel size * Qtys 7.5-16*4
Weight 3900KGS
Dimension  3300×1800×2300mm

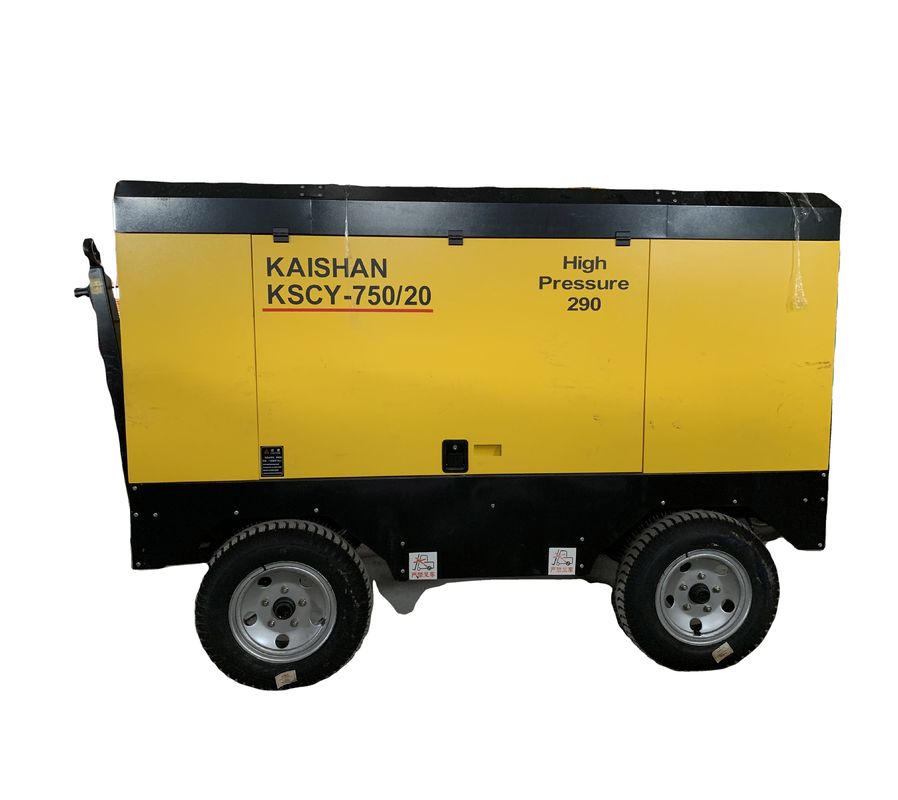

Machine Pictures



20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity 020bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity 1

20bar Working Pressure Drill Air Compressor 228KW 21m³/min Capacity 2
