36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW

36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW

Drilling Machine Air Compressor 410KW

30bar Drilling Machine Air Compressor

Place of Origin:

China

Brand Name:

Zhigao

Certification:

CE, ISO 9001:2000

Model Number:

S125D

Contact Us
Request A Quote
36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW
36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW
Product Details
Name:
Drilling Air Compressor
Model:
S125D
Nominal Displacement:
36m³/min
Rated Discharge Pressure:
30Bar
Dimensions:
4220*2000*2300mm
Total Weight:
5820kg
Highlight:

Drilling Machine Air Compressor 410KW

,

30bar Drilling Machine Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

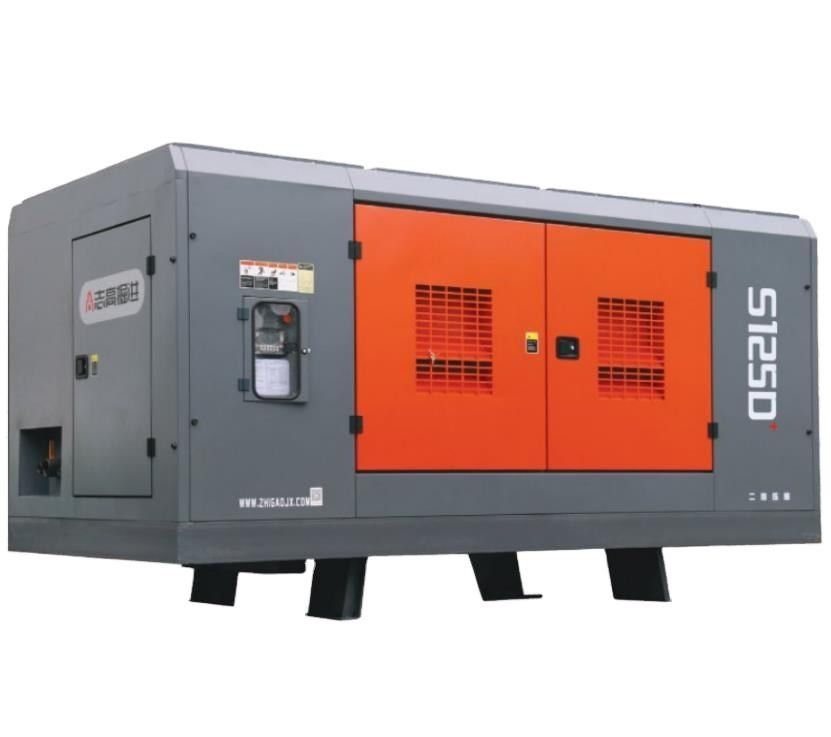

36m³ / min Capacity 30bar Working Pressure Drilling Air Compressor 410KW Cummins



Product Description



S125D diesel high - pressure air compressor is a piece of equipment specially designed for high - demand drilling operations such as water well drilling, high - rise building foundation construction and geothermal development. In the face of fierce market competition, this model provides a pressure of up to 30bar in response to customer demand for more efficient drilling rig air source equipment, ensuring greater supply capacity and more efficient drilling performance.



Product Specifications



Name Unit S125D Diesel screw air compressor
Nominal displacement m³/min 36
Rated discharge pressure Bar 30
Screw machine oil volume L 120
Compressed series step 2
Engine type Tin firewood QSZ13-C550-30
Engine output kw 410 cummins engine
Fuel tank capacity L 600
Dimensions mm 4220*2000*2300
Total weight kg 5820
Air evacuation valve inch 1-G2” 1-G1”



Product Features



S125D diesel high - pressure air compressor is designed for demanding drilling operations and provides pressures up to 30bar. It focuses on fuel efficiency and energy conservation, and is equipped with an air filtration system with vacuum indication to ensure clean air is maintained in dusty environments. Optimized compressor oil and engine cooler improve equipment efficiency and extend engine life. High - efficiency oil filter and fuel filter with water separator maintain oil quality and fuel cleanliness. Additionally, one of the features of the S125D is an easily removable, transparent PE fuel tank, making it easy to quickly check fuel levels and keep the unit tidy.



Product Image



36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW 036m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW 136m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW 2

36m³/min Capacity Drilling Machine Air Compressor 30bar Working Pressure 410KW 3
