162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure

162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure

162KW Rotary Screw Air Compressor

18bar Rotary Screw Air Compressor

162KW Air Compressor Drilling Machine

Place of Origin:

China

Brand Name:

Zhigao

Certification:

CE, ISO 9001:2000

Model Number:

S60

Contact Us
Request A Quote
Product Details
Name:
Drilling Air Compressor
Model:
S60
Rated Exhaust Capacity:
18m³/min
Rated Exhaust Pressure:
18 Bar
Overall Volume:
3200*1670*2000
Overall Weight:
3000kg
Highlight:

162KW Rotary Screw Air Compressor

,

18bar Rotary Screw Air Compressor

,

162KW Air Compressor Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

18m³ / min Capacity 18bar Working Pressure Drilling Air Compressor 162KW Power



Product Description



S60 rotary screw compressor is the first choice for high quality compressed air, designed for a variety of industries that require reliable and efficient compressed air. It eliminates the complexity of traditional drivetrains, and the direct drive design reduces energy loss, improves efficiency, and reduces maintenance requirements. The addition of intelligent systems further improves energy efficiency and reduces costs while maintaining a low noise operating environment. The durability of this compressor is due to its high - quality construction and advanced filtration technology, ensuring long - term stable operation. The user - friendly design and ease of maintenance make the S60 an ideal choice for users looking for a cost - effective compressed air solution.



Product Specifications



Rated exhaust capacity (m³/min) 18
Rated exhaust pressure (Bar) 18
Diesel engine brand Yuchai
Engine model YC6J220-T300
Engine output power (KW) 162
Fuel tank volume (L) 220
Air end Single stage compressor
Overall volume (mm) 3200*1670*2000
Overall weight (kg) 3000
Discharge valve (inche) G1 G1-1/2



Product Features



The S60 air compressor is a powerful, efficient and safe compressed air solution with reinforced construction and smooth drag protection for harsh environments. The use of steel pipes and high - quality sealed pressure pipes, as well as patented air filtration units and stainless steel inlet pipes, ensure efficient filtration and equipment protection. The cooler design is modular, easy to maintain without pressure points, and easy to replace individual units. The controller interface is intuitive, easy to operate, with automatic preheating and pressure control, improve the safety and convenience of operation. Maintenance components are easy to access, equipped with toolbox, convenient and safe management. Electrical portable machine for enhanced safety, new cooler for increased efficiency, sound - absorbing cotton and rear muffler for low noise operation.

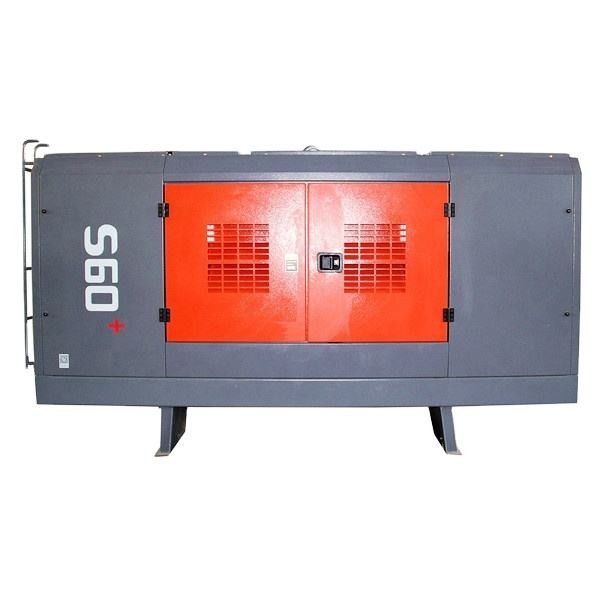

Product Image



162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure 0162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure 1162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure 2162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure 3

162KW Rotary Screw Air Compressor Drilling Machine 18bar Working Pressure 4
