25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor

25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor

Drilling Air Compressor 309KW

25bar Drilling Air Compressor

309KW Screw Type Air Compressor

Place of Origin:

China

Brand Name:

Zhigao

Certification:

CE, ISO 9001:2000

Model Number:

S100T

Contact Us
Request A Quote
25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor
25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor
Product Details
Name:
Drilling Air Compressor
Model:
S100T
Rated F.A.D:
31m³/min
Work Pressure:
25 Bar
Compressor Oil Capacity:
100L
Air Storage Tank Capacity:
160L
Highlight:

Drilling Air Compressor 309KW

,

25bar Drilling Air Compressor

,

309KW Screw Type Air Compressor

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling online Video

KAISHAN LGCY Diesel Small Screw Air Compressor for Mining and Water Well Drilling

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For 2.5-1.8 Mpa Pressure

Get Best Price
Good price 1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage online Video

1400kg Portable Diesel Screw Air Compressor 55KW For Single Compression Stage

Get Best Price
Good price 1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry online Video

1107CFM 25bBar Diesel Engine Screw Compressors Portable Air Compressors For Construction Work Mining Industry

Get Best Price
Contact Us
Contact Now
Product Description

31m³ / min Capacity 25bar Working Pressure Drilling Air Compressor 309KW Power



Product Description



S100T series screw air compressor is a professional equipment for water wells and geothermal projects that require Φ115 - 300mm well drilling rigs and related compressed air stations. The flexibility of a mobile air compressor is retained while being upgraded and optimized to meet the stringent requirements of continuous operation and transportation. This series of products is more durable and more fuel efficient, ensuring long-term stable operation and reducing operating costs.



Product Specifications



Model S100T
Desription Diesel screw air compressor
Rated F.A.D 31m³/min
Work pressure 25bar
Discharge air temperature 100℃
Compressor oil capacity 100L
Air Storage tank capacity 160L
Compression stage 2 stage
Transmission type Coupling direct driving
Cooling type Air cooled
Noise level 80±5 db
Engine maker Xichai
Model CA6DM2-42GAG31
Full load speed 1850rpm
Power output at rated speed 309kW
Cylinders 6 pcs



Product Features



S100T screw air compressor is specially designed for water well drilling projects. It has a flow rate of 31m³ / min and a working pressure of 25bar. It is equipped with a 309KW diesel engine to ensure high - performance air delivery and reliable power. Its rugged construction and ergonomic design ensure durability and ease of operation, while advanced features like efficient cooling and oil control systems enhance performance and reliability. Ideal for both shallow and deep water well drilling, the S100T combines functionality, durability and efficiency to make it the compressor of choice for water well drilling projects.

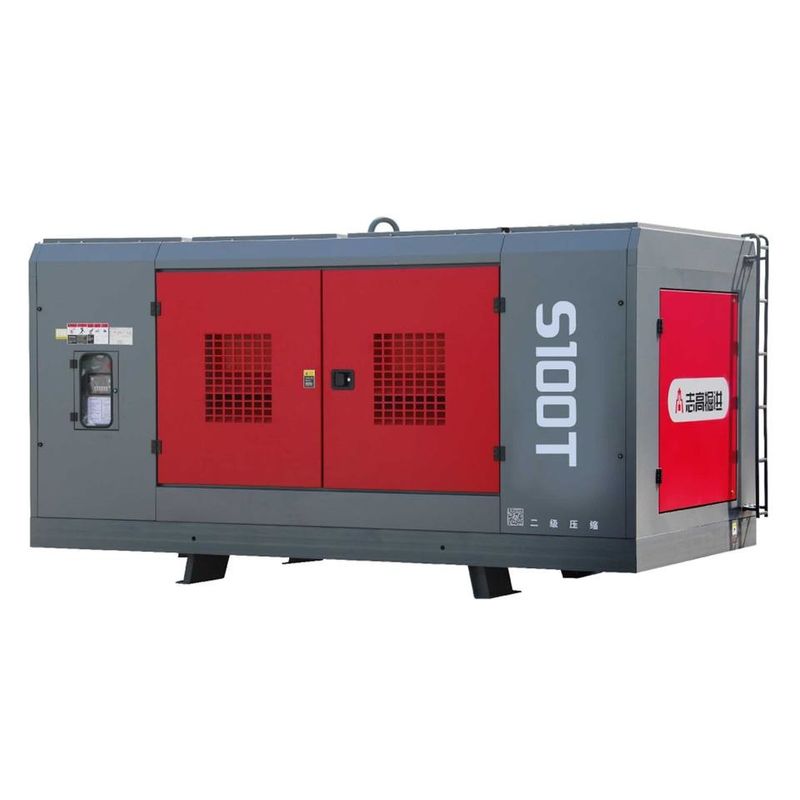

Product Image



25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor 025bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor 125bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor 225bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor 3

25bar Working Pressure Drilling Air Compressor 309KW Screw Type Air Compressor 4
