5.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke

5.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke

5.5KW Mud Pumps For Drilling Rigs

CE Mud Pumps For Drilling Rigs

90mm Stroke Drill Mud Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW160

Contact Us
Request A Quote
Product Details
Name:
Drilling Mud Pump
Model:
BW160
Cylinder Diameter:
95mm
Piston Stroke:
90mm
Overall Dimensions:
850X600X550mm
Weight:
130kg
Highlight:

5.5KW Mud Pumps For Drilling Rigs

,

CE Mud Pumps For Drilling Rigs

,

90mm Stroke Drill Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

95mm Cylinder Diameter 90mm Piston Stroke Drilling Mud Pump 5 . 5KW Power



Machine Introduction



Designed for drilling projects, the BW160 mud pump is a portable single - cylinder piston pump with a single - cylinder diesel engine that provides a flow rate of 160 L / min and a maximum pressure of 1 . 3MPa with constant first - gear operation. The pump is particularly suitable for use with small bore geological and engineering exploration RIGS for drilling up to 300 m deep. The BW160 mud pump is known for its small size and light weight, making it easy to operate and move. It is capable of transporting mud with sand content up to 5 % and other liquids in the pH range of 7 to 8. During core drilling, the pump circulates fluid, removes cuttings, lubricates drill bit and reduces wear, and is an indispensable key equipment in geological survey operations.



Technical Parameters



Model No. BW160
Cylinder diameter 95mm
Piston Stroke 90mm
frequency of stroke 147 times/min
Flow rate 160 L/min
Pressure 1.3 mpa
Power input 5.5 kW
Diameter of suction pipe 50mm
Diameter of discharge pipe 40mm
Overall dimensions (LxWxH) 850X600X550mm
Weight 130kg



Machine Advantages



The BW160 mud pump is unique not only in its efficient performance, but also in its precise design parameters. It has a piston diameter of 95 mm and a piston stroke of 90 mm, ensuring maximum efficiency on every stroke. Its frequency of up to 147 strokes per minute allows for faster fluid delivery. With a flow rate of 160 L / min and a maximum pressure of 1 . 3 mpa, the drilling requirements can be met. In addition, the BW160 mud pump has a power input of 5 . 5 kW, a suction pipe diameter of 50 mm, and a row pipe diameter of 40 mm, which are carefully designed to achieve the best working results. From geological exploration to engineering drilling, the BW160 mud pump can be your right hand man with its superior performance and precise design.

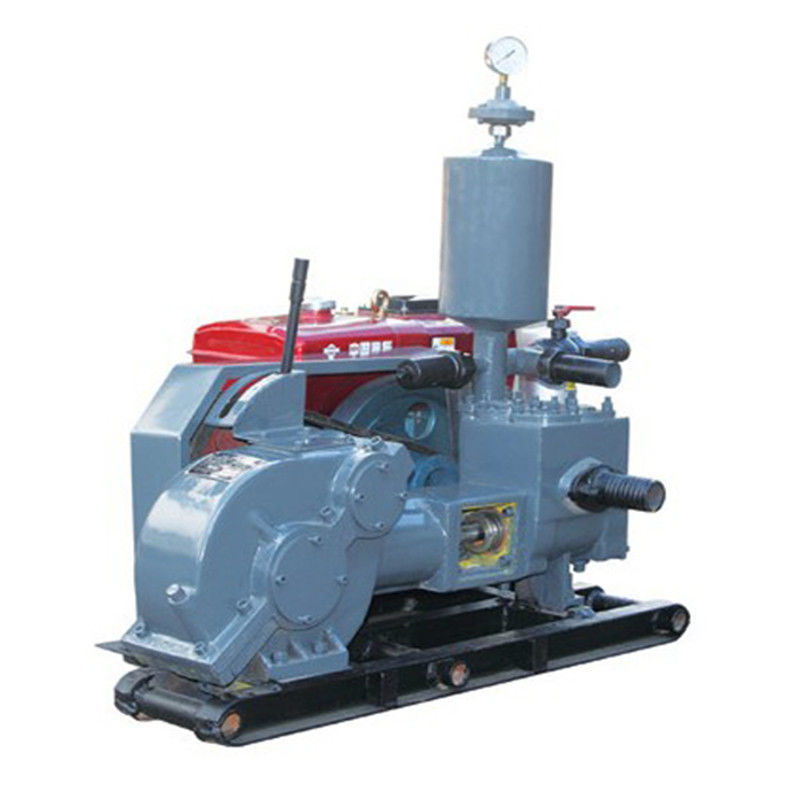

Machine Pictures



5.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke 05.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke 15.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke 2

5.5KW Mud Pumps For Drilling Rigs 95mm Cylinder Diameter 90mm Piston Stroke 3
