Name: 11KW Drilling Rig Mud Pump 85mm Piston Stroke Horizontal Mud Slurry Pump
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW200
Availability: InStock

Home > products > Drilling Mud Pump >

11KW Drilling Rig Mud Pump 85mm Piston Stroke Horizontal Mud Slurry Pump

11KW Drilling Rig Mud Pump

85mm Stroke Drilling Rig Mud Pump

horizontal mud slurry pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW200

Request A Quote

Product Details

Name:

Drilling Mud Pump

Model:

BW200

Cylinder Diameter:

80,65mm

Piston Stroke:

85mm

Overall Dimensions(L*W*H):

1050*630*820mm

Weight:

300kgs

Highlight:

11KW Drilling Rig Mud Pump

85mm Stroke Drilling Rig Mud Pump

horizontal mud slurry pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Video

BW1200 Double-cylinder Double-acting Piston Pump Two-speed Transmission Mud Pump

Get Best Price

Contact Now

Product Description

80 / 65mm Cylinder Diameter 85mm Piston Stroke Drilling Mud Pump 11KW Power

Machine Introduction

BW200 mud pump, a small, lightweight horizontal double cylinder double acting reciprocating piston pump, is especially suitable for well drilling and core drilling operations, especially in Wells requiring drilling depths of up to 200 meters and core drilling depths of up to 600 meters. The pump is designed with two types of crankshaft bushing and bearing to suit different working conditions and needs. The application of the BW200 mud pump is not limited to the supply of washing fluid, it is also efficient injection of cement slurry, especially suitable for heavy duty, complex rock cave drilling operations. This versatility ensures efficient operation in complex geological conditions, making the BW200 mud pump a reliable choice for drilling operations.

Technical Parameters

Model	BW200
Type	horizontal type two cylinder double action pump
Cylinder diameter	80,65mm
Piston stroke	85mm
Frequency of stroke	145 times/min
Flow rate	200;125 l/min
Working pressure	40;60(kg/cm)
Transmission power	11KW
Diameter of discharge pipe	37mm
Diameter of suction pipe	65mm
Overall dimensions(LWH)	1050630820mm
Weight	300kgs

Machine Advantages

BW200 grouting pump, excellent horizontal double cylinder double action design, cylinder diameter differentiation, long piston stroke, high stroke frequency, to ensure efficient and stable output. Adjustable flow to meet diverse needs, stable working pressure, adapt to various working conditions. Strong transmission power, smooth fluid flow, reduce clogging wear. Widely used in geological drilling, water conservancy, construction, tunnel and other fields, grouting mud lifting effect is excellent,engineering project right - hand.

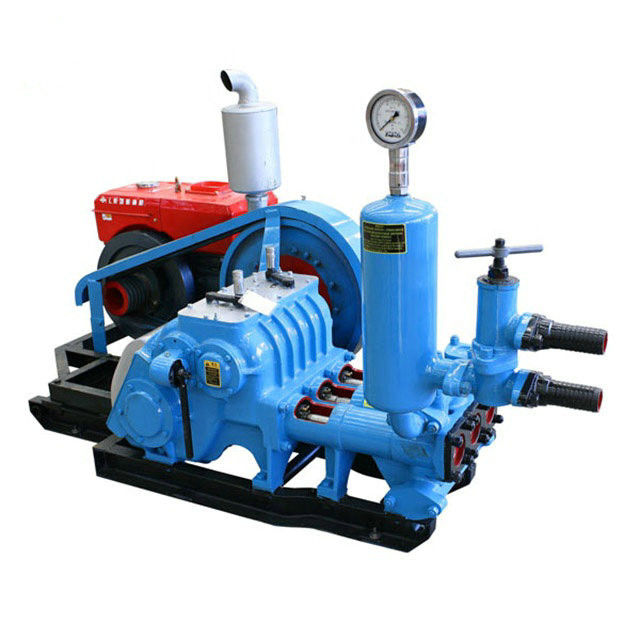

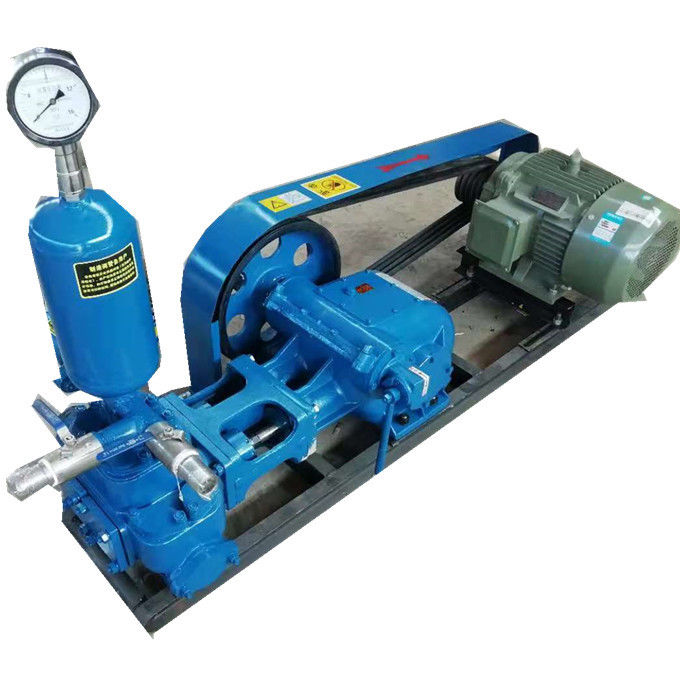

Machine Pictures
