Name: 100mm Piston Stroke Drilling Mud Pump 15KW Power 80 / 65mm Cylinder Diameter
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW250
Availability: InStock

Home > products > Drilling Mud Pump >

100mm Piston Stroke Drilling Mud Pump 15KW Power 80 / 65mm Cylinder Diameter

Drilling Mud Pump 15KW

100mm Stroke Drilling Mud Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW250

Request A Quote

Product Details

Name:

Drilling Mud Pump

Model:

BW250

Cylinder Diameter:

80/65mm

Stroke:

100mm

Overall Dimensions(L*W*H):

1100*995*650mm

Weight:

760kg

Highlight:

Drilling Mud Pump 15KW

100mm Stroke Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price

Video

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Contact Now

Product Description

80 / 65mm Cylinder Diameter 100mm Piston Stroke Drilling Mud Pump 15KW Power

Machine Introduction

BW250 mud pump is a multifunctional piston pump specially designed for water well drilling and drilling projects to provide efficient flushing fluid supply. The pump has a three - cylinder double - acting system and four - speed transmission, capable of achieving a flow rate of 250 liters / minute and a maximum pressure of 6MPa. It is suitable for core drilling, drilling operations and can handle thick mud. The lightweight design makes it suitable for transportation in mountainous areas, and the displacement and hole depth can be adjusted to meet different operation needs, including cement grouting. BW250 mud pumps are widely used in exploration, geological survey, transportation, water conservancy, tunnels and building foundations.

Technical Parameters

Type	250L Large Output Mine Horizontal triplex drilling mud pump
Stroke	100mm
Cylinder diameter	80/65mm
Handle position	1	2	3	4	1	2	3	4
Pump Speed(s.pm)	200	116	74	42	200	116	72	42
Output volume(l.pm)	250	145	90	52	166	96	60	35
Discharge pressure(Mpa)	2.5	4.5	6	6	4	6	7	7
Volumetric efficiency	85%
Total efficiency	72%
input power	15KW
Multiple grooved pulley D.P.	B*410mm
Input speed of pump (rpm)	500r/min
Max. suction head	2.5m
Inside diameter of suction hose	76mm
Inside diameter of discharge	51mm
Weight	760KG
Overall dimensions(LWH)	1100995650mm

Machine Advantages

BW250 mud pump is specially designed for geological core drilling. It can efficiently transport flushing fluid to the borehole. It is also suitable for grouting, mine drainage and liquid transportation. The pump is equipped with four levels of flow pressure and adjustable cylinder liner diameter to flexibly match vertical shaft drilling rigs. The piston connecting rod is sealed and durable, and the three - stage design is easy to disassemble and maintain. It is suitable for drilling water wells of 200 - 300 meters, and is an efficient and reliable choice for drilling operations.

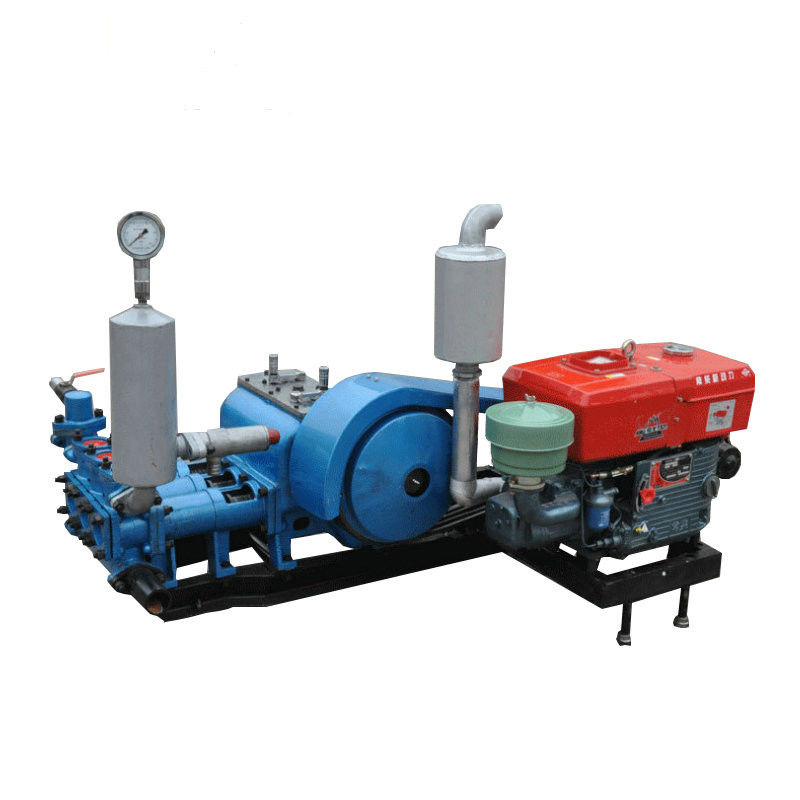

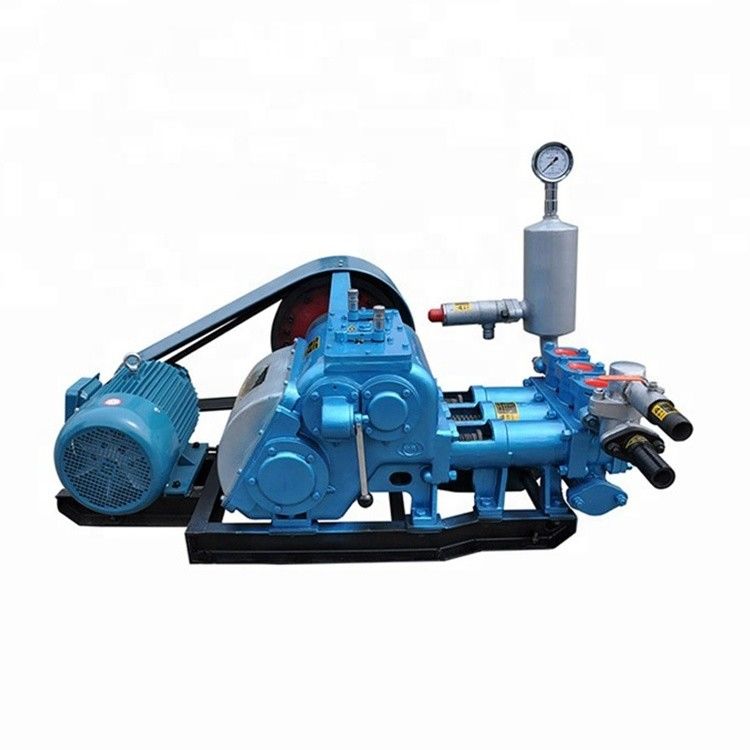

Machine Pictures
