100mm Piston Stroke Drilling Mud Pump 28HP 95mm Cylinder Diameter

95mm Cylinder Diameter 100mm Piston Stroke Drilling Mud Pump Changchai 28HP

Machine Introduction

BW450 / 5 diesel engine mud pump is a powerful and durable device designed for deep well drilling, with a displacement of 450 litres per minute and a maximum operating pressure of 5 mpa, powered by a 28 HP diesel engine. This horizontal three - cylinder reciprocating single - action mud pump is designed to provide flushing fluids for core drilling or hole drilling. It can discharge clean water and thick mud. Because of its small size and light weight, it is particularly suitable for mountain transport. With three holes and four speeds, the BW450 / 5 mud pump can adjust the displacement and hole depth according to the actual needs, and is also suitable for cement filling. The mud pump is widely used in exploration, geological survey, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction drilling, as well as coal exploration, ore exploration, small bore well drilling, ground source heat pump geothermal pipeline installation and small diameter hole foundation pile drilling and other fields.

Technical Parameters

Machine Advantages

BW450 / 5 mud pump plays an integral role in geological exploration, focusing on providing the necessary mud or water supply for core drilling and hole drilling to ensure the efficiency and safety of drilling operations. The core function of the pump is to remove cuttings from the bottom of the hole during the drilling cycle, keep the bottom of the hole clean, and provide the necessary cooling and lubrication for the bit and drill tool to improve the quality of the drilling job and the life of the drill tool. The BW450 / 5 mud pump is versatile and can operate efficiently in a variety of geological environments, especially for drilling depths of up to 1500 m. Therefore, it has become an indispensable and important supporting equipment in the rig system.

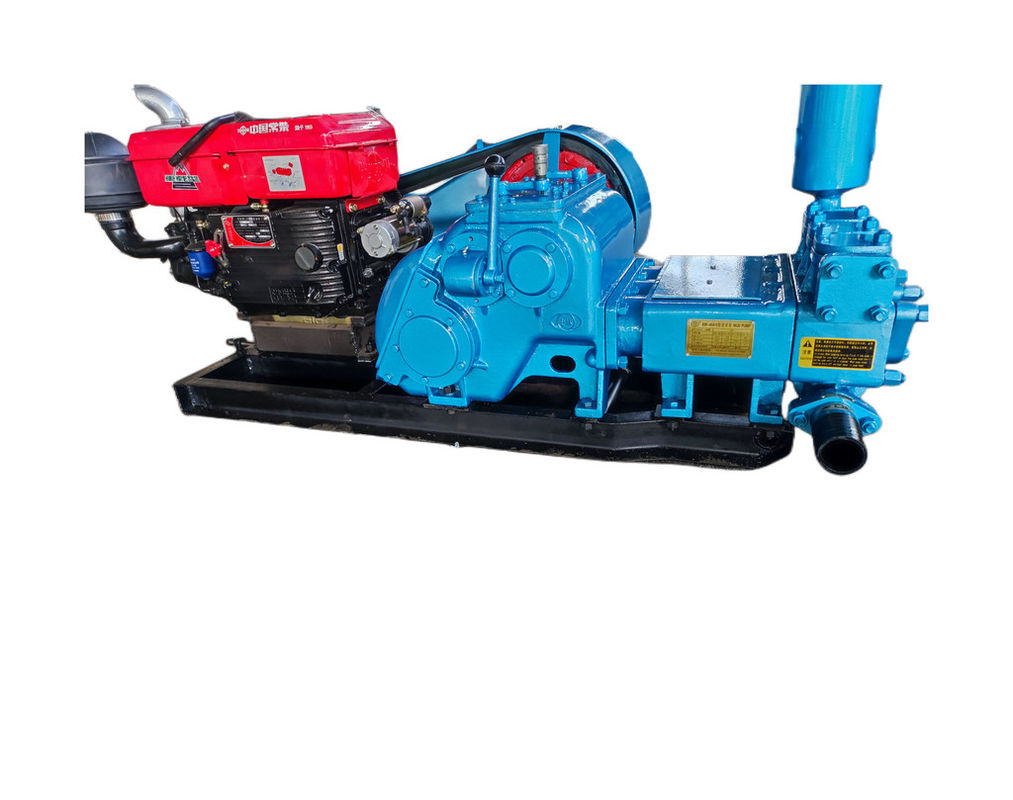

Machine Pictures
