Name: Multi Functional Drilling Mud Pump 90KW Power 66mm Stroke 260mm Cylinder Diameter
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW850/5
Availability: InStock

Home > products > Drilling Mud Pump >

Multi Functional Drilling Mud Pump 90KW Power 66mm Stroke 260mm Cylinder Diameter

Drilling Mud Pump 90KW

Multi Functional Drilling Mud Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW850/5

Request A Quote

Product Details

Name:

Drilling Mud Pump

Model:

BW850/5

Cylinder Diameter:

260mm

Piston Stroke:

66mm

Overall Dimensions:

3018x1120x2050mm

Weight:

3100kg

Highlight:

Drilling Mud Pump 90KW

Multi Functional Drilling Mud Pump

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

BW1200/7 Plunger Mud Pump For 1000-Meter Deep Water Well Drilling

Get Best Price

Video

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Contact Now

Product Description

260mm Cylinder Diameter 66mm Stroke Drilling Mud Pump 90KW Power Input

Machine Introduction

BW850 mud pump is a multi - functional pumping equipment, specially designed for irrigation agricultural machinery, water well drilling, borehole drilling, core drilling and anchor drilling and other projects. Its core advantages are outstanding high - pressure performance and powerful lifting capacity while maintaining low energy consumption, easy operation, high quality and durability. It is particularly worth mentioning that the BW850 mud pump is perfectly adapted to the complex environment of mountain terrace irrigation and has demonstrated excellent performance. In the field of geological survey, it is a key equipment, providing stable mud or water circulation for core drilling operations, efficiently removing cuttings, keeping the bottom of the hole clean, and extending the service life of drill bits and drilling tools through cooling and lubrication, significantly improving drilling operations. efficiency.

Technical Parameters

Model No.	BW160	BW200	BW250	BW450/5	BW600/10	BW850/5
Type	Horizontal single cylinder double-action reciprocating piston pump	horizontal type single-cylinder double-acting pump	horizontal triplex Reciprocating single-acting piston pump	Horizontal three-cylinder reciprocating single-acting piston pump	Horizontal three-cylinder reciprocating single-acting piston pump	Horizontal double cylinder reciprocating double-action piston pump
Cylinder diameter mm	95	80/65	86/65	95	100	260
Piston Stroke mm	90	85	100	100	110	66
frequency of stroke times/min	147	145	200/116/72/42	223/168/112/86	232/162/109/76	140/130/95
Flow rate L/min	160	200/125	250/145/90	450/340/240/172	600/415/280/195	850/600/350
Pressure mpa	1.3	4；6	2.5/4,5/6/6 4/6/7/7	2/3/4/5	3.5/5/7.5/10	5/6/8
Power input	5.5	15	15kw	22	55	90
Overall dimensions (LxWxH) mm	850 x 600 x 450	1050X630X820	1000x995x650	1000X995X650	1500X890X1230	3018x1120x2050
Weight kg	130	300	760	520	1400	3100

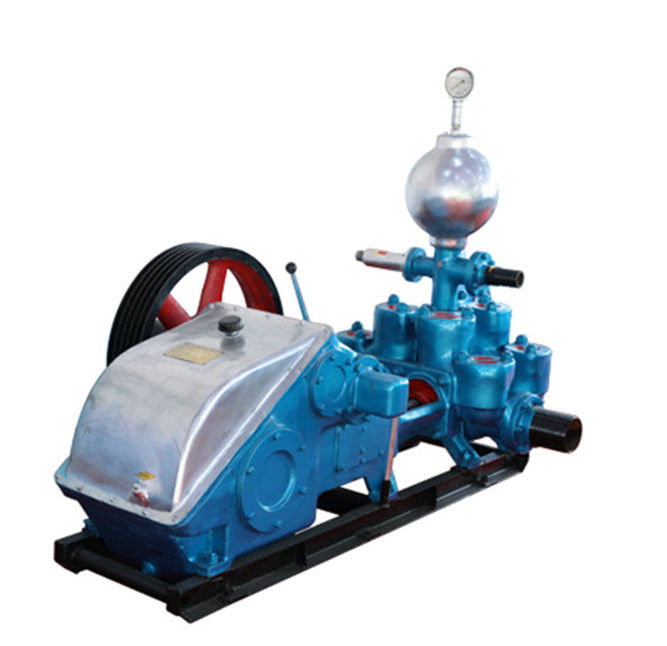

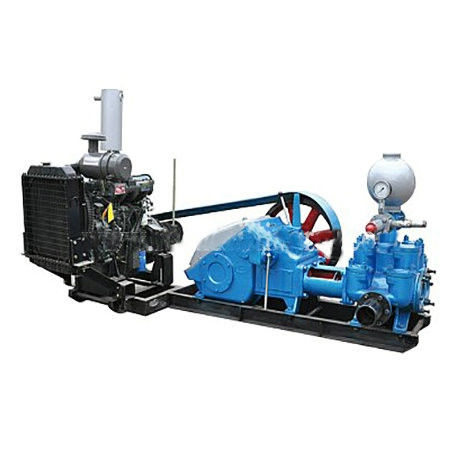

Machine Pictures

Multi Functional Drilling Mud Pump 90KW Power 66mm Stroke 260mm Cylinder Diameter 0
