Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges

Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges

Geophysical Survey Machine 150m

Geophysical Survey Machine 30m

300m Water Level Gauges

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

Water Level

Contact Us
Request A Quote
Product Details
Name:
Geophysical Survey Equipment
Model:
30/50/100/150/200/300/500 Water Level
Drilling Depth:
30m/50m/150m/200m/300m/500m
Min Reading:
1
Highlight:

Geophysical Survey Machine 150m

,

Geophysical Survey Machine 30m

,

300m Water Level Gauges

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

30 / 50 / 100 / 150 / 200 / 300 / 500m Water Level Geophysical Survey Equipment



Product Description



Water level gauges are a key water management tool that plays an important role in several fields, including water engineering, agriculture, aquaculture and urban water supply and drainage. Accurate water level information provided by these tools is critical to effectively managing water resources, preventing flooding and ensuring infrastructure security.



Product Specifications



Model 30 50 100 150 200 300 500
Measuring depth 0-30 0-50 0-100 0-150 0-200 0-300 0-500
Min reading 1
Repetitive reading +- 2
Worre pressure V DC=9
Weight Kg 3.5 4.5 6.5 10 12.5 17.5 27.5



The Methods of Water Level Measurement



Visual observation : Use a simple tool, such as a ruler or rope, to measure the water level by direct observation.



Mechanical measurement : Mechanical devices such as buoys or water level gauges are used to sense water level changes.



Electronic measurement : Using radar or ultrasonic technology, electronic sensors are used to accurately measure water levels.



Unique features of steel gauge



Construction : The use of steel wire or steel strip as the measuring medium, through the resistance change to determine the

water level.



Durability : The steel provides excellent tensile strength and corrosion resistance, suitable for extreme environments.



Accuracy : Can provide high precision water level reading.



Improved features of the upgraded steel scale water level gauge



Material upgrade : Stainless steel cable is used to improve the corrosion resistance and mechanical strength of the product.



Sensitivity adjustment : Allows sensitivity to be adjusted to accommodate measurements of different water quality and low conductivity liquids.



Scope of application : It is especially suitable for groundwater level observation and manual inspection of soil and rock dam seepage line.



Compliance : Comply with the Technical Specification for Safety Monitoring of earth - rock DAMS (SL60 - 94) to ensure reliability and compliance.



In summary, the steel gauge, especially the upgraded version, provides an accurate, reliable and durable water level monitoring solution for hydraulic engineering.

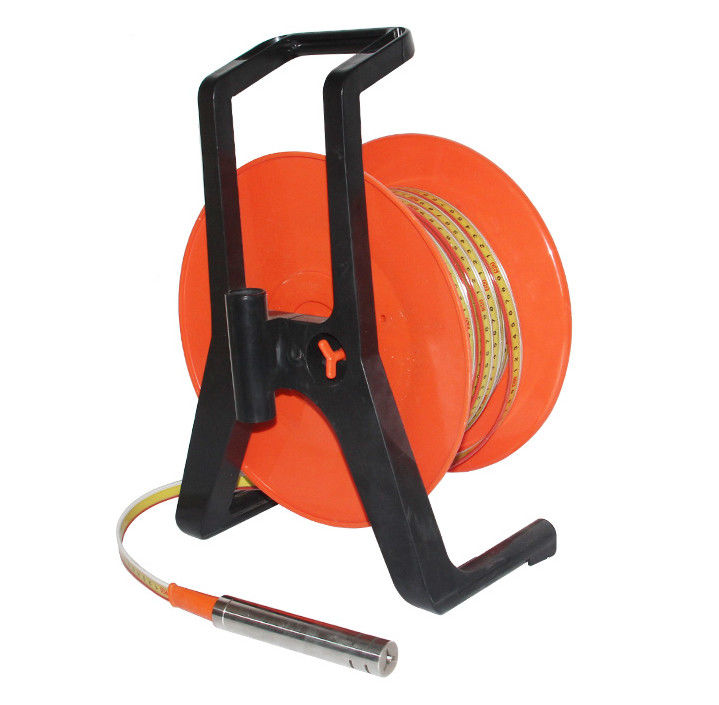

The water level change reading system consists of an underground material embedded part and a ground receiving instrument. It is exquisitely designed and easy to operate. The probe is made of high - quality stainless steel and has built - in highly sensitive water - resistant contact points to ensure accurate detection. The steel ruler cable cleverly combines the steel ruler and wires to prevent the steel ruler from rusting, simplify the operation process, and make readings more convenient and accurate. The receiving system integrates a speaker, indicator light and peak indicator, which can assist judgment in noisy environments. When using, simply rotate the spool, press the power button, and slowly insert the probe. In terms of maintenance, replace the battery regularly, clean the probe and steel ruler cable, and store them properly. In case of failure, please contact professional maintenance in time.



Product Image



Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges 0Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges 1Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges 2Accurate Geophysical Survey Machine 30 / 50 / 100 / 150 / 300m Water Level Gauges 3
