Name: 140mm - 350mm Aperture Water Well Drilling Rig 24T Lifting Force 350m Bore Depth
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF350T Truck Mounted Water Drilling Rig
Availability: InStock

Home > products > Water Well Drilling Rig >

140mm - 350mm Aperture Water Well Drilling Rig 24T Lifting Force 350m Bore Depth

water well drilling rig 24t

140mm water drilling rig

140mm water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350T Truck Mounted Water Drilling Rig

Request A Quote

Product Details

Name:

Water Well Drilling Rig

Model:

RCF350T Truck Mounted Water Drilling Rig

Bore Depth:

350m

Aperture:

140-350mm

Overall Dimension:

10600*2500*3550mm

Over Weight:

23000kgs

Highlight:

water well drilling rig 24t

140mm water drilling rig

140mm water well drilling rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by ro-ro ship

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price

Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price

Video

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Get Best Price

Video

300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine

Get Best Price

Contact Now

Product Description

350m Bore Depth 140 - 350mm Aperture Water Well Drilling Rig 24T Lifting Force

Machine Introduction

RCF350T is a multifunctional truck-mounted drilling rig with a drilling depth of 350 meters and a drilling diameter of 140-350 mm. Its unique rotating head design allows it to use both an air compressor and a mud pump, making it suitable for a variety of drilling tasks. The drilling rig and the car chassis share the same engine, providing a stable working environment. It is particularly suitable for drilling deep wells, geothermal and irrigation wells and can be customized as required.

Technical Parameters

Model	RCF350T Truck Mounted Water Drilling Rig
Dimension	1060025003550mm
Weight	23000kgs
Aperture	140-350mm
Drilling depth	350M
Feed stroke	6600mm
Travel speed	80Km/h
Grade ability	30°
Wind pressure	1.7-3.0Mpa
Air consumption	15-35m3/min
Drill pipe diameter	φ89/ 102mm
Drill pipe length	3.0/6.0m
Lifting force	24T
Rotary speed	45-115RPM
Rotation torque	6200-9000N.m
Mud pump	BW450
Carrying vehicle	HOWO truck
Load vehicle engine	266 HP
Driving form	6X4
Steering wheel	Right position (optional item )

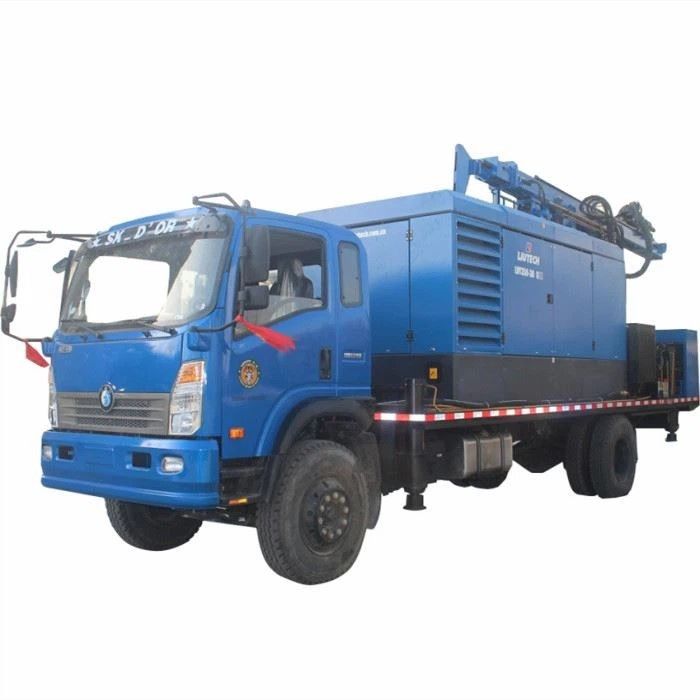

Machine Pictures

140mm - 350mm Aperture Water Well Drilling Rig 24T Lifting Force 350m Bore Depth 0
