Name: 129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF450T Truck Mounted Deep Well Drilling Machine
Availability: InStock

Home > products > Water Well Drilling Rig >

129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia

water well drilling rig machine 450m

129hp water well drilling rig machine

129hp water well drilling rig equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF450T Truck Mounted Deep Well Drilling Machine

Request A Quote

Product Details

Name:

Water Well Drilling Rig

Model:

RCF450T Truck Mounted Deep Well Drilling Machine

The Drilling Depth:

450m

Drilling Aperture:

500mm

The Shape Size:

11300×2500×4100mm

The Whole Machine Weight:

20T

Highlight:

water well drilling rig machine 450m

129hp water well drilling rig machine

129hp water well drilling rig equipment

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by ro-ro ship

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Full Hydraulic Water Well Drill Machine Bore Hole 500m Deep Truck Mounted Water Well Drill Rig

Get Best Price

Video

280m 6X4 Depth Dongfeng Truck Mounted Water Well Drilling Rig

Get Best Price

Video

200m Deep Water Well Drill Rig With 118HP Cummins For 115-350mm Bore

Get Best Price

Video

300m Deep Borehole Drilling Rig Truck Mounted Water Well Drilling Rig Machine

Get Best Price

Contact Now

Product Description

450m Drilling Depth 500mm Diameter Water Well Drilling Rig 129HP Diesel Engine

Machine Introduction

The RC450T truck - mounted deep well drilling rig is a rotary table - type deep well water drilling equipment, suitable for water wells, electric drilling and coring, geothermal wells, geological exploration, etc. It is based on the HOWO 6X6 or 6X4 special lifting chassis and is equipped with main drive, gearbox, dual hydraulic winches, mud pump, rotary table and tower. It adopts directional circulation drilling technology and is equipped with BW900 / 25 mud pump, which is suitable for soft soil, sand and rock. Power is transmitted from the engine to the PTO to drive the drilling rig. Optional diesel or electric engine, hydraulic pressurization device improves drilling efficiency. The drilling rig is easy to operate and has high reliability.

Technical Parameters

The shape size	11300×2500×4100mm

The whole machine weight	20T
Drilling aperture	500mm
The drilling depth	450m
Kelly	108×108×7500mm
Hole drill pipe	φ89
Drill chassis parts	Chassis: HOWO 6×6 or 6×4
The mast section	MODEL: Truss type
	Load:40T
	Height:11M Hook load:16T
Power part	WP6D132E:120KW
Mud Pump	MODEL	BW900/25
	Maximum pressure	3 MPa
	Maximum pump discharge	900L/min
	Required power	37 Horsepower
	Suction pipe diameter	Φ101.6 mm
	Diameter of the drain pipe	Φ76.2mm
Rotary table gearbox	Output speed (r/min) Ⅰ Ⅱ Ⅲ IV V reversal 33 59 97 159 253 27
Main hoist	Single rope tension: 4T Drum diameter: φ280mm Wire rope diameter: Φ17.5mm Rope capacity: 80m
Bailing	Single rope tension: 4T Drum diameter: φ280mm wire rope diameter: Φ17.5MM rope capacity: 80m
Tool lifting	Single rope tension: 1T Rope capacity: 45m
Control panel	The hydraulic auxiliary operation, the source of power for hydraulic pump, convenient and efficient
Rotary table	Rotary table through-hole diameter (mm) Φ505
The rig can be installed 30KW generator	After the installation of the generator can be used for electric welding, lighting, and other useful life.

Machine Pictures

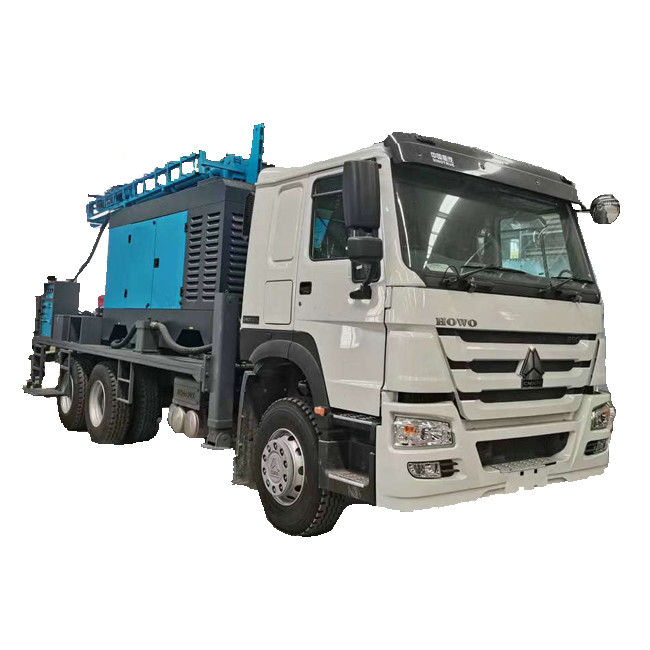

129HP Diesel Engine Water Well Drilling Rig Machine 450m Drilling Depth 500mm Dia 0
