300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia

300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia

water well drilling rig 266hp

300m water drilling rig

300m water well drilling rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC300T Truck Mounted Water Well Drilling Rig

Contact Us
Request A Quote
Product Details
Name:
Water Well Drilling Rig
Model:
RC300T Truck Mounted Water Well Drilling Rig
Boreg Depth:
300m
Bore Diameter:
115-350mm
Dimension(L*W*H):
6500*2100*2600mm
Weight:
8700kgs
Highlight:

water well drilling rig 266hp

,

300m water drilling rig

,

300m water well drilling rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by ro-ro ship
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300m Depth 115 - 350mm Dia Water Well Drilling Rig 266HP Load Vehicle Engine

Machine Introduction


The RC300T 300 - meter truck - mounted water well drilling rig is an efficient and convenient drilling rig that is widely used in water well drilling, geothermal air conditioning well drilling, mineral exploration, geological exploration, engineering exploration and other fields.

Technical Parameters

Drilling type Mud pump drilling and air DTH drilling
Geology drilled All kind
Drill system and operation Hydraulic
Bore diameter(mm) 115-350
Bore depth(m) 300
Walk speed(km/h) 0-2.5
For rock(F) 6-20
Air pressure(Mpa) 1.05-3.5
Air consumption(m³/min) 16-40
Once promotion(mm) 3600
Skid max angle(°) 90
Maximum height from the ground(mm) 320
Rotation Speed(r/min) 0-110
Rotation torque(NM) 5600
Lifting power(T) 15
Lifting speed(m/min) 27
Climb ability(°) 25
Dimension(L*W*H)(mm) 6500*2100*2600
Weight(KGS) 8700


Machine Advantages


1 . Strong portability : The 300 - meter truck - mounted water well drilling rig is small in size and light in weight, making it easy to move to the drilling site quickly without the need to carry large equipment. It is simple to operate and greatly reduces manpower and material costs.

2 . High efficiency and stability : Using advanced hydraulic technology, the drilling speed is fast and the stability is high. It can complete the operation quickly and efficiently. The working efficiency is much higher than that of traditional drilling equipment, which greatly saves time and cost.

3 . Deep drilling capability : The maximum drilling depth of the 300 - meter truck - mounted water well drilling rig can reach 300 meters, which can meet most drilling needs and can detect and detect in depth.

4 . Strong adaptability : The 300 - meter truck - mounted water well drilling rig is suitable for different types and densities of formations, and can complete drilling of mudstone, sandstone, volcanic rock, granite and other formations. Through real - time drilling data feedback and analysis by on - site technicians, it can make timely adjustments Drilling equipment to improve work quality.

5 . Multi - function : The drilling rig can not only complete drilling, sampling and other functions, but also perform tasks such as water source detection and geothermal energy detection. It is a high - tech drilling rig with multiple functions.

6 . Economical and practical : The price of the 300 - meter truck - mounted water well drilling rig is relatively affordable, which not only reduces equipment purchase costs, but also reduces labor operating costs. At the same time, it can complete detection tasks efficiently, making it an economical and practical drilling rig.

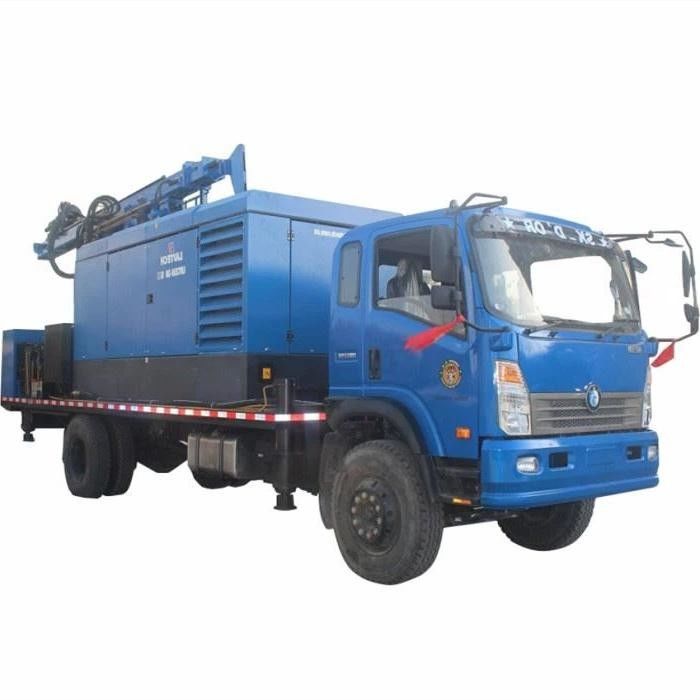

Machine Pictures

300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia 0300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia 1300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia 2300m Depth Water Well Drilling Rig 266HP Load Vehicle Engine 115 - 350mm Dia 3
