crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length

crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length

portable water well drilling machine 150m

crawler type portable water well drilling machine

150m portable well drilling machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200C Portable Water Well Drilling Machine

Contact Us
Request A Quote
crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length
crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length
Product Details
Name:
Portable Water Well Drilling Machine
Model:
RCS200C Portable Water Well Drilling Machine
Bore Depth:
Max 150m
Rod Change Method:
Full Automatic Screw Thread
Highlight:

portable water well drilling machine 150m

,

crawler type portable water well drilling machine

,

150m portable well drilling machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine online Video

Drill Depth 100m Electric Portable Water Well Drilling Rig Main Machine With 22HP Engine

Get Best Price
Good price 150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig online Video

150m DTH Hydraulic Water Well Drilling Rig Machine Portable Pneumatic trailer Mounted Drilling Rig

Get Best Price
Good price Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale online Video

Small Hydraulic Drill Cylinder 160m Depth Water Digger Machine Crawler Mounted Water Well Drilling Rig For Sale

Get Best Price
Good price 100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load online Video

100m Deep Electric Portable Water Well Drilling Rig With 22 HP Engine 40kg Maximum Load

Get Best Price
Contact Us
Contact Now
Product Description

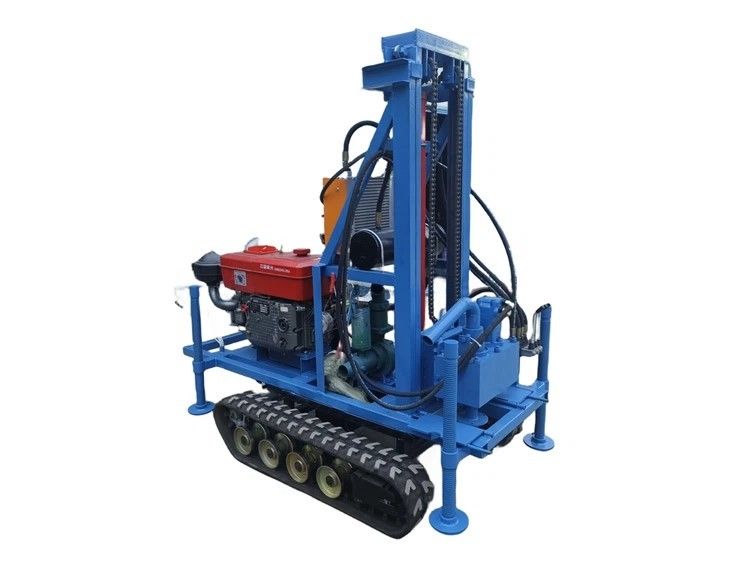

150m Depth 1500mm Drill Length Portable Water Well Drilling Machine with Crawler



Product Description



RCS200C crawler - type portable water well drilling rig, with rubber track design, is easy to move and easy to operate, and can be handled by one person. Suitable for drilling farm irrigation wells and domestic drinking water wells. The maximum drilling depth is 150 meters, the diameter is 100 - 450 mm, and it is equipped with a 22HP diesel engine and works efficiently. It is suitable for clay, sand, soft rock and other strata. It is sold well all over the country and is highly praised for its excellent quality.



Product Specifications



Model of drilling machine RCS200C
Walking way Rubber crawler mounted
Drilling machine overall dimension(mm) 2300*1080*2000
Weight of Drilling machine (kg) 1000
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22/16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500



Product Features



The RCS200C crawler - type water well drilling rig is convenient to move, easy to operate, and can be operated by one person without worries. Suitable for farm irrigation and household wells, with drilling depths up to 150 meters and diameters 100 - 450 mm. Equipped with a 22HP diesel engine for efficient operation. Adaptable to a variety of strata, sold well all over the country, with excellent quality and rave reviews.



Product Image



crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length 0

crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length 1

crawler type Portable Water Well Drilling Machine 150m Depth 1500mm Drill Length 2
