Product Description

150m Nominal Drill Depth Hydraulic Crawler RC Drilling Rig 1.2km / h Walk Speed

Product Description

The RCJ150RC drilling rig is a fully hydraulic crawler drilling rig that is good at drilling vertical or inclined holes and supports a variety of drilling technologies, such as auger drilling and down - the - hole hammer drilling. It is suitable for processing complex geology, such as soft layers and broken layers, so it is suitable for a variety of drilling projects, including RC drilling, water wells, geothermal holes and small foundation pile holes.

Product Specifications

Model		RCJ150RC
Drill rig weight(crawler mounted)	kg	9000
Engine Power	kW	125
Length × Width × Height (normal)	mm	6750x2200x2950
Ambient Temperature Range	°C	-10～38
Drill Ability
Nominal Drill Depth	m	150
End-hole Diameter	mm	110-250
Drill angle	°	-10-90
Horizontal hole height	m	1.85-2.8
Drill head output
Max Output Torque	N.m	8000
Output Rotation Speed(continuity)	rpm	30 / 60, 54/108rpm
Output Rotation Speed(interval)	rpm	62 / 124 105/210rpm
Feeding	mm	3500
Thrust Force	kN	45
Lifting Capacity	kN	65
Pipe-puller Device Output
Output Rotation Speed	rpm	40
Max Output Torque	N.m	30000
Hole-through Diameter	mm	370
Auxiliary Winch
Pull Force of the first Layer	kN	11
Rope Diameter	mm	14
Rope Capacity	m	60
Engine(Cummins)		6BTA5.9-C125
Power	kW	125
Rotary Speed (Max.)	rpm	2200
Track Chassis Base
Walk Speed	Km/h	1.2
Unit Pressure	MPa	＜0.05
Climb Ability	°	≯20

Product Features

The outstanding features of the RCJ150RC drilling rig include : wide rotation speed and large torque, strong adaptability, long stroke to improve efficiency, strong push and pull force to ensure operational stability, pipe pulling device to reduce labor intensity, crawler design to improve mobility, high-end hydraulic components and monitoring system to ensure reliability Flexible and low maintenance.

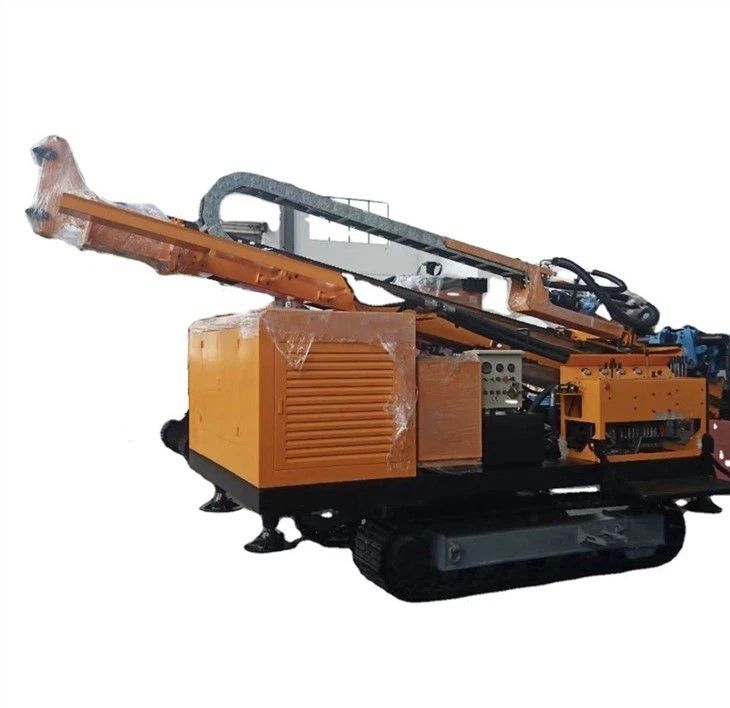

Product Image
