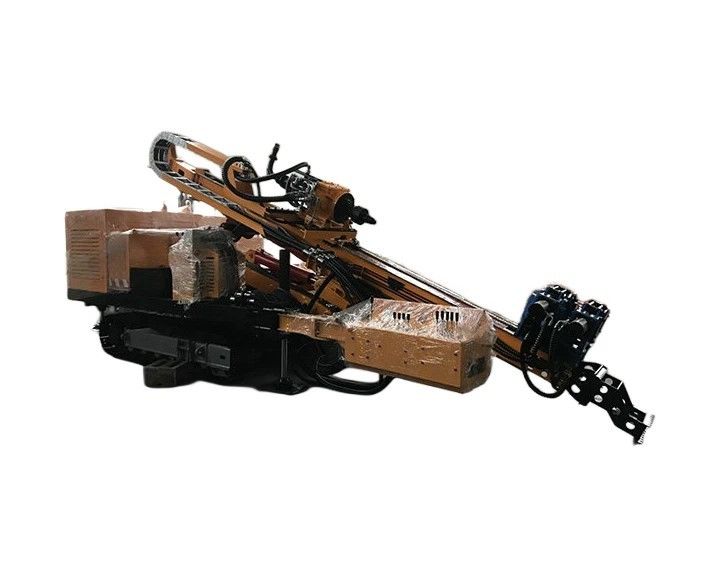

Hydraulic Remote Control RC Drilling Equipment 11KN Lift Force 180m Drill Depth

Hydraulic Remote Control RC Drilling Equipment 11KN Lift Force 180m Drill Depth

RC Drilling Equipment 11KN

Remote Control RC Drilling Equipment

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ180RC

Contact Us
Request A Quote
Product Details
Name:
RC Drilling Rig
Model Of Machine:
RCJ180RC
Inner Diameter Of Hose:
45mm
Lift Force:
11KN
Highlight:

RC Drilling Equipment 11KN

,

Remote Control RC Drilling Equipment

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

180m Nominal Drill Depth Hydraulic Crawler RC Drilling Rig 11KN Lift Force



Product Description



The RCJ180RC hydraulic remote control drilling rig is a high-performance fully hydraulic drilling equipment. With the precise control and high stability of the hydraulic system, it can effectively improve operating efficiency and reduce costs. This drilling rig can flexibly handle a variety of drilling methods, including auger drilling, down - the - hole impact drilling, and mud rotary drilling. It performs particularly well in deep - hole geothermal drilling. It also supports reverse circulation drilling and is suitable for various projects such as water wells and geothermal holes. Its efficient mud circulation capability ensures good borehole cleaning and facilitates geological sample analysis. Due to its versatility, efficient drilling performance and wide application, the RCJ180RC drilling rig has become an important tool in the fields of geology, hydrology, construction and geothermal development.



Product Specifications



Model   RCJ180RC
Drill rig weight(crawler mounted) kg 9500
Length × Width × Height (normal) mm 6350×2200×2950
Ambient Temperature Range °C -10~38
Nominal Drill Depth m 180
Drill Diameter mm 130~320
Drill Hole Angle Range ° -90~-5
Drill head output
Output Rotation Speed Low speed rpm 40/80
High speed rpm 70/140
Max Output Torque N.m 8500
Stroke of Power Head
Feeding mm 3500
Thrust Force kN 45
Lifting Capacity kN 65
Mast
Sliding Stroke mm 850
Oil Pump electric motor diesel
Output volume(big oil pump) ml/r 71 63
Output volume(mini oil pump) ml/r 28 25
Output volume(middle pump) ml/r 63 50
Hydraulic Oil L-HM46
Tank Capacity L 220
Nominal Filtration Particle Size μm 10
Max. Work Temperature °C 65
Engine drive type Y225S-4+Y250M-4 6BTA5.9
Power kW 37+55 132
Rotary Speed (Max.) rpm 1500 2200
Track Chassis Base PD135
Width of Pedrail mm 400
Unit Pressure MPa <0.05
Climb Ability ° ≤20
Air/Mud Hose Size
Ball Valve in 1+1/2
Inner Diameter of Hose mm 45
Winch(for choice)
Lift Force KN 11



Product Features



The RCJ180RC hydraulic remote control drilling rig combines powerful performance with high flexibility and is adaptable to various complex drilling scenarios. Thanks to its wide range of torque and speed adjustment, it is widely used in different fields. Its design highlights include long - stroke propulsion without the need for active drill pipes, which significantly reduces auxiliary time and improves drilling efficiency. It also provides strong push and pull forces to ensure efficient drilling under any geological conditions and can respond to unexpected situations. In order to improve operation convenience and mobility flexibility, the drilling rig is equipped with pipe pulling equipment and a crawler chassis to ensure free movement on complex construction sites. The key hydraulic components adopt the world's top technology products and cooperate with advanced monitoring systems to ensure that the overall equipment operates stably and has a low failure rate.



Product Image



Hydraulic Remote Control RC Drilling Equipment 11KN Lift Force 180m Drill Depth 0Hydraulic Remote Control RC Drilling Equipment 11KN Lift Force 180m Drill Depth 1Hydraulic Remote Control RC Drilling Equipment 11KN Lift Force 180m Drill Depth 2
