132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

132KW RC Drilling Rig

RC Drilling Rig 300m

Hydraulic Crawler Drilling Rig 2km/h

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ300RC

Contact Us
Request A Quote
132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed
132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed
Product Details
Name:
RC Drilling Rig
Model Of Machine:
RCJ300RC
Walk Speed:
2km/h
Rotary Speed:
Max 2200rpm
Highlight:

132KW RC Drilling Rig

,

RC Drilling Rig 300m

,

Hydraulic Crawler Drilling Rig 2km/h

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque online Video

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Get Best Price
Good price RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine online Video

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Get Best Price
Good price RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine online Video

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Get Best Price
Good price 132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed online Video

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

Get Best Price
Contact Us
Contact Now
Product Description

300m Drill Depth Hydraulic Crawler RC Drilling Rig 132KW Cummins Power



Product Description



The RCJ300RC hydraulic reverse circulation drilling rig is a fully hydraulically driven, high-performance drilling rig that uses a crawler chassis to achieve good stability and mobility, and can adapt to various complex geological environments. Control key components through precision hydraulic systems to improve efficiency, reduce costs, and ensure accurate and efficient drilling. The drilling rig can flexibly switch drilling modes to adapt to different geological conditions, and is equipped with ODEX down - the - hole hammer technology for deep hole drilling, especially for geothermal drilling.



Product Specifications



Model RCJ300RC
Drill rig weight(crawler mounted) kg 10000
Length × Width × Height (normal) mm 6750×2300×3000
Ambient Temperature Range °C -10～38
Drill Ability
Nominal Drill Depth m 300
End-hole Diameter mm 130-350
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 10000
Output Rotation Speed) rpm 55/ 110
Feeding mm 3500
Thrust Force kN 100
Lifting Capacity kN 150
Oil Pump
Output volume ml/r 63+63+25
winch
Lifting force KN 11
Hydraulic Oil
Tank Capacity L 220
Nominal Filtration Particle Size μm 10
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 2
Unit Pressure MPa ＜0.05
Climb Ability ° ≯30



Product Features



The RC hydraulic drilling rig adopts a fully hydraulic system, which eliminates the need for an active drill pipe, greatly increases drilling speed and reduces auxiliary time through large stroke feed. The powerful push - pull capability ensures effective drilling in various geological conditions and is equipped with the function of responding to emergencies. Equipped with a tie rod device to reduce labor intensity, the crawler chassis is designed to facilitate rapid movement. Key hydraulic parts adopt top technology or famous brand products, and cooperate with monitoring systems to ensure high reliability and low failure rate. This drilling rig supports a variety of drilling methods, such as dry auger drilling, DTH hammer drilling and mud circulation drilling, etc., and is suitable for drilling work under various geological conditions.



Product Image

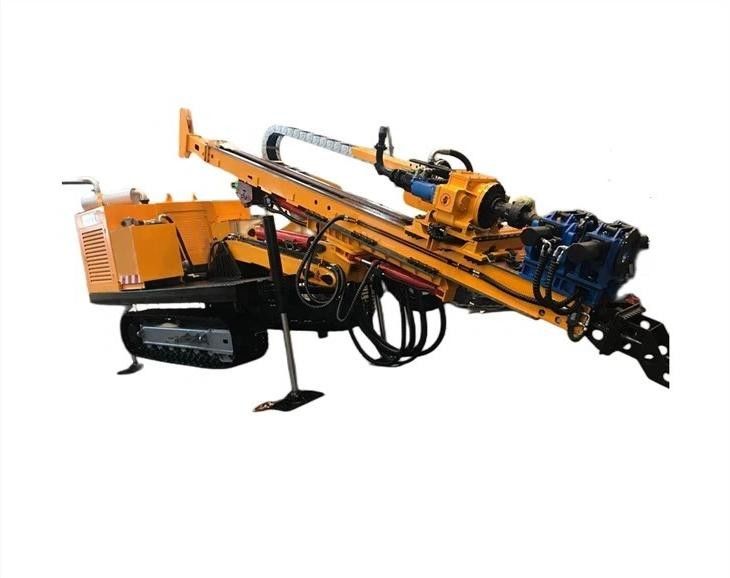

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 0132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 1132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 2132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed 3
