300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig

300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig

300m RC Drilling Machine

RC Drilling Machine 132KW

Hydraulic Reverse Circulation Drill Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCJ300RC

Contact Us
Request A Quote
300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig
300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig
Product Details
Name:
RC Drilling Rig
Model Of Machine:
RCJ300RC
Horizontal Hole Height:
1.85-2.8m
Feeding:
3500mm
Thrust Force:
100KN
Lifting Capacity:
150KN
Highlight:

300m RC Drilling Machine

,

RC Drilling Machine 132KW

,

Hydraulic Reverse Circulation Drill Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 40" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque online Video

RCJ150RC Hydraulic Engineer Drilling Rig For 125W Engine Power 8000N.M Max Output Torque

Get Best Price
Good price RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine online Video

RCJ150RC Hydraulic Engineer Drilling Rig 150m Drill Depth Crawler Type Hydraulic RC Drilling Machine

Get Best Price
Good price RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine online Video

RCJ500RC RC Drilling Machine Equipment Reverse Circulation Drilling Rig Equipment Machine

Get Best Price
Good price 132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed online Video

132KW Hydraulic Crawler RC Drilling Rig 300m Drill Depth 2km/h Walk Speed

Get Best Price
Contact Us
Contact Now
Product Description

300m Drill Depth 130 - 350mm Bore Dia RC Drilling Rig 132KW Cummins Power



Product Description



The RCJ300RC hydraulic reverse circulation drilling rig is a high - efficiency drilling equipment using a fully hydraulic power system. It uses a sturdy crawler chassis to ensure the stability and mobility of the equipment, allowing it to easily cope with various complex geological conditions. The rig controls key functional components through its precise hydraulic control system, thereby improving operating efficiency, reducing operating costs, and ensuring the accuracy and efficiency of drilling operations. This drill can easily switch between different drilling modes to adapt to changing geological conditions, and is equipped with advanced ODEX down - the - hole hammer technology. It is specially used for deep hole drilling operations and is especially suitable for the development of geothermal energy. drilling.



Product Specifications



Model RCJ300RC
Drill rig weight(crawler mounted) kg 10000
Length × Width × Height (normal) mm 6750×2300×3000
Ambient Temperature Range °C -10～38
Drill Ability
Nominal Drill Depth m 300
End-hole Diameter mm 130-350
Drill angle ° -10-90
Horizontal hole height m 1.85-2.8
Drill head output
Max Output Torque N.m 10000
Output Rotation Speed) rpm 55/ 110
Feeding mm 3500
Thrust Force kN 100
Lifting Capacity kN 150
Oil Pump
Output volume ml/r 63+63+25
winch
Lifting force KN 11
Hydraulic Oil
Tank Capacity L 220
Nominal Filtration Particle Size μm 10
Engine(Cummins) 6BTA5.9-C180
Power kW 132
Rotary Speed (Max.) rpm 2200
Track Chassis Base
Walk Speed Km/h 2
Unit Pressure MPa ＜0.05
Climb Ability ° ≯30



Product Features



The RC hydraulic drilling rig utilizes a full hydraulic system and long-stroke feed to increase drilling speed, reduce auxiliary time, and has strong push - pull capabilities to adapt to various geological conditions. The equipment is equipped with a drawbar device and a crawler chassis to simplify movement and operation. Key components adopt top technology, and the monitoring system ensures high reliability and low failure rate. Supports a variety of drilling methods and is suitable for different geological environments.

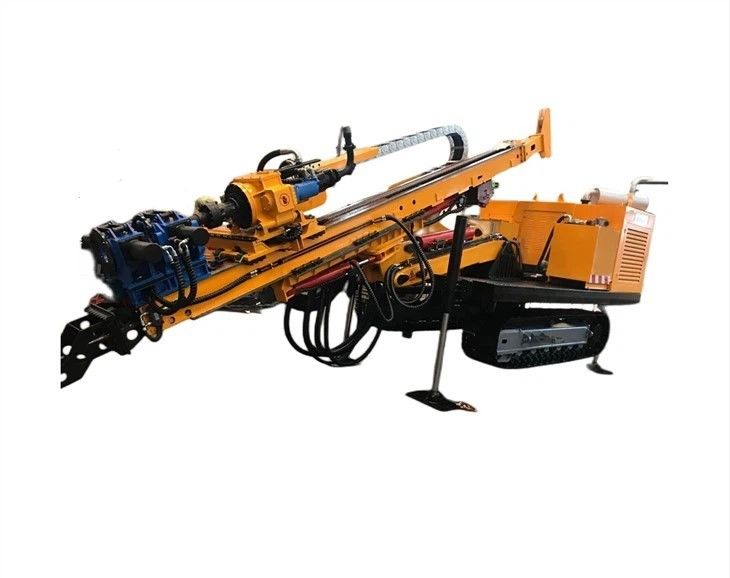

Product Image



300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig 0300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig 1

300m Drill Depth RC Drilling Machine 132KW Hydraulic Reverse Circulation Drill Rig 2
