Product Description

500m Drill Depth Hydraulic Crawler Blasthole RC Drilling Rig 132KW Cummins Power

Product Description

The RCJ500RC drilling rig is an advanced DTH drilling rig with high power torque and multiple speeds to adapt to efficient drilling under a wide range of geological conditions. The fully hydraulic drive ensures high performance, and the unique design eliminates the need for active drill pipes, reduces auxiliary time, and improves drilling efficiency. The drilling rig has strong push-pull force and is equipped with a drawbar device to reduce labor intensity. The crawler chassis design ensures high mobility and adaptability to the construction site. The world ' s top hydraulic components and monitoring systems are used to ensure system stability, reduce failure rates, and enhance overall reliability.

Product Specifications

Model			RCJ500RC
Drill rig weight(crawler mounted)		kg	12000
Engine Power		kW	132
Length × Width × Height (normal)		mm	7650x2250x3217
Ambient Temperature Range		°C	-10～38
Drill Ability
Nominal Drill Depth		m	500
End-hole Diameter		mm	150
Drill head output
Max Output Torque		N.m	12000
Output Rotation Speed(continuity)		rpm	30 / 60
) Output Rotation Speed(interval)		rpm	52 / 104
Feeding		mm	7000
Thrust Force		kN	100
Lifting Capacity		kN	160
Pipe-puller Device Output
Output Rotation Speed		rpm	40
Max Output Torque		N.m	30000
Hole-through Diameter		mm	370
Main Winch
Pull Force of the first Layer		kN	70
Rope Diameter		mm	19
Rope Capacity		m	80
Auxiliary Winch
Pull Force of the first Layer		kN	20
Rope Diameter		mm	14
Rope Capacity		m	60
Clamp Device Hole-through Diameter		mm	340
Oil Pump Output Volume		ml/r	87+63+25
Max Pressure		MPa	25
Tank Capacity		L	320
Engine(Cummins)			6BTA5.9-C180
Power		kW	132
Rotary Speed (Max.)		rpm	2200
Track Chassis Base
Walk Speed		Km/h	1.2
Unit Pressure		MPa	＜0.05
Climb Ability		度	≯20
Wire line core drilling unit head
Drilling depth	NQ	m	1200
	HQ	m	850
	PQ	m	600

Product Features

One of the major advantages of the RCJ500RC drilling rig is that it supports the application of a variety of drilling technologies, covering non - circulating liquid dry auger drilling, rock DTH hammer drilling, and sand and soil mud circulation drilling. This diversified drilling method gives the RCJ500RC drilling rig the ability to display its excellent drilling performance in a variety of geological conditions, allowing it to adapt to and meet the different drilling needs of various engineering projects. Therefore, it is recognized as a very Reliable high - end drilling equipment.

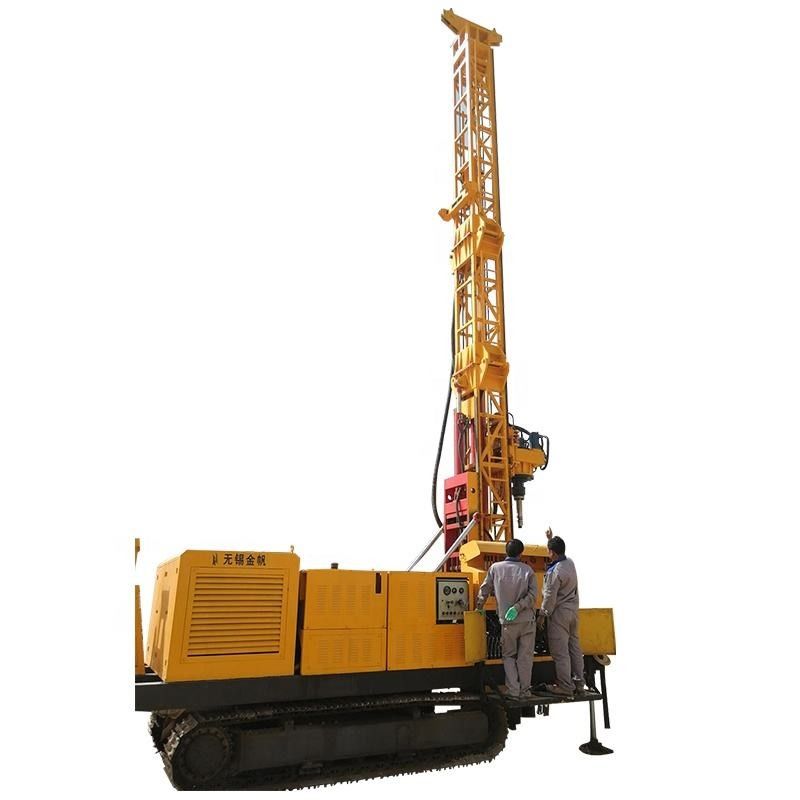

Product Image
