Product Description

500m Nominal Drill Depth Hydraulic Crawler RC Drilling Rig 132KW Cummins Power

Product Description

RCJ500RC is a high - performance DTH drilling rig that is adaptable to a variety of geological conditions. Its fully hydraulic drive improves efficiency and the active drill pipe - free design saves time. The equipment has strong push - pull force and is equipped with pull rods and crawler chassis to simplify operation and enhance mobility. Use top - quality hydraulic components and monitoring systems to ensure stability and reliability.

Product Specifications

Model			RCJ500RC
Drill rig weight(crawler mounted)		kg	12000
Engine Power		kW	132
Length × Width × Height (normal)		mm	7650x2250x3217
Ambient Temperature Range		°C	-10～38
Drill Ability
Nominal Drill Depth		m	500
End-hole Diameter		mm	150
Drill head output
Max Output Torque		N.m	12000
Output Rotation Speed(continuity)		rpm	30 / 60
) Output Rotation Speed(interval)		rpm	52 / 104
Feeding		mm	7000
Thrust Force		kN	100
Lifting Capacity		kN	160
Pipe-puller Device Output
Output Rotation Speed		rpm	40
Max Output Torque		N.m	30000
Hole-through Diameter		mm	370
Main Winch
Pull Force of the first Layer		kN	70
Rope Diameter		mm	19
Rope Capacity		m	80
Auxiliary Winch
Pull Force of the first Layer		kN	20
Rope Diameter		mm	14
Rope Capacity		m	60
Clamp Device Hole-through Diameter		mm	340
Oil Pump Output Volume		ml/r	87+63+25
Max Pressure		MPa	25
Tank Capacity		L	320
Engine(Cummins)			6BTA5.9-C180
Power		kW	132
Rotary Speed (Max.)		rpm	2200
Track Chassis Base
Walk Speed		Km/h	1.2
Unit Pressure		MPa	＜0.05
Climb Ability		度	≯20
Wire line core drilling unit head
Drilling depth	NQ	m	1200
	HQ	m	850
	PQ	m	600

Product Features

The distinctive feature of the RCJ500RC drilling rig is its compatibility with a variety of drilling technologies, including dry auger drilling with non - circulating liquid, DTH ( direct hole hammering ) drilling in rock formations, and mud circulation drilling in sandy soil layers. This multi - functional drilling capability enables the RCJ500RC drilling rig to demonstrate its excellent drilling performance under various geological conditions and meet the specific drilling requirements of different engineering projects. Therefore, it is widely regarded as a very reliable and advanced high - end drilling equipment.

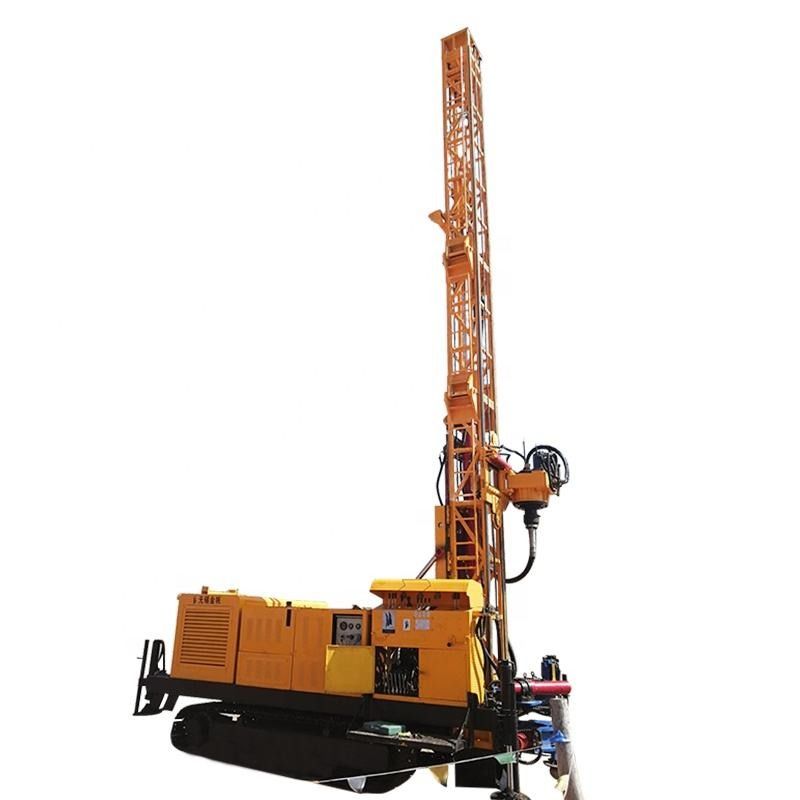

Product Image
