Name: 62KW Diesel Engine HDD Drilling Rig Remote Control Directional Drill Rig
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCHD-160
Availability: InStock

Home > products > HDD Drilling Rig >

62KW Diesel Engine HDD Drilling Rig Remote Control Directional Drill Rig

Diesel HDD Drilling Rig

62KW HDD Drilling Rig

Remote Control Directional Drill Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-160

Request A Quote

62KW Diesel Engine HDD Drilling Rig Remote Control Directional Drill Rig

Product Details

Name:

HDD Drilling Rig

Model:

RCHD-160 Directional Drill Rig

Water Injection System:

160 Type Three-cylinder Mud Pump

Pressure Of Mud Pump:

2.8MPa

Highlight:

Diesel HDD Drilling Rig

62KW HDD Drilling Rig

Remote Control Directional Drill Rig

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Drilling Depth 60-80m Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price

Video

60-80m Depth Small Hydraulic Thrust Boring Machine With 32HP Diesel Engine

Get Best Price

Video

60m Depth 32HP Diesel Engine Underground Horizontal Boring Machine Hdd Drilling Machine

Get Best Price

Video

150KGS Weight Small Directional Boring Machine For Trenchless Laying Of Various Pipelines

Get Best Price

Contact Now

Product Description

Remote Control Directional Drill Rig HDD Drilling Rig 62KW Diesel Engine

Product Description

The RCHD - 160 hydraulic directional drilling rig has become the preferred equipment for urban underground construction projects, specially built for the laying of underground pipes and cables. It can complete drilling tasks efficiently, accurately and economically while ensuring the safety of surface and underground facilities. The equipment's high - performance engine and advanced control system enable it to adapt to complex geological conditions and ensure high operating efficiency. Its user-friendly interface not only increases work efficiency but also reduces costs and environmental impact, making it ideal for utility pipe installations.

Product Specifications

Model	RCHD-160 Directional Drill Rig
Rig weight	2.2t
Dimensions (L×W×H)	370018001200mm
Engine power	62kw Thunder Power
Max. push & pull force	160KN/16T
Traveling form	Remote control
Walking speed	2km/h
Water injection system	160 type three-cylinder mud pump
Max. pressure of mud pump	2.8MPa
Max. flow of mud pump	160L/min
Entry angle	28°
Departure angle	20°
Climbing ability	35°
Torque	3200N.m

Product Features

RCHD - 160 small horizontal drilling rig, equipped with Weifan engine, high efficiency and durability. The angle of the boom is adjustable and suitable for various constructions. Rubber tracks and fast travel motors improve mobility. Remote wired control improves safety and operational visibility. The equipment is equipped with a high-pressure cast iron main pump and a high - quality mud pump to ensure performance and longevity. Compact design, suitable for urban underground projects.

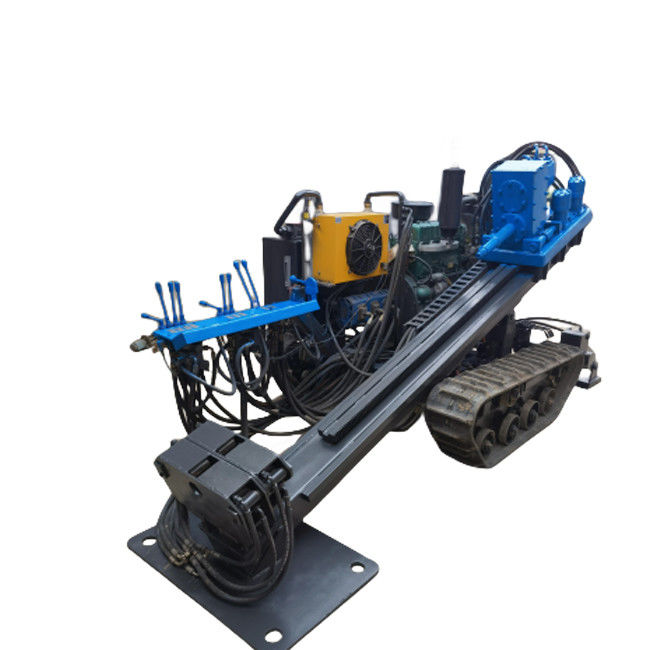

Product Image
