160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving

160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving

HDD Drilling Rig 62KW

160KN HDD Drilling Rig

160KN Horizontal Directional Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCHD-160 Horizontal Directional Drilling Rig

Contact Us
Request A Quote
Product Details
Name:
HDD Drilling Rig
Model:
RCHD-160 Horizontal Directional Drilling Rig
Moving Way:
Rubber Crawler Mounted
Use:
Optical Fiber Pipe Laying And Underground Pipe Installing
Highlight:

HDD Drilling Rig 62KW

,

160KN HDD Drilling Rig

,

160KN Horizontal Directional Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

160KN Pull Force Rubber Crawler Mounted Moving HDD Drilling Rig 62KW Power



Product Description



The RCHD - 160 hydraulic directional drilling rig is an ideal choice for urban underground pipeline laying projects. This equipment is specially designed for the laying of underground pipes and cables. It can achieve efficient, precise and economical drilling operations while protecting the safety of surface and underground facilities. The equipment's high - performance engine and advanced control system enable it to cope with complex geological environments and ensure efficient operations. The user - friendly interface increases work efficiency, reduces costs and mitigates environmental impact, making it the perfect tool for utility pipe installations.



Product Specifications



Model RCHD-160 Mini HDD Drill Rig
Rig weight 2.2t
Dimensions (L×W×H) 3700*1800*1200mm
Engine power 62kw Thunder Power
Max. push & pull force 160KN/16T
Traveling form Remote control
Walking speed 2km/h
Water injection system 160 type three-cylinder mud pump
Max. pressure of mud pump 2.8MPa
Max. flow of mud pump 160L/min
Entry angle 28°
Departure angle 20°
Climbing ability 35°
torque 3200N.m



Product Features



The RCHD - 160 micro transverse drilling rig is equipped with a high-performance engine of the Weifang brand and has extremely high operating efficiency. Its high - torque drive system and rugged rack - and - pinion design ensure smooth operation and long - term equipment durability. The boom of the drilling rig has an adjustable function and can adjust the drilling angle between 13 ° and 24 ° to meet different construction needs. The equipment adopts chassis, rubber tracks and fast traveling motors suitable for construction machinery, which improves the mobility of the equipment. The remote wired control system improves operation safety and field of view, while the two - speed rotation and push - pull function enhances the adaptability of the equipment and improves operating efficiency. The RCHD - 160 drilling rig is equipped with a high - pressure cast iron main pump, a high - quality mud pump and imported hydraulic valves, ensuring high performance and long service life of the equipment. Its compact body design makes it ideal for efficient and flexible use in urban underground projects.

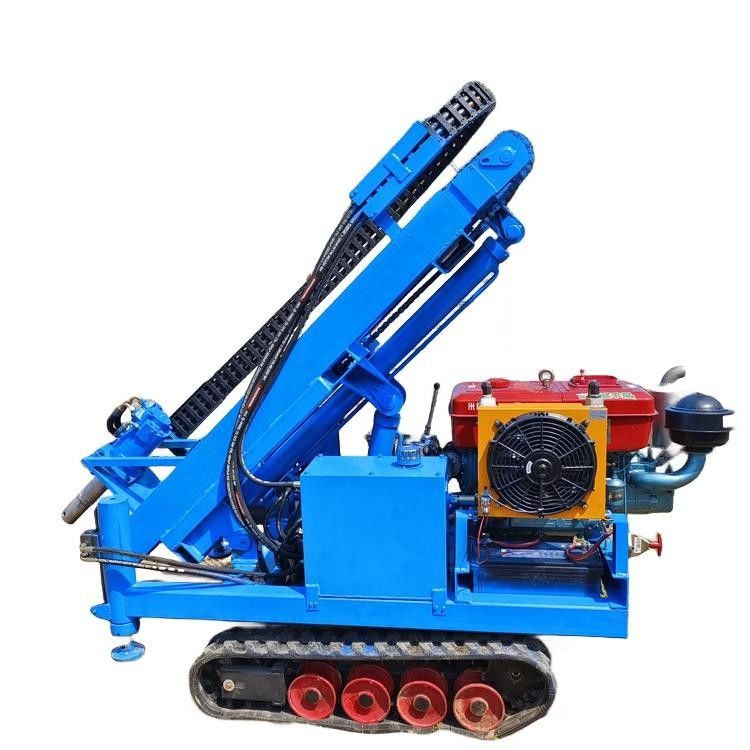

Product Image



160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving 0160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving 1160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving 2160KN Horizontal Directional HDD Drilling Rig 62KW Rubber Crawler Mounted Moving 3
