39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height

39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height

39KW Solar Pile Driving Machine

300mm Solar Pile Driving Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCH360W Solar Pile Driver

Contact Us
Request A Quote
39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height
Product Details
Name:
Solar Pile Drive
Model:
RCH360W Solar Pile Driver
Engine Power:
39KW
Flow Rate Of Hydraulic System:
90L/min
Highlight:

39KW Solar Pile Driving Machine

,

300mm Solar Pile Driving Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe online Video

Hydraulic Drilling Rig Quotation RC260Y Model Both Rotary Drilling And Ramming Ramming Head For Max 6m Ramming Pipe

Get Best Price
Good price RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine online Video

RCKM-30S Small Hydraulic Pile Driver For Solar Pile Installation With 28HP Gasoline Engine

Get Best Price
Good price Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System online Video

Solar Pile Driver RCH530D For 70KW Diesel Engine Min Flow Rate Of Hydraulic System

Get Best Price
Good price 20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch online Video

20-100mm Bore Depth Multi-Functional Solar Pile Driver For 120º Skid Pitch

Get Best Price
Contact Us
Contact Now
Product Description

50 - 300mm Drilling Dia 2 . 6m Piling Height Solar Pile Driver 39KW Engine Power

Product Description

The RCH360D pile driver is a multi-functional construction equipment, suitable for installation of highway guardrail columns, garden fence construction and small foundation construction. It integrates stamping, down - the - hole impact drilling and column extraction, and has strong construction capabilities. The equipment is flexible in movement and adapts to various terrains and road conditions. It has excellent driving performance and is easy to operate, which improves construction efficiency. RCH360D is favored by construction teams for its high flexibility, high efficiency and high adaptability.

Product Specifications


ModelRCH360W
Working Dimension (mm)2900*2650*4200
Transportation Dimension (mm)2900*2250*2550
Wheelbase (mm)1950
Vehicle Weight (Ton)2.8
Engine Power (KW)39
Flow Rate of Hydraulic System (L/min)90
Hydraulic System Pressure (Mpa)20
Mast stroke(mm)2300
Piling Height (mm)2600
Impact Power (J)1960
Hydraulic Hammer TypeYC360, Imported from South Korea
Piling efficiency (mm/min)2500
Drilling Depth (m)1.7
Drilling Diameter (mm)50-300
Max. Climbing Ability (°/%)10°/ 17.6%
Max. Walking Speed (km/h)11
Max traction speed (km/h)30
Tire specifications7.0-9
Left and Right Sliding Stroke (mm)≤400
Max. Adjustment Angle of Sliding Guide Frameleft 30 / right 8
Front and Rear Adjustment Angle of Sliding Guide FrameFront 75 / Back 15
Hydraulic Tank Capacity (L)80
Diesel Tank Capacity (L)40


Product Features

Solar pile drivers have two modes of movement: wheeled and crawler, adapting to a variety of terrains and construction environments. Various drive systems, including optional diesel engines, improve applicability and operational flexibility. It is easy to operate, equipped with angle gauge and spacious cockpit, and the intelligent control system helps precise operation. High efficiency and energy saving, vertical drilling ensures accuracy, and intelligent design adapts to different column shapes. Solar pile drivers play a key role in photovoltaic projects and are indispensable construction equipment.

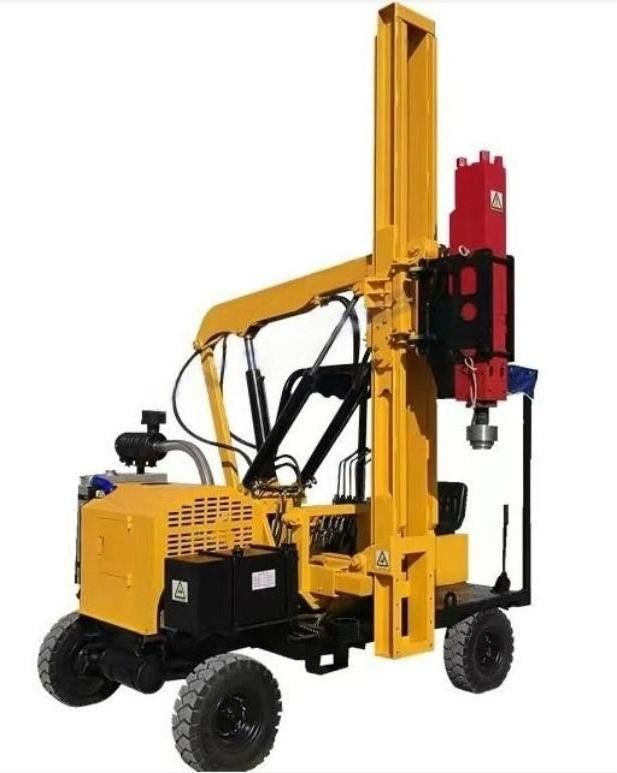

Product Image

39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height 039KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height 1
39KW Engine Solar Pile Driving Machine 50 - 300mm Drilling Dia 2.6m Piling Height 2
