Product Description:

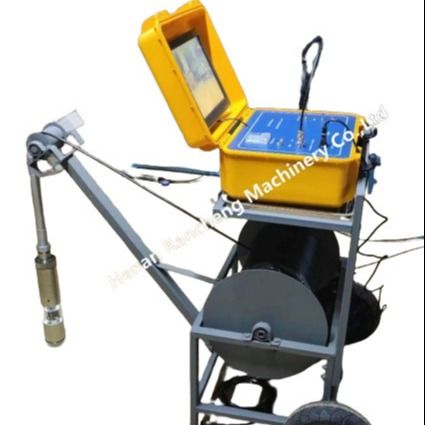

RC-H300/H400/H500/H800/H1000 borehole inspection camera is a sophisticated tool designed for detailed underwater and borehole inspections. It is used across multiple fields such as underwater exploration, borehole and well drilling, engineering, hydrology, mining, petroleum, geotechnical, and civil engineering. This 360-degree rotary camera system is tailored for hydrogeological engineering, allowing the detection of geological anomalies and defects. It is perfect for well maintenance, identifying cracks, misalignments, down falling, filtration problems, pipe blockages, and sand flow positions.
Features:
- Product Name: Underwater Camera Borehole Camera 0-1000 Meters Measurement Range Data Interface For Well Location
- Camera Material: Zinc-coated, 304 Stainless Steel optional
- Lens Angle: Side 360°
- Probe Pressure: 1500m, Pressure 15Mpa
- Video System: 8G SD Card Video System
- Features:
- Underwater camera for well inspection and borehole camera
- High-definition camera for clear visual inspections
- LED lights for improved visibility in dark environments
- Durable zinc-coated or optional 304 stainless steel camera material
- 360° side lens angle for comprehensive views
- Can withstand pressure up to 1500m and 15Mpa
- 8G SD card video system for easy recording and retrieval of inspection footage
Technical Parameters:
| Technical Parameter |
Description |
| Product Name |
300m Camera Geophysical Survey Equipment With High-Definition Camera And LED Lights |
| Camera Size |
Φ65mm(Φ50mm wide angle camera Optional) |
| Brightness Adjustment |
Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming |
| Lens Angle |
Side 360° |
| Outside Diameter |
8 mm |
| Measurement Range |
0-1000 Meters |
| Cable Material |
Custom Logging Cable |
| Motor Type |
Permanent Magnet DC Motor |
| Detection Depth |
300m/400m/500m/800m/1000m |
| Probe Pressure |
1500m, Pressure 15Mpa |
Applications:
Equipped for underwater and borehole inspections, the RC-H300/H400/H500/H800/H1000 borehole cameras are crucial for hydrology, mining, and petroleum departments. They facilitate the observation of geological characteristics, including rock formations, faults, and underwater conditions, in drill holes and wells, enhancing geotechnical and civil engineering projects.
FAQ:
Q: What is the brand name of the geophysical survey equipment?
A: The brand name of the geophysical survey equipment is RanCheng.
Q: What certifications does the geophysical survey equipment have?
A: The geophysical survey equipment is certified with CE and ISO 9001:2000.
Q: Where is the geophysical survey equipment manufactured?
A: The geophysical survey equipment is manufactured in China.
Q: What are the payment terms for purchasing the geophysical survey equipment?
A: The payment terms for purchasing the geophysical survey equipment are T/T and Western Union.
Q: What is the delivery time for the geophysical survey equipment?
A: The delivery time for the geophysical survey equipment is 10-15 working days.
