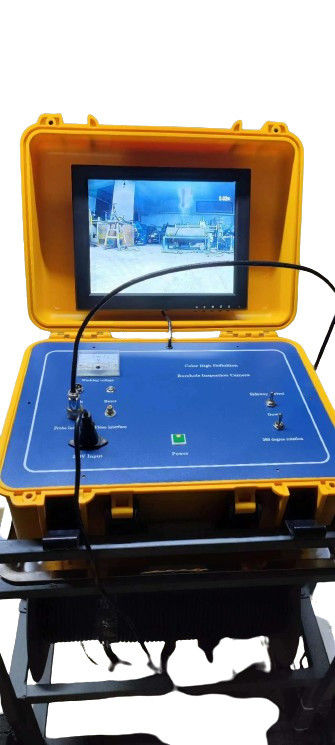

300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box

300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box

300m Well Inspection Camera

Electric Winch Well Inspection Camera

Aluminum Alloy Well Inspection Camera

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC-H300/H400/H500/H800/1200m/1500m/2000m

Contact Us
Request A Quote
Product Details
Split Docking Probe:
Easy To Exchange The Probes Of Different Size And Specification
Probe Pressure:
1500m, Pressure 15Mpa
Type:
Survey Equipment
Motor Type:
Permanent Magnet DC Motor
Video System:
8G SD Card Video System
Interface:
USB
Probe Interface:
Connect The Probe, Transmit Video And Power
Product Features:
1.The Main Control Box Adopts 12V Direct Current, 220V AC,380V As The Working Power, The Whole Power Consumption Is Only 20W, 2.Lightweight: Electric Winch With Automatic Brake Device, Compact Structure, Compact Size, Durable, 3.360 Degrees Rotating Probe
Highlight:

300m Well Inspection Camera

,

Electric Winch Well Inspection Camera

,

Aluminum Alloy Well Inspection Camera

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box

Product Description:

The RC-H300/H400/H500/H800/H1000 is an advanced well inspection camera for comprehensive underwater and borehole analysis. It serves various industries including underwater exploration, borehole drilling, engineering, hydrology, mining, petroleum, geotechnical, and civil sectors. This 360-degree rotary system is engineered for hydrogeological inspections, identifying geological anomalies and defects in boreholes. It is ideal for well maintenance, detecting cracks, misalignments, down falling, filtration issues, pipe blockages, and sand flow positions.

Features:

  • Product Name: 300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box
  • Camera Size: Φ65mm(Φ50mm wide angle camera Optional)
  • Type: Survey Equipment
  • Bearing: 260KG
  • Product Features:
    • The main control box adopts 12V direct current, 220V AC,380V as the working power, the whole power consumption is only 20W
    • Lightweight: electric winch with automatic brake device, compact structure, compact size, durable
    • 360 degrees rotating probe with stainless steel material, the design is very clever, excellent waterproof performance, high pressure, high temperature
    • Stable and reliable: the system uses high-quality devices and curing program module, a large number of components to reduce the use of separation, thereby improving the system stability and reliability
    • 360 degrees rotating probe rear 18-24 high-quality, high-power lamp beads, the probe can be based on the surrounding environment, intelligent dimming, LED lights with cold light source, low light quality and other characteristics
    • 360 degrees rotating probe with stainless steel material, the camera can be vertical down to observe, can be rotated 360 degrees round, you can stop at any time to observe the details of a certain situation. After the field pressure test, the probe pressure up to 25 MPa, can be dive to the depth of 3000m of water, no water, water seepage, high temperature probe, high quality excellent steel glass, the lens is not easy to break
  • Monitor Size: 12” High Brightness LED Monitor, 210*310mm, Outdoor Visual, Screen resolution 1027*768

This product can be used as an underwater camera, water well inspection camera, or borehole camera.



Technical Parameters:

Outside Diameter 8 mm
Brightness Adjustment Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming
Interface USB
Data Interface Can be written into well location, well number, can be self-calibration depth
Monitor Size 12” High Brightness LED Monitor, 210*310mm, Outdoor Visual, Screen resolution 1027*768
Display Size 12 inch LED monitor, Aspect ratio: 4:3, Contrast: 450:1, Brightness: 800cd/m2, Resolution: 1027 × 768, Power DC 12V,220V ,380V, Color system: PAL/NTSC/SECAM
Camera Light Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights
Cable Material Custom Logging Cable
Probe Interface Connect the probe, transmit video and power
Product Category Geophysical Survey Equipment

Applications:

The RC-H300/H400/H500/H800/H1000 well inspection cameras are used for detailed inspections in underwater and borehole settings. They are essential tools in hydrology, mining, petroleum, and civil engineering, providing insights into geological features such as rock structures, faults, and fissures within wells and drilling sites, and supporting undersea exploration.

FAQ:

Q1: What is the brand name of the geophysical survey equipment?

A1: The brand name of the geophysical survey equipment is RanCheng.

Q2: What certifications does the geophysical survey equipment have?

A2: The geophysical survey equipment has CE and ISO 9001:2000 certifications.

Q3: Where is the geophysical survey equipment manufactured?

A3: The geophysical survey equipment is manufactured in China.

Q4: What are the payment terms for purchasing the geophysical survey equipment?

A4: The payment terms for purchasing the geophysical survey equipment are T/T and Western Union.

Q5: What is the delivery time for the geophysical survey equipment?

A5: The delivery time for the geophysical survey equipment is 10-15 working days.



300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box 0

300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box 1

300m Well Inspection Camera Underwater Camera With Electric Winch And Aluminum Alloy Main Control Box 2
