Professional Borewell Inspection Camera For Geophysical Surveying Measurement Range 0-1000 Meters
Product Description:

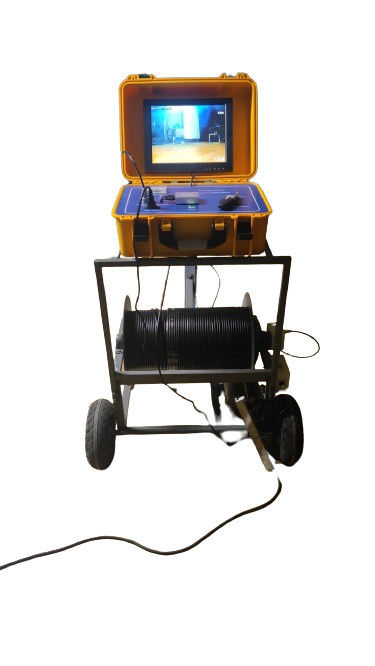

The RC-H300/H400/H500/H800/H1000 borewell inspection camera is an advanced device designed for thorough inspections of underwater and borehole environments. It is utilized in numerous fields such as underwater exploration, borehole drilling, engineering, hydrology, mining, petroleum, geotechnical, and civil sectors. This 360-degree rotary camera is engineered for hydrogeological purposes, detecting anomalies and defects within geological formations and boreholes. It is ideal for maintaining wells, identifying wall cracks, misalignment, down falling, filtration problems, pipe blockages, and sand flow positions.
Features:
- Product Name: Professional Borewell Inspection Camera For Geophysical Surveying Measurement Range 0-1000 Meters
- Display Size: 12 inch LED monitor
- Aspect ratio: 4:3
- Contrast: 450:1
- Brightness: 800cd/m2
- Resolution: 1027 × 768
- Power: DC 12V,220V ,380V
- Color system: PAL/NTSC/SECAM
- Application: Geophysical Surveying
- Detection Depth: 300m/400m/500m/800m/1000m
- Split Docking Probe: Easy to exchange the probes of different size and specification
Technical Parameters:
| Technical Parameters |
Description |
| Winch Type |
Electric Winch |
| Split Docking Probe |
Easy to exchange the probes of different size and specification |
| Main control box material |
Aluminum Alloy |
| Application |
Geophysical Surveying |
| Temperature Tolerance |
65º |
| Brightness Adjustment |
Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming |
| Data Interface |
Can be written into well location, well number, can be self-calibration depth |
| Product Category |
Geophysical Survey Equipment |
| Depth Interface |
Connect the depth sensor |
| Camera Light |
Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights |
Applications:
The RC-H300/H400/H500/H800/H1000 borewell camera is vital for inspecting underwater and drilling environments. It serves various units like hydrology, mining, and geotechnical engineering by capturing detailed images of geological structures, faults, and fissures in wells and drill holes, facilitating comprehensive geological and undersea studies.
FAQ:
Q1: What is the brand name of the Geophysical Survey Equipment?
A1: The brand name of the Geophysical Survey Equipment is RanCheng.
Q2: What certifications does the Geophysical Survey Equipment have?
A2: The Geophysical Survey Equipment has CE and ISO 9001:2000 certifications.
Q3: Where is the Geophysical Survey Equipment manufactured?
A3: The Geophysical Survey Equipment is manufactured in China.
Q4: What are the payment terms for purchasing the Geophysical Survey Equipment?
A4: The payment terms for purchasing the Geophysical Survey Equipment are T/T and Western Union.
Q5: What is the supply ability and delivery time for the Geophysical Survey Equipment?
A5: The supply ability for the Geophysical Survey Equipment is 100 sets per month and the delivery time is 10-15 working days.
Q6: What is the minimum order quantity for the Geophysical Survey Equipment?
A6: The minimum order quantity for the Geophysical Survey Equipment is 1.
Q7: Is the price of the Geophysical Survey Equipment negotiable?
A7: Yes, the price of the Geophysical Survey Equipment is negotiable.
Q8: What is the packaging details for the Geophysical Survey Equipment?
A8: The packaging details for the Geophysical Survey Equipment is standard shipping.
Q9: What are the various models of the Geophysical Survey Equipment available?
A9: The various models of the Geophysical Survey Equipment available are RC-H300, RC-H400, RC-H500, RC-H800, RC-1200, RC-1500 and RC-2000.
