Product Description:

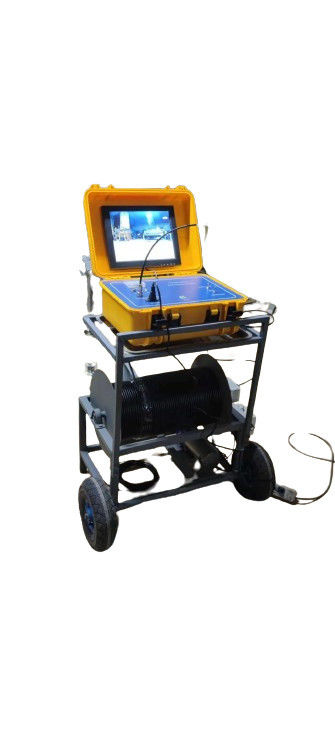

The RC-H300/H400/H500/H800/H1000 inspection camera is advanced equipment tailored for comprehensive underwater and borehole inspections. It is extensively utilized in areas like underwater exploration, borehole and water well drilling, hydrology, mining, petroleum, geotechnical, and civil engineering. This 360-degree rotary system is specially designed for hydrogeological applications, capable of detecting anomalies and defects in geological formations and boreholes. It excels in well maintenance, spotting borehole wall cracks, misalignments, down falling, filtration issues, pipe hole blockages, and sand flow positions.
Features:
- Product Name: 500m Probe Pressure Well Inspection Camera Borehole Camera For Self-Calibration Depth Measurement Range 0-1000 Meters
- Type: Survey Equipment
- Winch Type: Electric Winch
- Display Size: 12 inch LED monitor
- Aspect ratio: 4:3
- Contrast: 450:1
- Brightness: 800cd/m2
- Resolution: 1027 × 768
- Power: DC 12V, 220V, 380V
- Color system: PAL/NTSC/SECAM
- Split Docking Probe: Easy to exchange the probes of different size and specification
- Temperature Tolerance: 65º
Technical Parameters:
| Camera Pixels |
CCD Camera, 1200 TVL High-definition Low-light |
| Lens Angle |
Side 360° |
| Display Size |
12 inch LED monitor, Aspect ratio: 4:3, Contrast: 450:1, Brightness: 800cd/m2, Resolution: 1027 × 768, Power DC 12V,220V ,380V, Color system: PAL/NTSC/SECAM |
| Bearing |
260KG |
| Probe Interface |
Connect the probe, transmit video and power |
| Type |
Survey Equipment |
| Temperature Tolerance |
65º |
| Motor Type |
Permanent Magnet DC Motor |
| Outside Diameter |
8 mm |
| Camera Window |
Explosion-proof Optical Acrylic Glass Or Explosion-proof Glass Window |
Applications:
The RC-H300/H400/H500/H800/H1000 borehole camera is specialized equipment for examining underwater and borehole conditions. It is widely used in hydrology, mining, petroleum, and civil engineering to monitor geological features like rock structures, faults, and fissures within wells and drill holes, supporting detailed geotechnical and undersea investigations.
FAQ:
A: The brand name of the equipment is RanCheng.
Q: What certifications does the equipment have?
A: The equipment is certified with CE and ISO 9001:2000.
Q: Where is the equipment manufactured?
A: The equipment is manufactured in China.
Q: What are the accepted payment terms for purchasing the equipment?
A: The accepted payment terms are T/T and Western Union.
Q: What is the supply ability of the equipment per month?
A: The supply ability of the equipment is 100 sets per month.
Q: What is the delivery time for the equipment?
A: The delivery time for the equipment is 10-15 working days.
Q: What is the minimum order quantity for the equipment?
A: The minimum order quantity for the equipment is 1.
Q: Is the price of the equipment negotiable?
A: Yes, the price of the equipment is negotiable.
Q: What are the packaging details of the equipment?
A: The equipment is shipped with standard packaging.
Q: What are the available models for the geophysical survey equipment?
A: The available models for the equipment are RC-H300, RC-H400, RC-H500, RC-H800, RC-1200m, RC-1500m, and RC-2000m.
