Product Description:

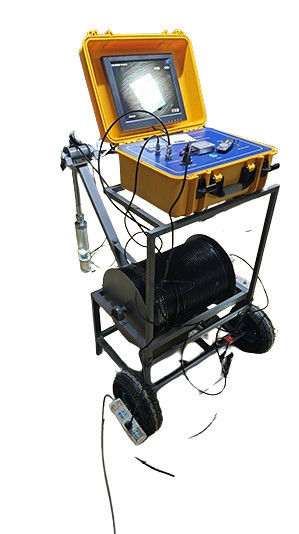

The RC-H300/H400/H500/H800/H1000 Borehole Video Camer is an advanced tool designed for thorough underwater and borehole inspections. It is widely used in fields such as underwater exploration, borehole and water well drilling, engineering, hydrology, mining, petroleum, geotechnical, and civil sectors. This 360-degree rotary camera system is engineered for hydrogeological engineering, allowing for the detection of geological anomalies and defects within boreholes. It is ideal for well maintenance, identifying cracks, misalignments, down falling, filtration issues, pipe blockages, and sand flow positions.
Features:
- Product Name: 300m Cable Inspection Camera Borehole Video Camer For Easy Probe Exchange
- Camera Light: Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface; Φ50mm wide angle camera, 6 or lights
- Data Interface: Can be written into well location, well number, can be self-calibration depth
- Monitor Size: 12” High Brightness LED Monitor, 210*310mm, Outdoor Visual, Screen resolution 1027*768
- Lens Angle: Side 360°
- Interface: USB
Technical Parameters:
| Main control box material |
Aluminum Alloy |
| Camera Size |
Φ65mm(Φ50mm wide angle camera Optional) |
| Outside Diameter |
8 mm |
| Probe Pressure |
1500m, Pressure 15Mpa |
| Temperature Tolerance |
65º |
| Type |
Survey Equipment |
| Interface |
USB |
| Bearing |
260KG |
| Camera Light |
Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights |
| Motor Type |
Permanent Magnet DC Motor |
Applications:
Designed for underwater, borehole, and drilling inspections, the RC-H300/H400/H500/H800/H1000 camera is essential in hydrology, mining, petroleum, and geotechnical engineering. It allows for the detailed observation of geological characteristics within wells and drill holes, including rock structures, geological formations, faults, and fissures, aiding in comprehensive underwater and undersea surveys.
FAQ:
Q: What is the brand name of the geophysical survey equipment?
A: The brand name of the geophysical survey equipment is RanCheng.
Q: What certifications does the product have?
A: The product has CE and ISO 9001:2000 certifications.
Q: Where is the geophysical survey equipment made?
A: The geophysical survey equipment is made in China.
Q: What are the available payment terms for purchasing the product?
A: The available payment terms for purchasing the product are T/T and Western Union.
Q: What is the supply ability of the geophysical survey equipment?
A: The supply ability of the geophysical survey equipment is 100 sets per month.
Q: What is the delivery time for the geophysical survey equipment?
A: The delivery time for the geophysical survey equipment is 10-15 working days.
Q: What is the minimum order quantity for the geophysical survey equipment?
A: The minimum order quantity for the geophysical survey equipment is 1.
Q: Is the price of the geophysical survey equipment negotiable?
A: Yes, the price of the geophysical survey equipment is negotiable.
Q: What are the packaging details for the geophysical survey equipment?
A: The packaging details for the geophysical survey equipment are standard shipping.
Q: What are the available models for the geophysical survey equipment?
A: The available models for the geophysical survey equipment are RC-H300, RC-H400, RC-H500, RC-H800, RC-1200m, RC-1500m, and RC-2000m.
