Product Description:
The Borewell Inspection Camera is Φ65mm, with a Φ50mm wide-angle camera optional. This makes camera easy to capture high-quality images of the underwater environment, even in low light conditions. The Borewell Inspection Camera is a highly advanced and efficient tool that is designed to meet the needs of researchers, explorers, and professionals in a range of fields.
Features:
- Product Name: Electric Winch Borewell Inspection Camera Borehole Video Camera With 8G SD Card Video System
- Temperature Tolerance: 65º
- Camera Window: Explosion-proof Optical Acrylic Glass Or Explosion-proof Glass Window
- Application: Geophysical Surveying
- Display Size: 12 inch LED monitor, Aspect ratio: 4:3, Contrast: 450:1, Brightness: 800cd/m2, Resolution: 1027 × 768, Power DC 12V,220V ,380V, Color system: PAL/NTSC/SECAM
- Cable Material: Custom Logging Cable
Technical Parameters:
| Product Attribute |
Value |
| Product Category |
Geophysical Survey Equipment |
| Video System |
8G SD Card Video System |
| Camera Light |
Φ79mm dual camera, bottom camera has 6 lights, side camera has a luminous surface. Φ50mm wide angle camera, 6 or 9 lights |
| Depth Interface |
Connect the depth sensor |
| Split Docking Probe |
Easy to exchange the probes of different size and specification |
| Outside Diameter |
8 mm |
| Probe Pressure |
1500m, Pressure 15Mpa |
| Measurement Range |
0-1000 Meters |
| Winch Type |
Electric Winch |
| Data Interface |
Can be written into well location, well number, can be self-calibration depth |
Applications:

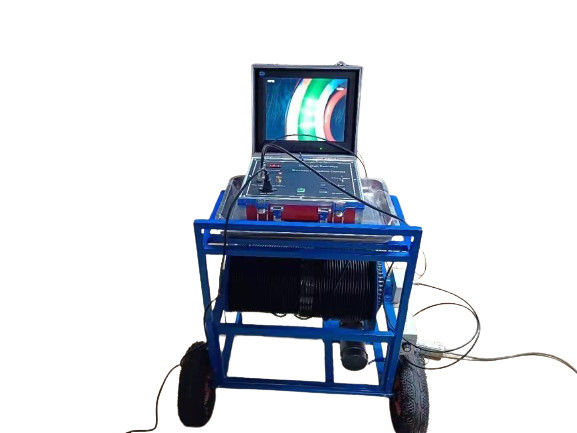

The Borewell Inspection Camera is a must-have tool for well inspection. It has a model number of RC-H300/H400/H500/H800/1200m/1500m/2000m. The probe interface can connect the probe, transmit video, and power. It has a lightweight design and an electric winch with automatic brake device, which makes it compact and durable. It has a rotating probe with stainless steel material, which is waterproof and can withstand high pressure and temperature. The system uses high-quality devices and curing program module, which makes it stable and reliable.
The main control box of Borehole Video Camera is made of aluminum alloy material. It adopts 12V direct current, 220V AC, 380V as the working power, and the whole power consumption is only 20W. It can tolerate a temperature of up to 65º. The depth interface can connect the depth sensor.
Borewell Inspection Camera can be used to inspect wells, tanks, pipes, and other areas that are difficult to access. It is a versatile and reliable product that can help you save time and effort in the inspection work.
FAQ:
Q1. What is the brand name of this equipment?
A1. The brand name of this equipment is RanCheng.
Q2. What certifications does this equipment have?
A2. This equipment has CE and ISO 9001:2000 certifications.
Q3. What is the place of origin for this equipment?
A3. The place of origin for this equipment is China.
Q4. What are the payment terms for purchasing this equipment?
A4. The payment terms for purchasing this equipment are T/T and Western Union.
Q5. What is the delivery time for this equipment?
A5. The delivery time for this equipment is 10-15 working days.
