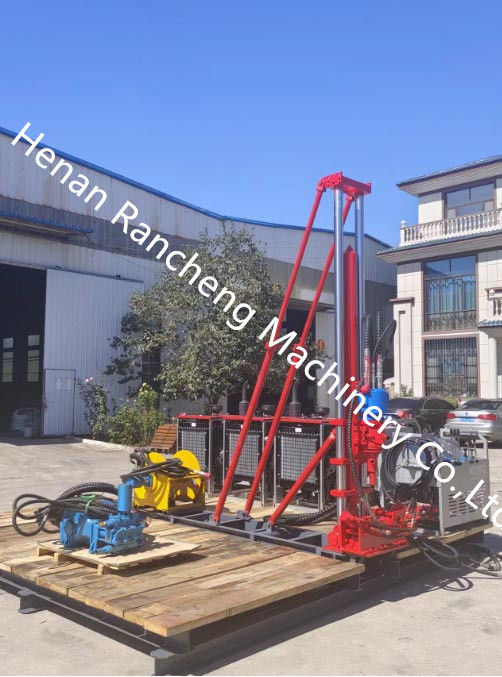

480m Hydraulic Drilling Rig Diamond Core Drilling Rig For Manual Handling

Product Description:

Our underground diamond drilling rig is equipped with a powerful diesel engine, the 42KW Yuchai, which ensures that the rig keeps running smoothly even in the toughest drilling conditions. The engine is designed to deliver high torque at low RPM, which means that you get maximum power with minimum fuel consumption. This makes our Core Drilling Rig a cost-effective solution for your drilling needs.
The winch rated rotary speed of our Core Drilling Rig is between 100-240 RPM, which makes it ideal for drilling holes in all kinds of rock formations. The rig is also equipped with a high-pressure hydraulic system with a pressure rating of 21MPa and a flow rate of 96L/min. This ensures that the rig can easily handle even the most challenging drilling tasks with ease.
Core Drilling Rig is designed with safety. It is equipped with a fully enclosed cab that provides maximum protection to the operator. The cab is also designed to provide maximum visibility, which means that the operator can easily monitor the drilling process at all times.
The Core Drilling Rig is also designed for easy maintenance. It comes with a user-friendly control panel that allows you to monitor and control all the operations of the rig. The rig is also equipped with a range of safety features, including emergency stop buttons, safety interlocks, and automatic shut-off systems, which ensure that the rig operates safely at all times.
Small Core Drilling Rig is suitable for a wide range of drilling applications, including mineral exploration, geotechnical drilling, environmental drilling, and more. It is also highly versatile and can be easily adapted to suit different drilling requirements.

Features:

• Product Name: 480m Hydraulic Drilling Rig Diamond Core Drilling Rig For Manual Handling
• Top Drive Rotation Head Maximum Torque: 400-600N.m
• Drill Depth: 480m
• Top Drive Rotation Head Maximum Rotation Speed: 0-1200rpm
• Engine Power: 42KW X 2sets

Technical Parameters:

Applications:

The Core Drilling Rig is designed to be highly efficient, with a hydraulic system rated flow of 96L/min and a hydraulic system rated pressure of 21MPa. The product is equipped with a 42KW Yuchai diesel engine that is powerful and reliable. With a drill depth (BTW) of 480m, the product is perfect for deep drilling projects.
The Core Drilling Rig is suitable for various drilling projects, including geological exploration, mineral exploration, and water well drilling projects. It can be used to drill through various materials, including rock, soil, and other hard materials. The product is designed to be highly reliable, with a winch rated rotary speed of 100-240RPM, ensuring that the drilling process is smooth and efficient.
The Core Drilling Rig is highly versatile, making it suitable for use in various occasions and scenarios. It can be used in remote areas where transportation is difficult, as it can be shipped by one 20" container. The product is also suitable for use in urban areas, where noise pollution is a concern, as it operates quietly and efficiently.

FAQ:

Q: What is the brand name of the core drilling rig?
A: The brand name of the core drilling rig is RanCheng.
Q: What is the model number of the core drilling rig?
A: The model number of the core drilling rig is RCK400P.
Q: What certifications does the core drilling rig have?
A: The core drilling rig has CE and ISO 9001:2000 certifications.
Q: Where is the core drilling rig manufactured?
A: The core drilling rig is manufactured in China.
Q: What is the minimum order quantity for the core drilling rig?
A: The minimum order quantity for the core drilling rig is 1.
Q: What is the price of the core drilling rig?
A: The price of the core drilling rig is negotiable.
Q: What are the payment terms for the core drilling rig?
A: The payment terms for the core drilling rig are T/T and Western Union.
Q: What is the delivery time for the core drilling rig?
A: The delivery time for the core drilling rig is 10-15 working days.
