Rock Killer Drilling Rig 350m Deep Bore Well Drilling Machine With Diameter 100-350mm

Rock Killer Drilling Rig 350m Deep Bore Well Drilling Machine With Diameter 100-350mm

350m Deep Well Drilling Machine

Rock Killer Drilling Rig

350m Deep Bore Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Rock Killer Drilling Rig 350m Deep Bore Well Drilling Machine With Diameter 100-350mm
Rock Killer Drilling Rig 350m Deep Bore Well Drilling Machine With Diameter 100-350mm
Product Details
Bore Diameter:
140-350mm
Bore Depth:
350m
Lifting Force:
22T
Pipe Diameter:
89mm/102mm
Weight:
8600kg
Diesel Engine:
91KW Yuchai Engine
Drilling Way:
Air Compressor Drilling Or Mud Pump Drilling
Operating System:
Full Hydraulic Operation
Highlight:

350m Deep Well Drilling Machine

,

Rock Killer Drilling Rig

,

350m Deep Bore Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

Rock Killer Drilling Rig 350m Deep Bore Well Drilling Machine With Diameter 100-350mm

Product Description

The RCF350C hydraulic crawler water well drilling machine uses advanced technology and high - quality materials in the manufacturing process to ensure its high quality and reliability. This drilling rig is easy to operate, has excellent drilling capabilities and stability, and is suitable for water well drilling under various geological conditions. Its price is favorable and cost - effective, and it has been favored and praised by customers. In European and American markets, sales are very hot due to its high efficiency and reliability. There is a wide range of drilling diameters to meet the needs of different projects. At the same time, it adopts the design of top rotary drive and can be used in conjunction with mud pumps and air compressors, which improves the efficiency and flexibility of drilling operations.

Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


After service

1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.

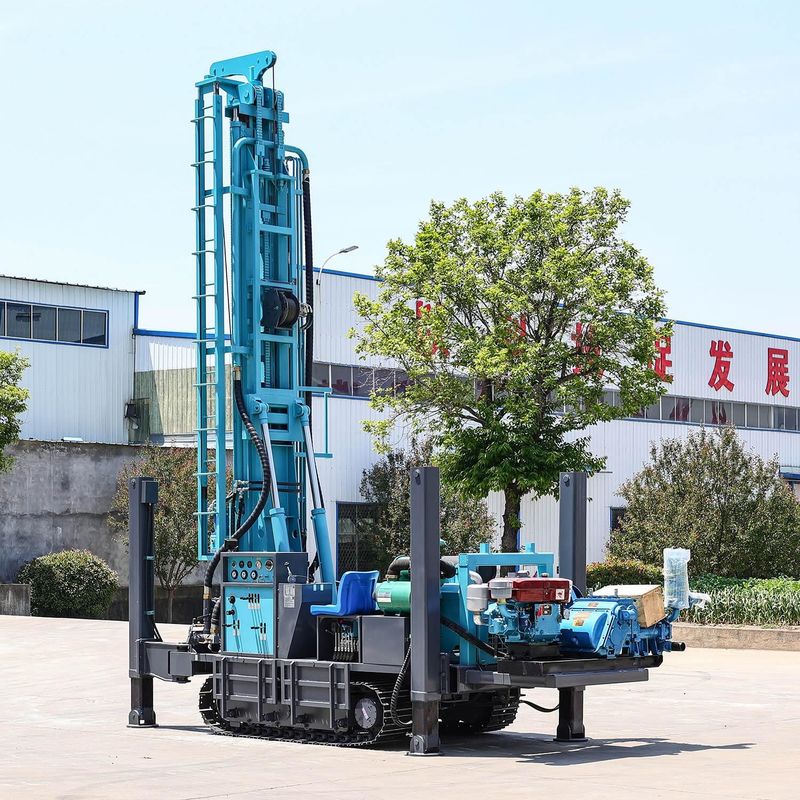

Machine picture display
