Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig

Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig

Deep Hydraulic Borehole Drilling Rig

Crawler Type Drilling Rig

350m Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF350C

Contact Us
Request A Quote
Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig
Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig
Product Details
Dimension(L*W*H):
6000×2000×2550mm
Hoist Lifting Capacity:
2T
Lifting Force:
22T
Weight:
8600kg
Drilling Way:
Air Compressor Drilling Or Mud Pump Drilling
Operating System:
Full Hydraulic Operation
Feeding Speed:
0.5-5m/min
Highlight:

Deep Hydraulic Borehole Drilling Rig

,

Crawler Type Drilling Rig

,

350m Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
RELATED PRODUCTS
Good price Max 150 Meters Protable RCF150S Water Well Drilling Machine online Video

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price
Good price 350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig online Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price
Good price 350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force online Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price
Good price Compact And High Efficiency 150 Meter Water Well Drilling Rig online Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price
Contact Us
Contact Now
Product Description

Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig


Product Description

RCF350C hydraulic deep well drilling machine is a very hot selling machine, drill max 350m depth, max 350mm diameter. It Adopts the newest and most advanced hydro technology,Top head driving .large rotary torque, and high efficiency, The drilling rig structure is compact, with good performance and stable drilling.


Technical Parameters

Model RCF350C
Bore diameter(Hammer) 140-350mm
Bore depth 350m
Air consumption 17-35m³/min
Air pressure 1.7-3.5Mpa
Pipe diameter 89mm/102mm
Pipe length 1m/2m/3m/6m
Lifting force 22T
Lifting speed 3m/min
feeding speed 0.5-5m/min
Fast lifting speed 30m/min
Fast feeding speed 50m/min
Max torque of the rotary 6200-8500Nm
Rotary speed 55-115r/min
Hoist lifting capacity 2T
Mud Pump flow 450L/min (option)
High hydraulic leg 1.5m
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 6000×2000×2550mm
Weight 8600Kg
Diesel engine 91KW Yuchai engine
Drilling way Air compressor drilling or mud pump drilling
Operating system Full hydraulic operation


After service

1,24/7 service by chat online and phone.

2,Lifelong and free technical support.

3,Service overseas: if you need, we can dispatch an engineer to your door.

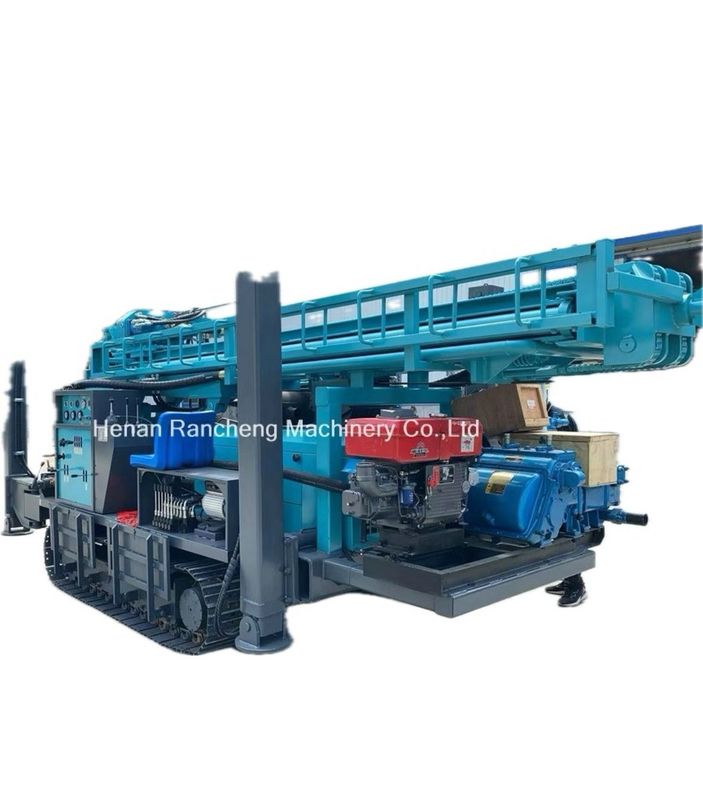

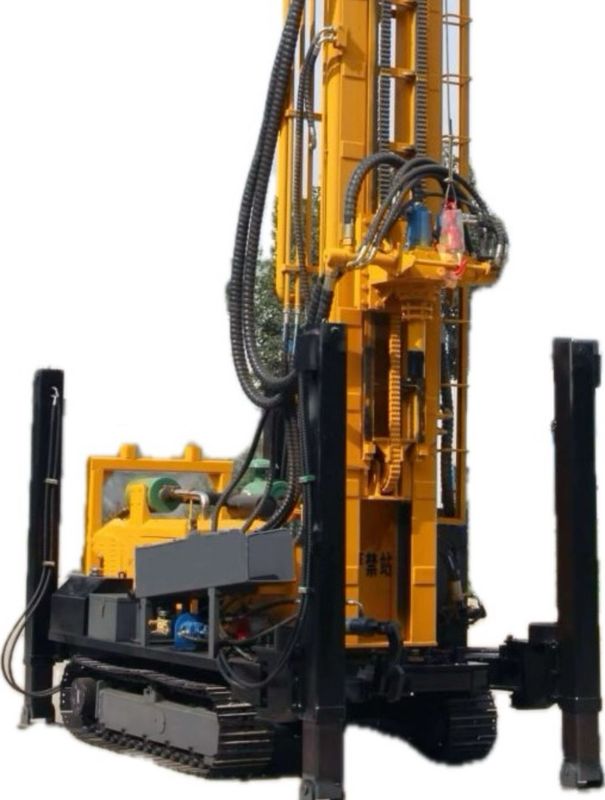

Machine picture display

Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 0Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 1Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 2Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 3

Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 4Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 5
Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 6
Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 7
Deep Hydraulic Borehole DTH Water Well Drilling Crawler Type 350m Drilling Rig 8
