Machine Description

The RCF180S water well drilling machine is designed to be small in size and light in weight. The whole machine only weighs 2,700 kg. It has a compact structure and is very flexible to use. It adopts two-motor head drive and can use mud pump and air compressor for drilling at the same time. In addition, this drill rig is equipped with four high-hydraulic legs for easy transportation and is very convenient.
The RCF180S mini water well drilling machine is very powerful and can drill to a maximum depth of 180 meters. It is equipped with a 77.3-kilowatt Yuchai diesel engine, ensuring strong power output. The maximum torque of the rotary head of this small water drilling rig can reach 4,600 Newton meters and the lifting force reaches 15 tons. Although it is small in size, it has powerful drilling capabilities.

RCF180S water well drilling machine uses a 2-meter-long drill pipe, making it very convenient to load and unload the drill pipe. It is not only suitable for general water well drilling, but also can be used for geothermal wells, ground source heat pump wells and other projects. This drilling rig is easy to operate and has a wide range of applications. It is a small water drilling rig with excellent performance.

Technical Parameters

Feature:

1,Small size, light weight ,Compact structure,and flexible operation.
this drilling machine weight is only 2700KGS ,the machine size is 2300X1200X2900mm.
2,it is DTH pneumatic water drilling rig ,two motors rotary head ,top driving ,drill with both mud pump and air compressor ,The double rotation motor increased the rotary torque and revolving speed.
3,big powerful and ability ,it use 77.3KW Yuchai engine ,it can drill max 180m depth ,90-300mm borehole.

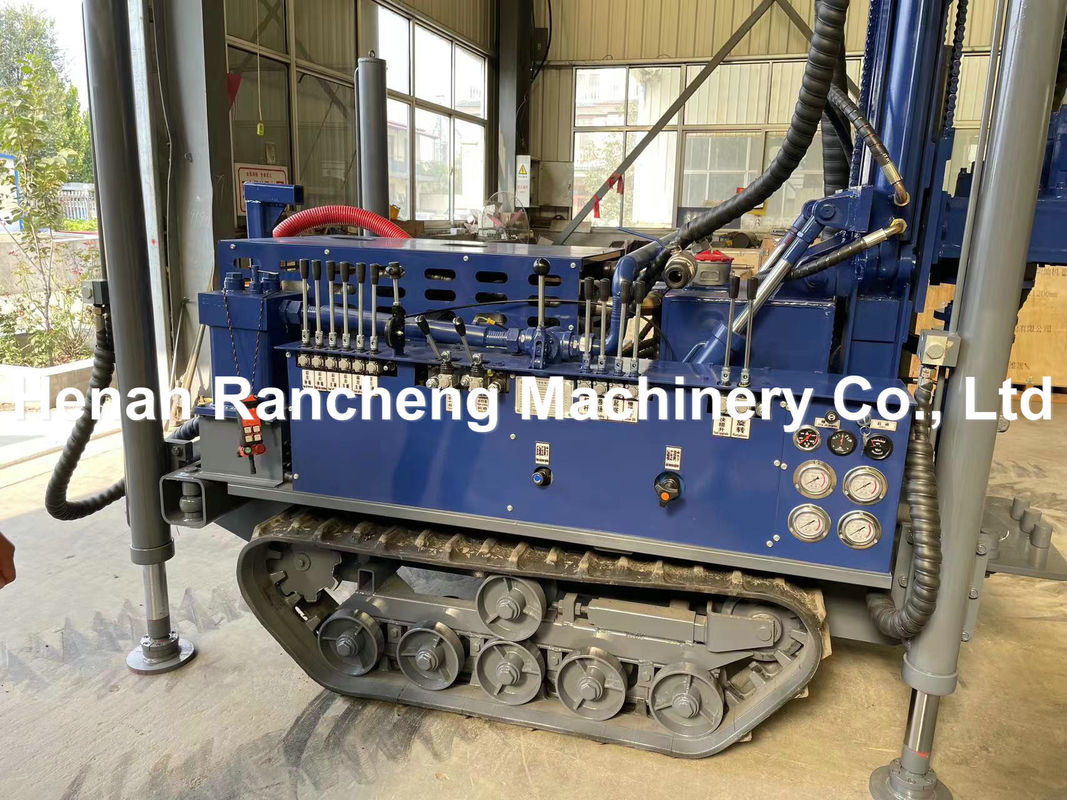

4,it is rubber crawler mounted type ,easy to move.
5,full hydraulic legs ,very convenient to transport by truck ,very stable in drilling job.
