300m 500m 360 Degree Rotating Water Well Inspection Camera

300m 500m 360 Degree Rotating Water Well Inspection Camera

300m Water Well Inspection Camera

500m Water Well Inspection Camera

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RC-H300/H400/H500/H800/1200m/1500m/2000m

Contact Us
Request A Quote
Product Details
Camera Pixels:
CCD Camera
Temperature Tolerance:
65º
Detection Depth:
200m/300m/400m/500m/800m/1000m
Cable Material:
Custom Logging Cable
Display Size:
12 Inch LED Monitor, Aspect Ratio: 4:3, Contrast: 450:1, Brightness: 800cd/m2, Resolution: 1027 × 768, Power DC 12V,220V ,380V, Color System: PAL/NTSC/SECAM
Product Category:
Geophysical Survey Equipment
Lens Angle:
Side 360°
Highlight:

300m Water Well Inspection Camera

,

500m Water Well Inspection Camera

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Comprehensive 300m Water Well Inspection Camera Borehole Camera With Wide Angle Camera

Product Description:

The Well Inspection Camera, also known as the waterproof camera or borehole camera, is equipped with a 360 degrees rotating probe with stainless steel material that has excellent waterproof performance and can withstand high pressure and temperature. It can be used to observe the characteristic of geologic body in drill hole, well hole, well drilling, oil well and pile foundation etc, such as rock structure, geological structure, rock strike, faults, fissures, dissection, underwater and undersea survey.

Features:

  • Product Name: Comprehensive 300m Water Well Inspection Camera Borehole Camera With Wide Angle Camera
  • Detection Depth: 300m/400m/500m/800m/1000m
  • Brightness Adjustment: Front and rear lamp beads, can adjust the brightness of the light source through the button in the control box, five-level dimming
  • Camera Pixels: CCD Camera, 1200 TVL High-definition Low-light, waterproof camera
  • Interface: USB
  • Temperature Tolerance: 65º

Technical Parameters:

Cable Material Custom Logging Cable
Depth Interface Connect the depth sensor
Interface USB
Video System 8G SD Card Video System
Data Interface Can be written into well location, well number, can be self-calibration depth
Product Features

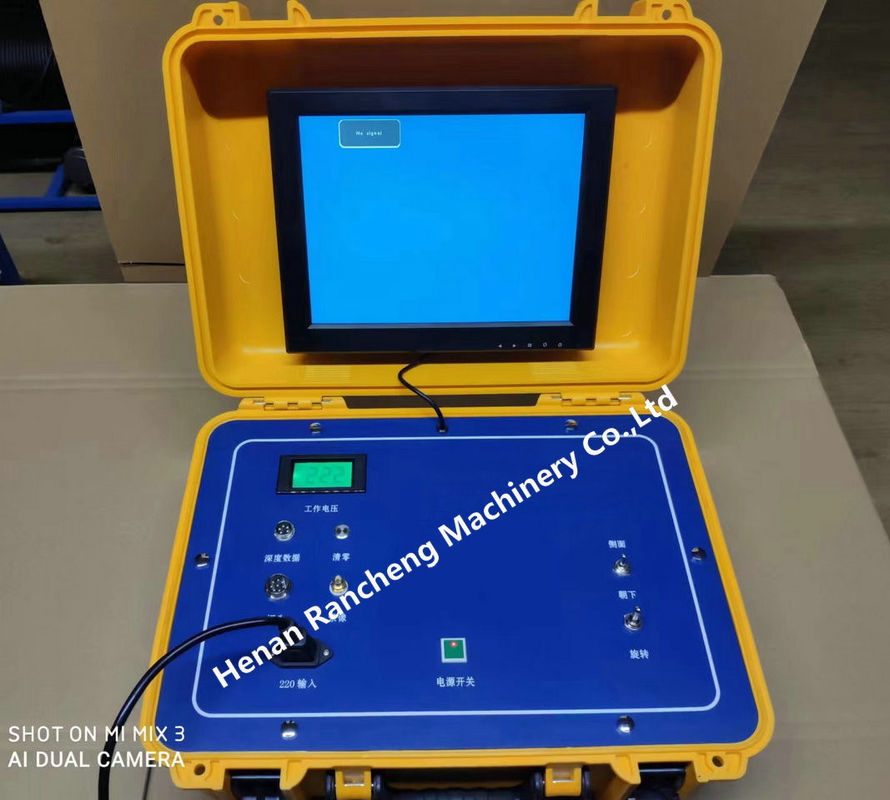

Aluminum Alloy Control Box

* Depth Interface: Connect the depth sensor
* Probe Interface: Connect the probe, transmit video and power
* Data Interface: Can be written into well location, well number, can be self-calibration depth
* Video System: 8G SD Card Video System

* Depth Zero: Please return the depth to zero before logging, so that the counting is accurate.

* Monitor: 12" High Brightness LED Monitor, 210*310mm, Outdoor Visual, Screen resolution 1027*768

* Expansion Interface: Video Capture Expansion Interface

Main control box material Aluminum Alloy
Lens Angle Side 360°
Temperature Tolerance 65º
Application Geophysical Surveying


Applications:

The RC-H300/H400/H500/H800/H1000 borewell inspection camera is utilized in various sectors, including underwater exploration, borehole inspection, water well drilling, and geological engineering. It serves hydrology, mining, petroleum, geotechnical, and civil departments by observing geological features in drill holes, wells, oil wells, and pile foundations, such as rock formations, structures, faults, fissures, and underwater surveys.

FAQ:

Q: What is the brand name of this Geophysical Survey Equipment?

A: The brand name is RanCheng.

Q: Is this Geophysical Survey Equipment certified?

A: Yes, it is certified with CE and ISO 9001:2000.

Q: Where is this Geophysical Survey Equipment made?

A: This equipment is made in China.

Q: What are the payment terms for purchasing this equipment?

A: The payment terms are T/T and Western Union.

Q: What is the supply ability of this Geophysical Survey Equipment?

A: The supply ability is 100 sets per month.

Q: What is the delivery time for this equipment?

A: The delivery time is 10-15 working days.

Q: What is the minimum order quantity for this equipment?

A: The minimum order quantity is 1.

Q: Is the price for this Geophysical Survey Equipment negotiable?

A: Yes, the price is negotiable.

Q: How is this equipment packaged for shipping?

A: The equipment is packaged with standard shipping packaging details.

Q: What are the available models for this Geophysical Survey Equipment?

A: The available models are RC-H300, RC-H400, RC-H500, RC-H800, RC-1200m, RC-1500m, and RC-2000m.



300m 500m 360 Degree Rotating Water Well Inspection Camera 0

300m 500m 360 Degree Rotating Water Well Inspection Camera 1

300m 500m 360 Degree Rotating Water Well Inspection Camera 2
