Bw200 Triplex Hydraulic Mud Pump for Drilling Rig

Bw200 Triplex Hydraulic Mud Pump for Drilling Rig

Bw200 Triplex Hydraulic Mud Pump

Bw200 Triplex Mud Pump

Drilling Rig Triplex Hydraulic Mud Pump

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW200

Contact Us
Request A Quote
Product Details
Name:
Mud Pump For Water Well
Model:
BW200
Brand:
Zhongtan China
Engine:
11KW
Flow Rate:
200L/min
Frequency Of Stroke:
145 Times/min
Highlight:

Bw200 Triplex Hydraulic Mud Pump

,

Bw200 Triplex Mud Pump

,

Drilling Rig Triplex Hydraulic Mud Pump

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Bw200 Triplex Hydraulic Mud Pump for Drilling Rig



Machine Introduction



BW200 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed. Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application,the deepest can be used with 1800meters driling rig,it also can be used cement perfusion.

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.



Technical Parameters



Model BW200
Type horizontal type two cylinder double action pump
Cylinder diameter 80,65mm
Piston stroke 85mm
Frequency of stroke 145 times/min
Flow rate 200;125 l/min
Working pressure 40;60(kg/cm)
Transmission power 11KW
Diameter of discharge pipe 37mm
Diameter of suction pipe 65mm
Overall dimensions(L*W*H) 1050*630*820mm
Weight 300kgs



Machine Advantages



BW200 grouting pump, excellent horizontal double cylinder double action design, cylinder diameter differentiation, long piston stroke, high stroke frequency, to ensure efficient and stable output. Adjustable flow to meet diverse needs, stable working pressure, adapt to various working conditions. Strong transmission power, smooth fluid flow, reduce clogging wear. Widely used in geological drilling, water conservancy, construction, tunnel and other fields, grouting mud lifting effect is excellent,engineering project right - hand.



Machine Pictures

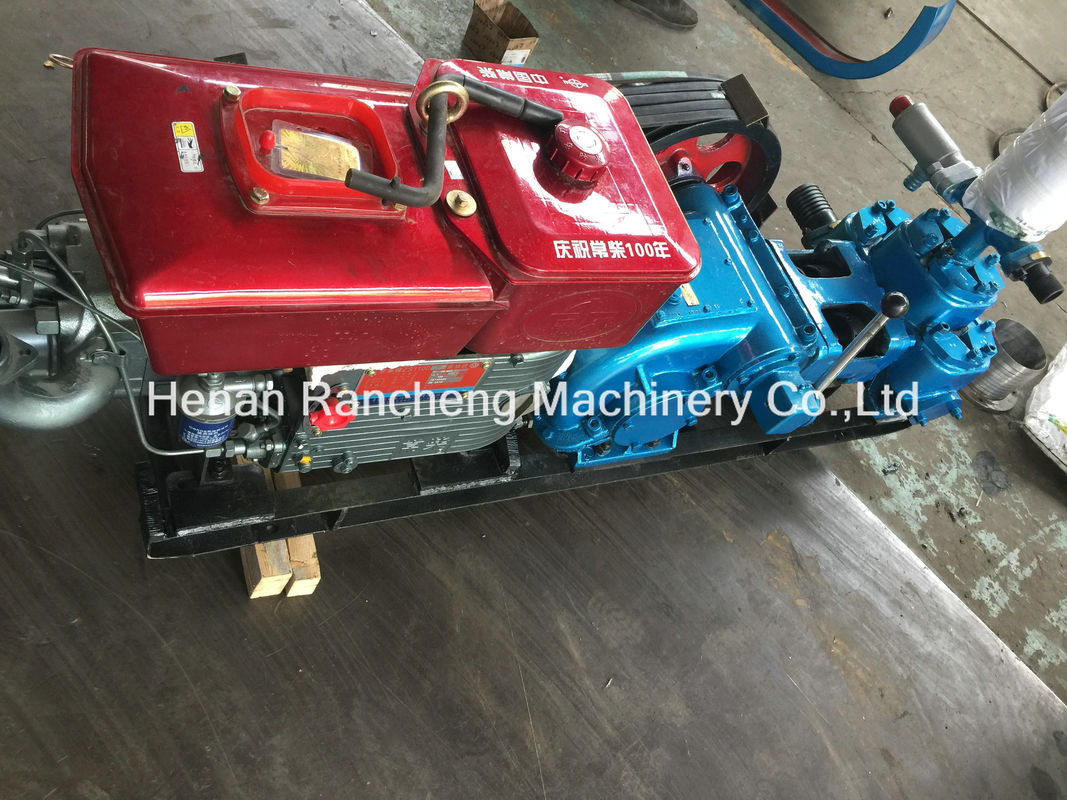

Bw200 Triplex Hydraulic Mud Pump for Drilling Rig 0

Bw200 Triplex Hydraulic Mud Pump for Drilling Rig 1

Bw200 Triplex Hydraulic Mud Pump for Drilling Rig 2
