Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter

150m Portable Water Well Drilling Machine

450mm Portable Water Well Drilling Machine

Portable Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCS200P Portable Well Drilling Machine

Contact Us
Request A Quote
Product Details
Model Of Drilling Machine:
RCS200P
Weight Of Drilling Machine:
1000KG
Drill Rod Length:
1500mm
Drill Rod Diameter:
50mm
Diesel Motor Power:
22/16.2Hp/kw
Drilling Depth:
150m
Stroke Distance:
2000mm
Highlight:

150m Portable Water Well Drilling Machine

,

450mm Portable Water Well Drilling Machine

,

Portable Water Well Drilling Machine

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
Standard shipping
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter



Product Description



The RCS200P portable water well drilling rig has become a leader in the field of water well drilling with its excellent performance and flexibility. Not only does it have a drilling depth of up to 150 meters and a drilling diameter of 100 - 450 mm, it also emphasizes its portability, making it extremely easy to move and transport through well-designed wheels and trailer structures. Equipped with a powerful 22 - horsepower diesel engine, the RCS200P can maintain efficient work efficiency in various environments. Whether in a vast farmland, a home backyard or a private garden, this drill can meet your water well drilling needs and is ideal for multi - scenario applications.



Applications



This water well drilling machine mainly apply to geothermal drilling, farm irrigation,house yard, gardens ,water well drilling and boring drilling etc,it can drill 70-450mm diameter , Max 150m depth,It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 450mm ,it can apply to different stratum, such as sand,soil,clay,soft rock and so on.



Product Specifications



Model of drilling machine RCS200P
Drilling machine overall dimension(mm) 1800*1000*2000
Weight of Drilling machine (kg) 1000
Drill rod diameter (mm) Ø50
Drill rod length(mm) 1500
Rod change method Full automatic screw thread
Drilling depth(m) 150
Diesel Motor Power (Hp/kw) 22/16.2
Drilling method Percussive and rotating type
Drilling hole diameter(mm) Within Ø 450mm
Stroke distance (mm) 2000
Hosting capacity (kg) 1500



Product Features



1. Light weight, energy saving.

2. Patented product, unique design and simple drilling structure;

3. Easy to transport and can learn how to handle the machine in short time;

4. Can drill through hard stratum, unless thick rock layer ;

5. One person operation, reduce the labor intensity ;

6. High efficiency and work fast;

7. Assure easily operation and long life service life.

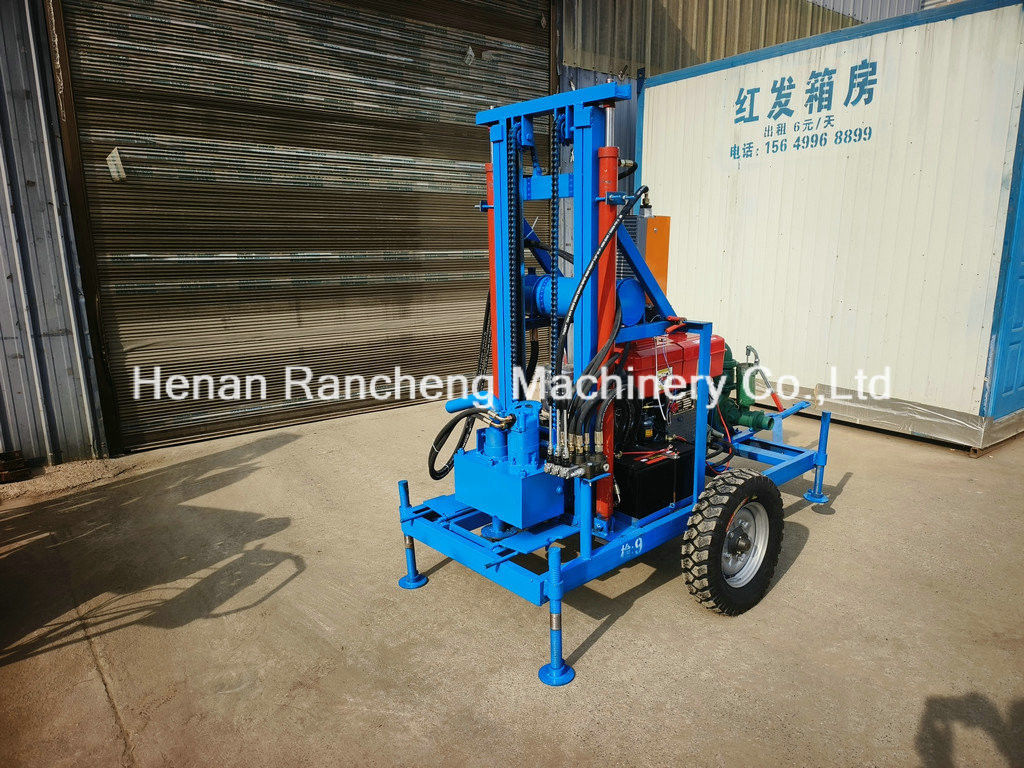

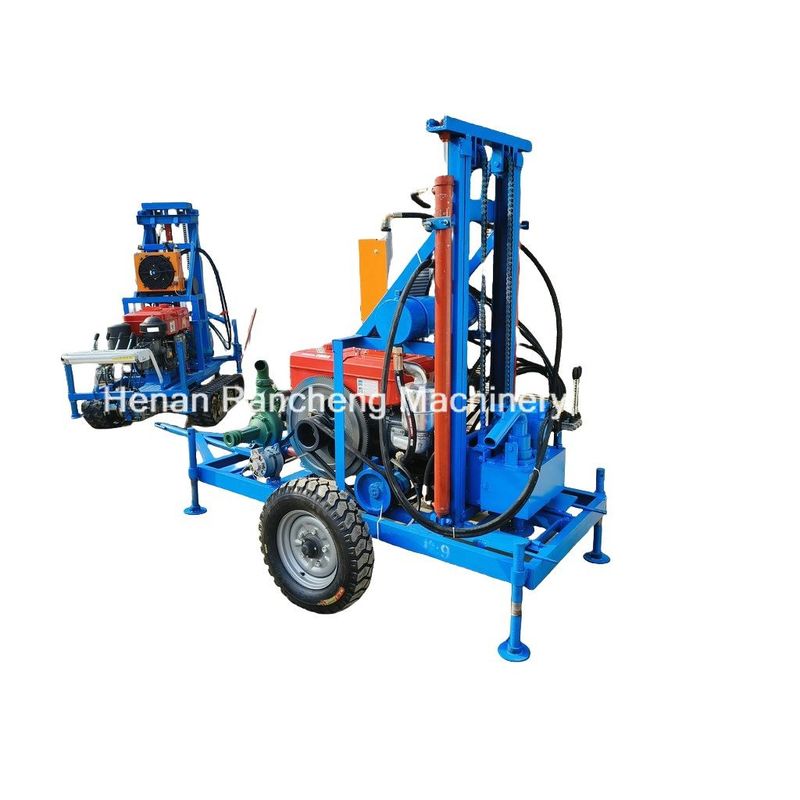

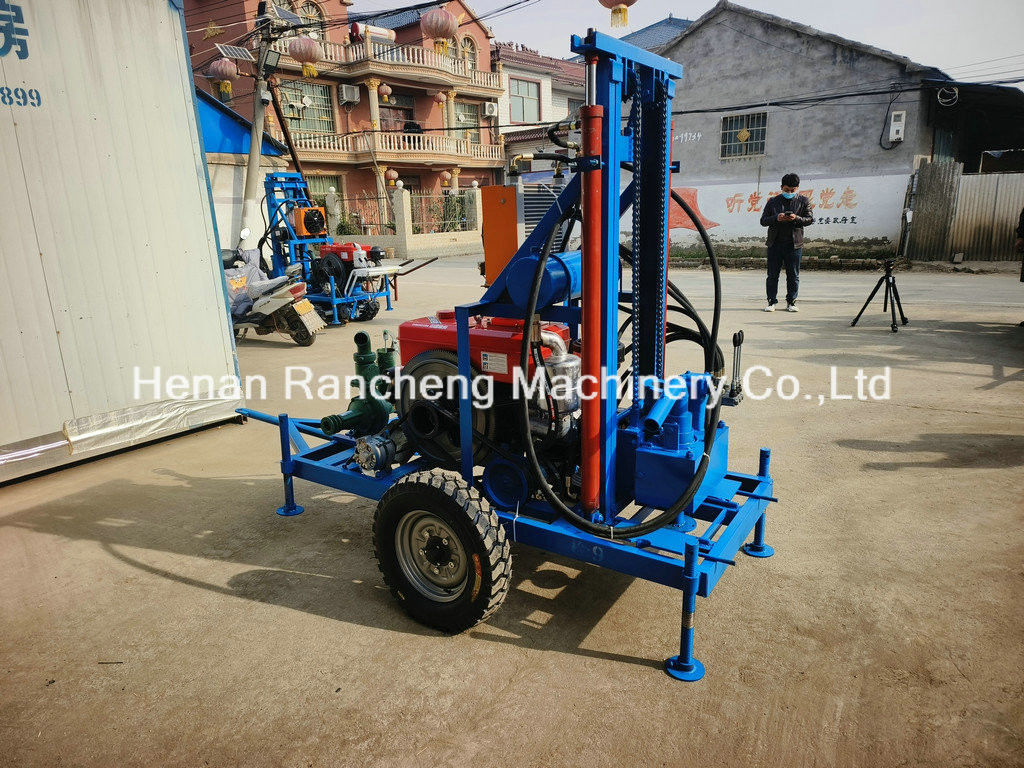

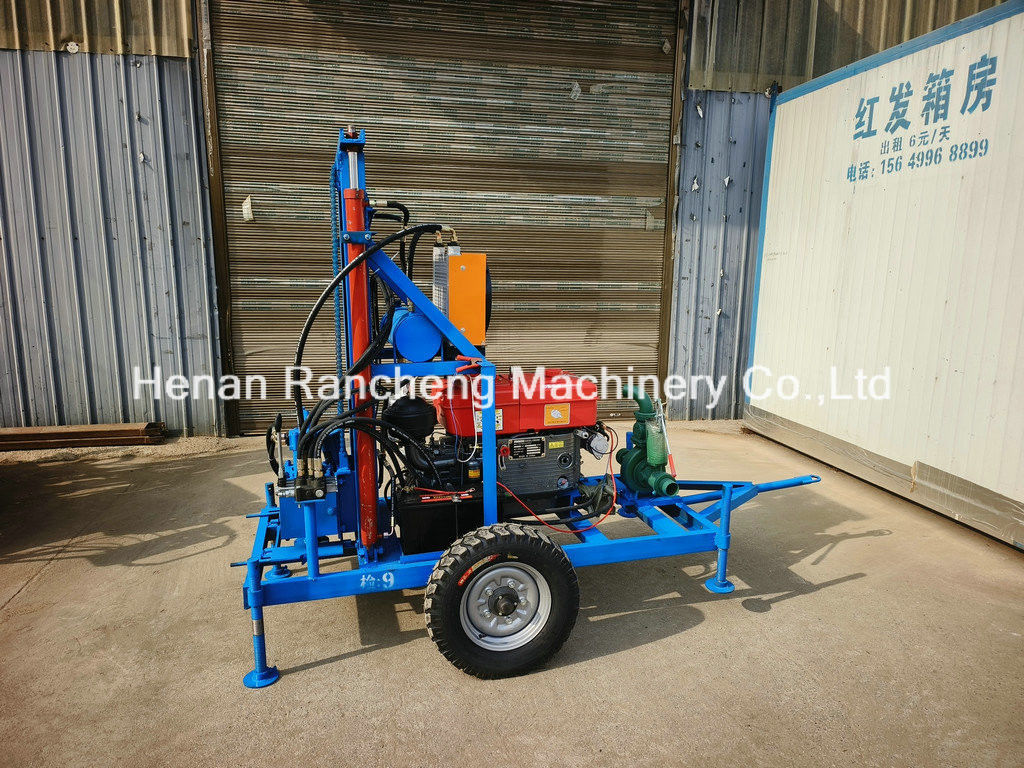

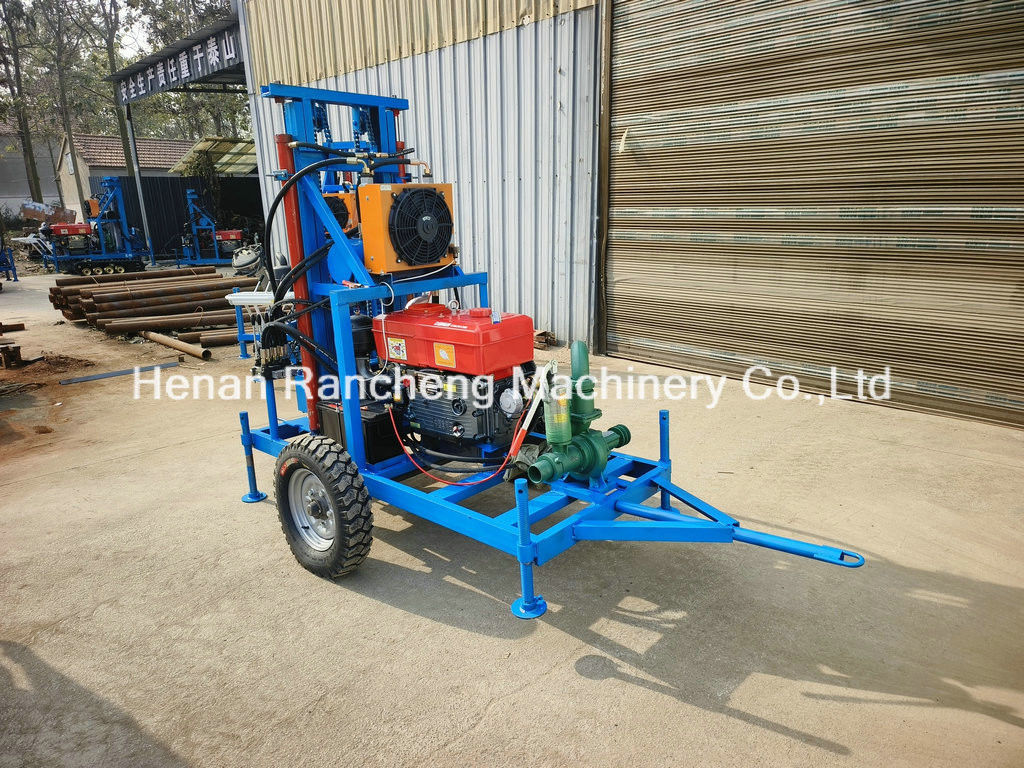

Product Image

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 0

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 1

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 2

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 3

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 4

Portable Water Well Drilling Machine with 150m Drilling Depth and 450mm Diameter 5
