Name: Bw Series Water Well Drilling Machine 450L/Min Mud Pump Bw450/5
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: BW450/5
Availability: InStock

Home > products > Drilling Mud Pump >

Bw Series Water Well Drilling Machine 450L/Min Mud Pump Bw450/5

Bw Series Water Well Drilling Machine

Bw450/5 Water Well Drilling Machine

450L/Min Water Well Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

BW450/5

Request A Quote

Product Details

Name:

Mud Pump

Strok:

100mm

Pressure:

2/3/4/5MPA

Pump Speed:

86/112/168/223times/min

Type:

Three Cylinder

Engine:

Changchai Engine 28HP

Highlight:

Bw Series Water Well Drilling Machine

Bw450/5 Water Well Drilling Machine

450L/Min Water Well Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

Standard shipping

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Horizontal Tri-Cylinder Dual Role Penthouse Detroit Piston Pump BW850 Mud Pump With Flow 850L/min

Get Best Price

Video

Bw Series Water Well Drilling Rig with a 450L/Min Mud Pump, Model Bw450/5

Get Best Price

Video

185KW Power BW1200/7 Piston Pump For 1000m Deep Water Well Projects

Get Best Price

Video

BW1200 Double-cylinder Double-acting Piston Pump Two-speed Transmission Mud Pump

Get Best Price

Contact Now

Product Description

BW Series Water Well Drilling Machine 450L/Min Mud Pump Bw450/5

Machine Introduction

BW450 / 5 diesel engine mud pump is a powerful and durable device for deep well drilling, with a displacement of 450 litres per minute and a maximum operating pressure of 5 mpa, powered by a 28 HP diesel engine. This horizontal three - cylinder reciprocating single - action mud pump can provide flushing fluids for core drilling or hole drilling. It can discharge clean water and thick mud. Because of its small size and light weight, it is particularly suitable for mountain transport. With three holes and four speeds, the BW450 / 5 mud pump can adjust the displacement and hole depth according to the actual needs, and is also suitable for cement filling. The mud pump is widely used for pumping abrasive and high density slurries in mining, heavy industry, civil construction and municipal applications.

Technical Parameters

Type		Horizontal three cylinder reciprocating single acting piston pump
Cylinder diameter	mm	95
Stroke	mm	100
Pump speed	Times/min	223	168	112	86
Flow	L/min	450	340	240	172
Pressure	Mpa	2	3	4	5
power	Changchai engine 28HP
Dimension size	1200X1100X650mm
Weight	520KGS (without engine)

Machine Advantages

The BW450/5 mud pump is suitable for geological exploration, especially for core drilling and drilling to provide the necessary mud or water supply to ensure the efficiency and safety of drilling operations. The core function of the pump is to remove cuttings from the bottom hole during the drilling cycle, keep the bottom hole clean, and provide the necessary cooling and lubrication for the drill bit and drill tool to improve the quality of the drilling operation and the life of the drill tool. The BW450/5 mud pump is versatile and can operate efficiently in a variety of geological environments, especially at drilling depths of up to 1500m.

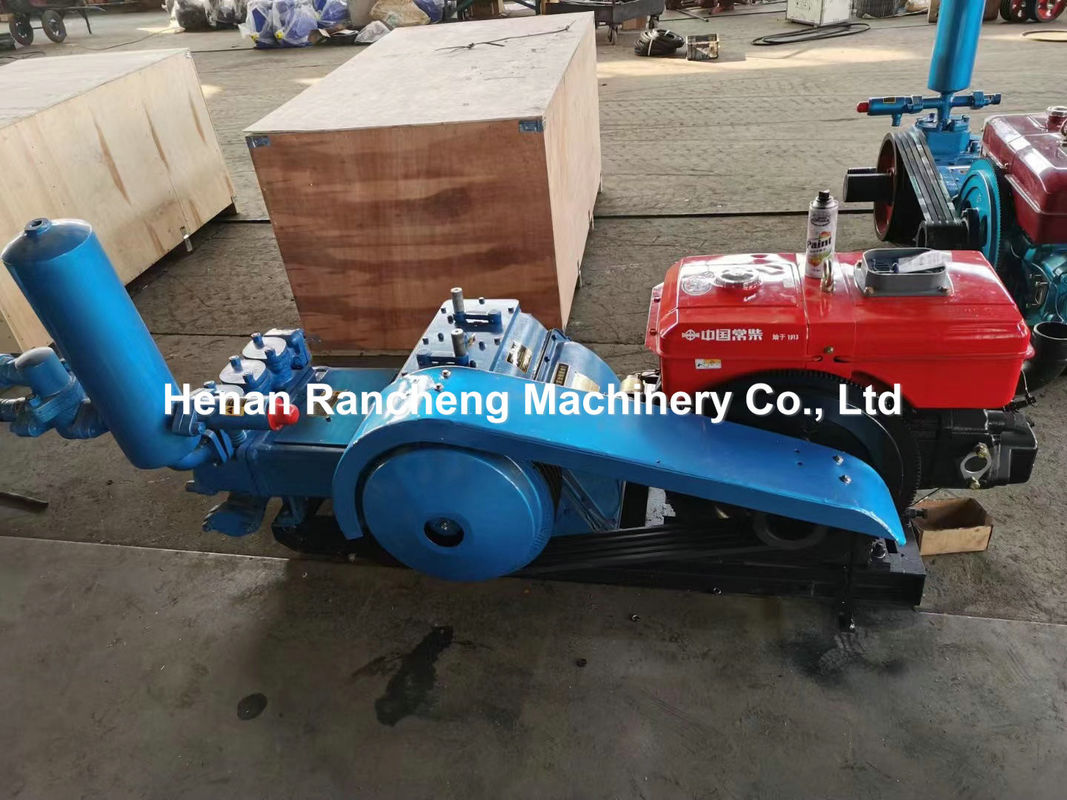

Machine Pictures
