180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole

77.3KW Water Well Drilling Rig

Borehole Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF180S

Contact Us
Request A Quote
Product Details
Lifting Force:
15T
Color:
Customizable
Bore Diameter(hammer):
90-300mm
Bore Depth:
180m
Air Consumption:
17-31m³/min
Air Pressure:
1.7-2.5Mpa
Pipe Diameter:
76mm/89mm
Highlight:

77.3KW Water Well Drilling Rig

,

Borehole Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole

Machine Description


RCF180S mini well drilling rig is a small crawler water well drilling rig. It can drill up to 180 meters and the diameter is up to 300 mm. This mini well drilling rig has high drilling efficiency, easy operation, energy saving, and durability which is suitable for water well drilling, borehole drilling, farmland irrigation drilling, borehole drilling, etc.

RCF180S water well drilling machine uses a 2-meter-long drill pipe, making it very convenient to load and unload the drill pipe. It is not only suitable for general water well drilling, but also can be used for geothermal wells, ground source heat pump wells and other projects. This drilling rig is easy to operate and has a wide range of applications. It is a small water drilling rig with excellent performance.

Made of high-quality materials and advanced manufacturing processes, mini well drilling rig has a sturdy structure that can withstand harsh drilling conditions and can be used for many years with minimal maintenance.


Technical Parameters


Bore diameter(hammer)90-300mm
Bore depth180m
Air consumption17-31m³/min
Air pressure1.7-2.5Mpa
Once-time advance length2.4m
Pipe diameter76mm/89mm
Pipe length2m
Push force4T
Lifting force15T
Max torque of rotary4000-4600Nm
Rotary speed45-65r/min
Mud Pump flow200L/min (option)
Feeding efficiency10-35m/h
Travel speed2.5Km/h
Climb ability30°
Dimension(L*W*H)2300×1200×1900mm
weight2700kg
Diesel engine77.3KW Yuchai engine


Advantage

This mini water well drilling rig is equipped with a low-emission diesel engine and an energy-efficient hydraulic system, which not only reduces fuel consumption but also reduces emissions, and has the dual advantages of environmental protection and cost savings. Its powerful hydraulic system and advanced drilling tools enable it to drill to a depth of up to 180 meters, making it particularly suitable for small water well projects or home use.
The crawler chassis of the drilling rig provides excellent stability and outstanding maneuverability, allowing it to move smoothly in a variety of complex terrains and difficult drilling conditions. This design ensures that the drilling rig can operate efficiently even on uneven ground, thereby improving the safety and reliability of construction.
In addition, the drilling rig is equipped with an ergonomic control panel and an intuitive user interface, allowing the operator to easily grasp and monitor the drilling progress. Such a design not only improves the comfort of operation, but also simplifies the operation process and improves work efficiency.
In general, this mini water well drilling rig excels in performance, environmental protection, and ease of operation, making it an ideal choice for water well drilling.

Image Display

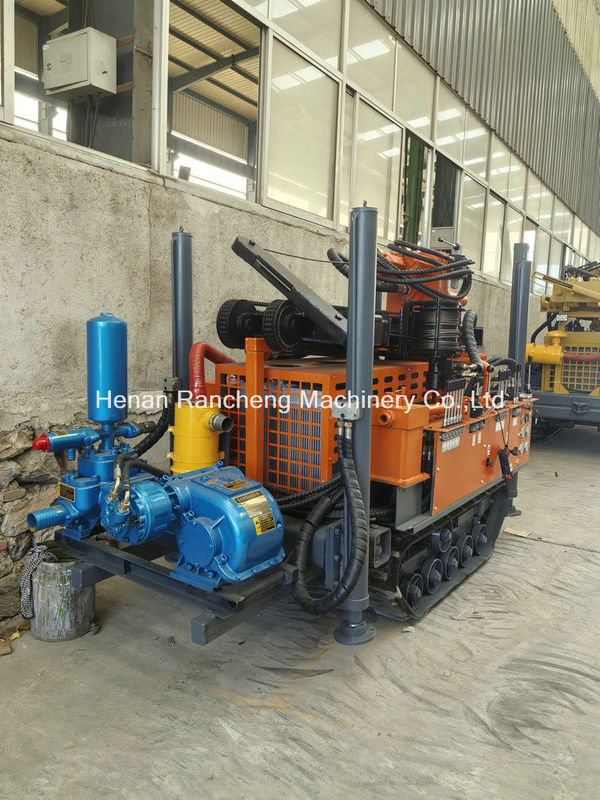

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 0

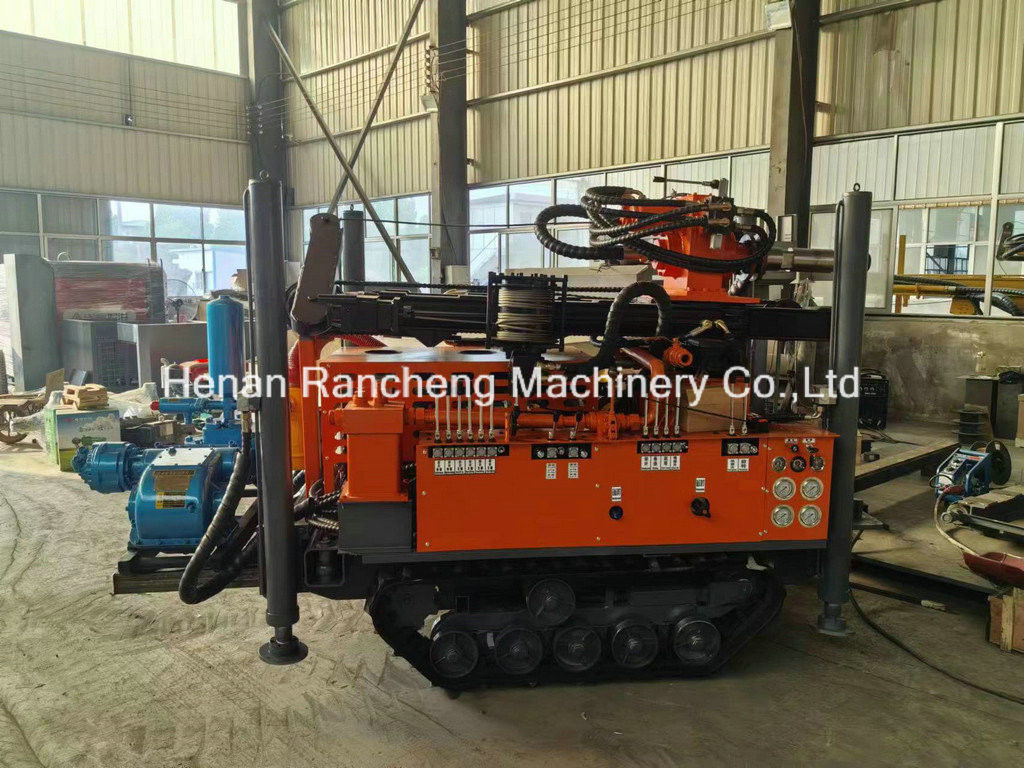

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 1

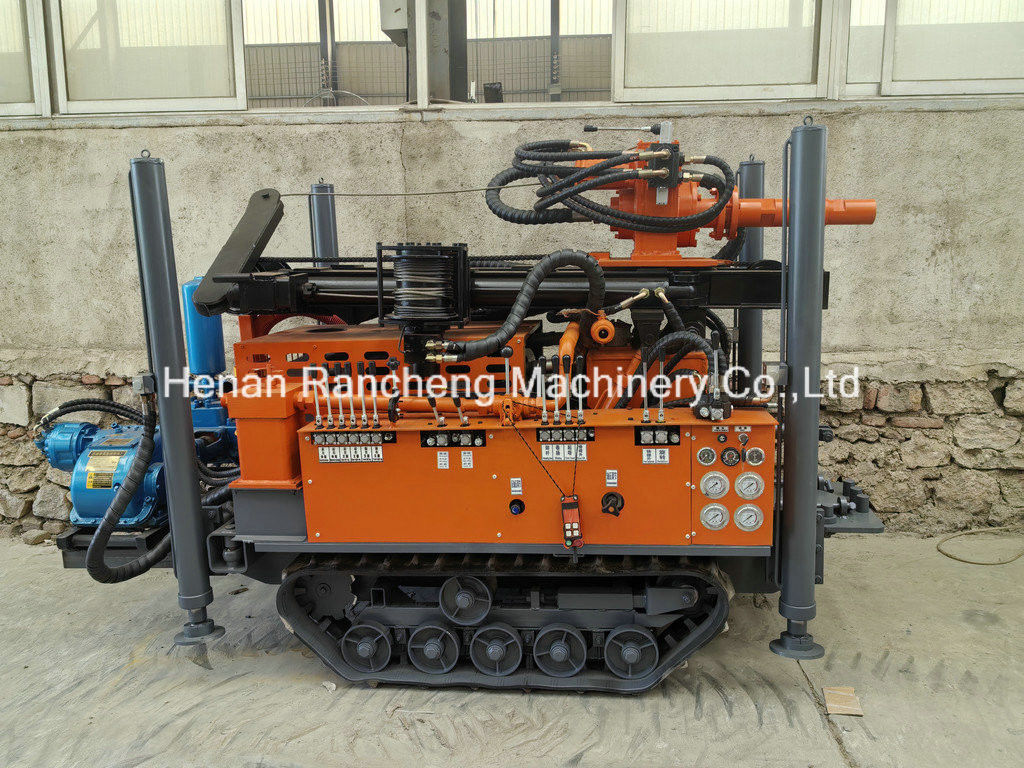

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 2

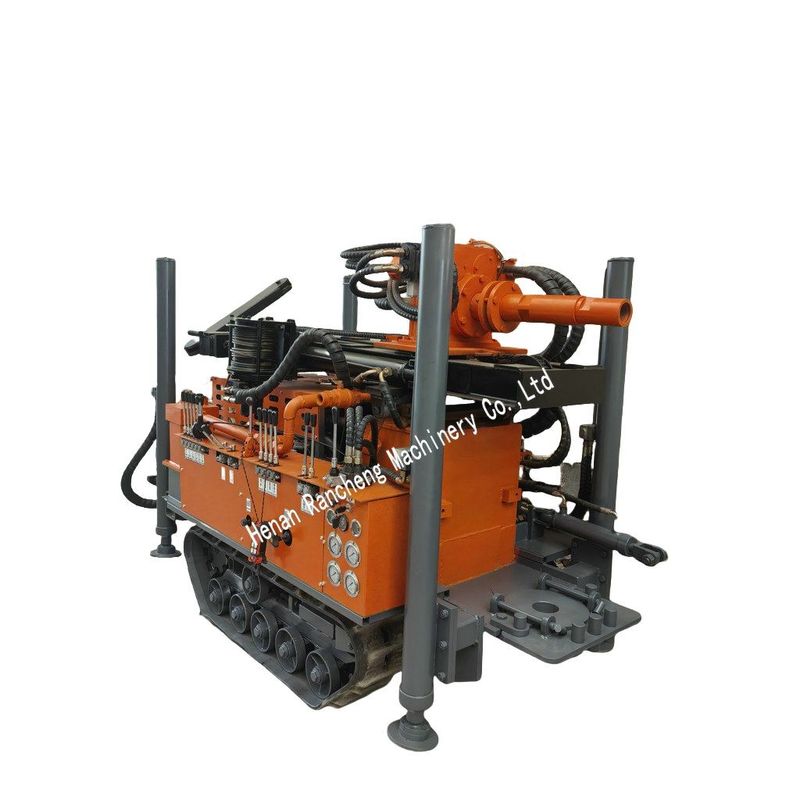

180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 3
180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 4
180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 5
180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 6
180m Mini Crawler Water Well Drilling Rig with 77.3KW YuChai Engine for Borehole 7
