Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor

Mud Pump Water Well Drilling Rig

Mini Portable Water Well Drilling Rig

Air Compressor Water Well Drilling Rig

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF150S

Contact Us
Request A Quote
Product Details
Color:
Customizable
Diesel Engine:
42KW Yunnei Engine
Feeding Efficiency:
10-35m/h
Travel Speed:
2.5Km/h
Climb Ability:
30°
Pipe Diameter:
76mm/89mm
Pipe Length:
2m
Highlight:

Mud Pump Water Well Drilling Rig

,

Mini Portable Water Well Drilling Rig

,

Air Compressor Water Well Drilling Rig

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Packaging Details
It can be shipped by one 20" container
Delivery Time
10-15 working days
Payment Terms
T/T, Western Union
Supply Ability
100sets per Month
Product Description

High Quality Low Price Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor

Products Description



The RCF150S small water boring machine is a dependable and adaptable solution for a wide range of drilling needs. With its lightweight design, weighing just 2300kg, it offers remarkable portability, making it perfect for diverse water drilling projects. Whether you need to drill farm irrigation wells, yard wells, geothermal wells, or industrial wells, the RCF150S is up to the task.

This versatile machine can drill holes up to 150 meters deep and accommodate diameters ranging from 90 to 300 mm. Its advanced features include dual rotary motor head drives, which enhance its drilling efficiency. Additionally, the RCF150S can be paired with mud pumps and air compressors, allowing it to handle various soil types and ensure smooth, effective drilling operations. This combination of portability, depth capacity, and adaptability makes the RCF150S an excellent choice for both small and large-scale water drilling projects.


Machine Specifications

Bore diameter(hammer) 90-300mm
Bore depth 150m
Air consumption 17-31m³/min
Air pressure 1.7-2.5Mpa
Once-time advance length 2.4m
Pipe diameter 76mm/89mm
Pipe length 2m
Push force 4T
Lifting force 12T
Max torque of rotary 3500-3800Nm
Rotary speed 40-65r/min
Mud Pump flow 200L/min (option)
Feeding efficiency 10-35m/h
Travel speed 2.5Km/h
Climb ability 30°
Dimension(L*W*H) 2300×1200×1900MM
weight 2300kg
Diesel engine 42KW Yunnei engine


Machine Advantages


The RCF150S small water boring machine offers excellent mobility across challenging terrains thanks to its hydraulic rubber crawler travel system. With high horsepower and impressive torque output, this machine combines energy efficiency with environmental friendliness. Weighing just 2300kg, the RCF150S is a highly portable option, making it ideal for a variety of applications including farm irrigation, yard wells, geothermal wells, and industrial drilling projects.

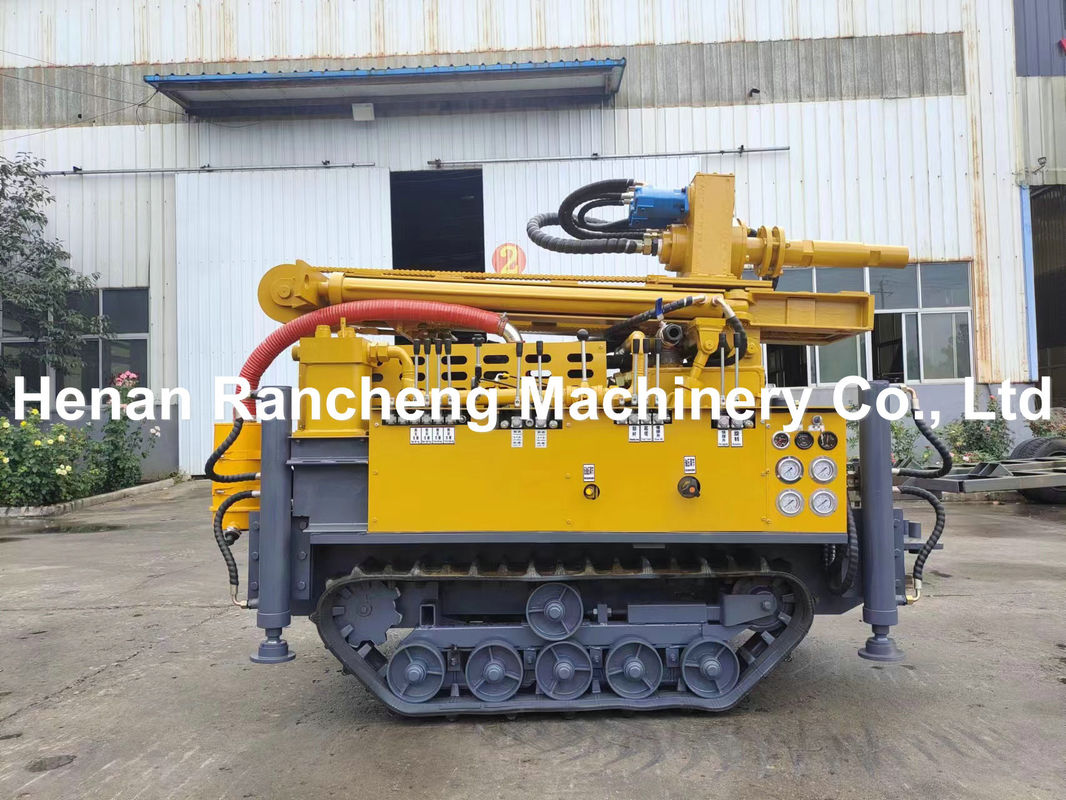

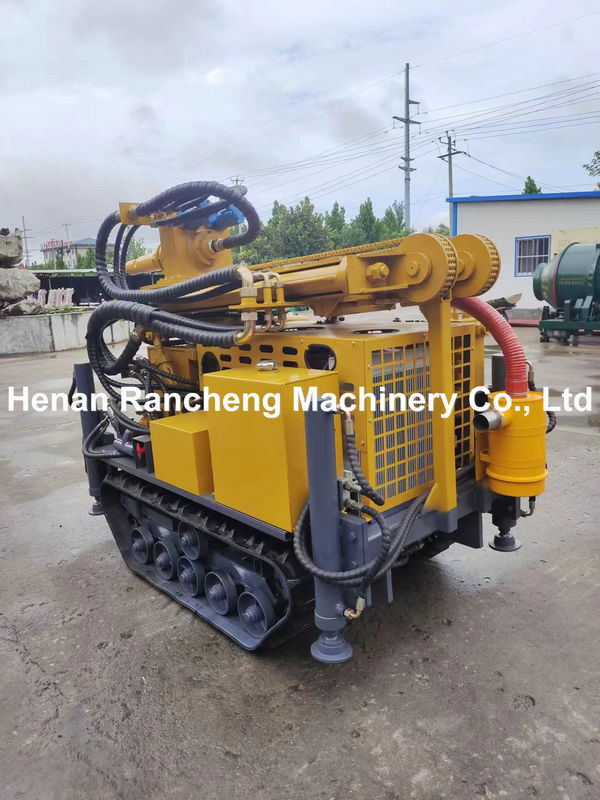

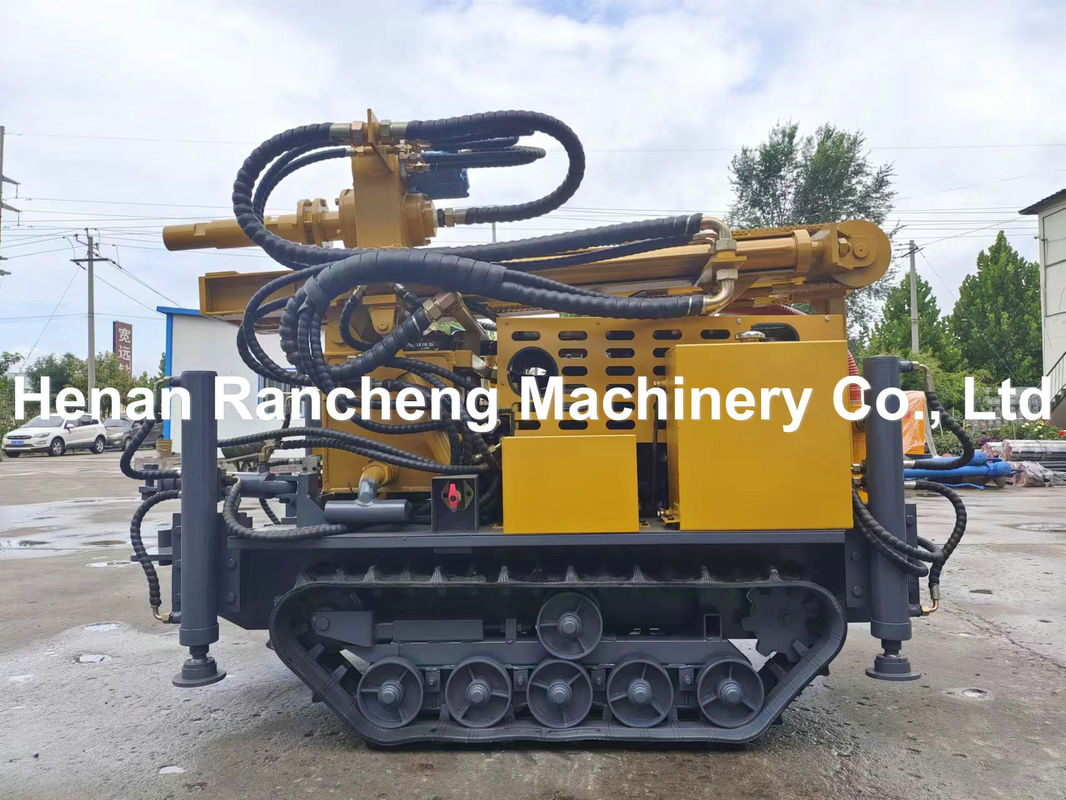

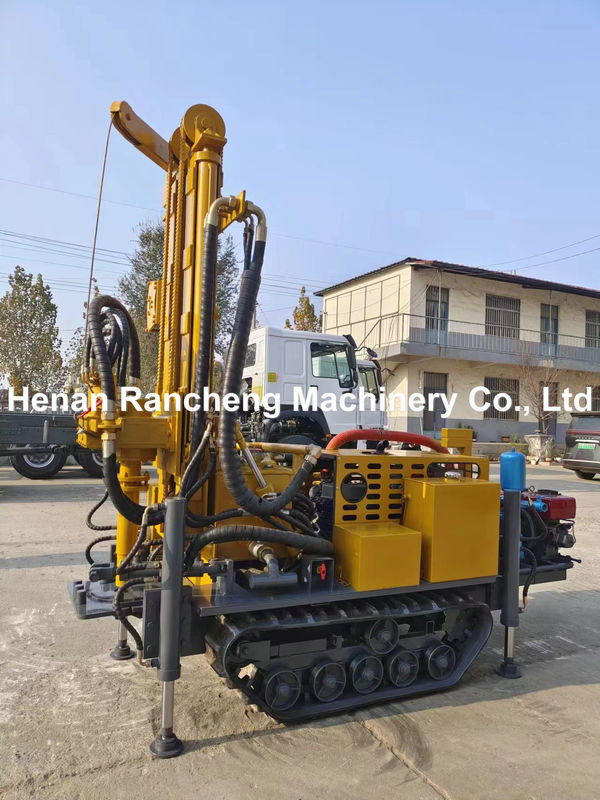

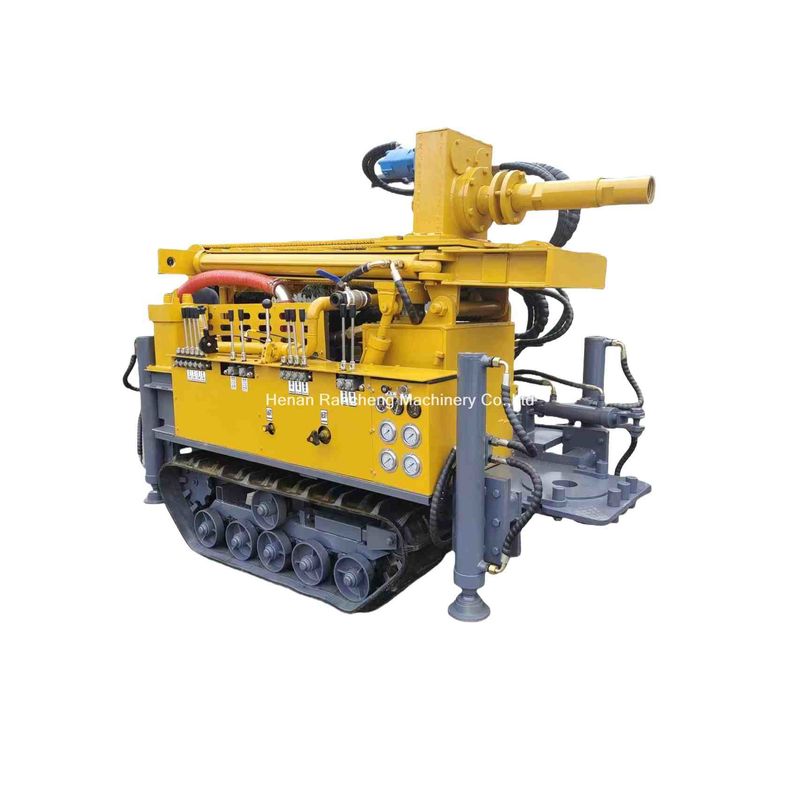

Machine Pictures
Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 0Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 1Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 2Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 3Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 4Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 5

Company Information


Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 6



Transportation



RCF150S can be loaded into a 20-foot container and transported by sea

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 7

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 8

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 9

Mini Portable Crawler Water Well Drilling Rig Machine with Mud Pump and Air Compressor 10
