100mm Piston Stroke 65mm Cylinder Diameter Drilling Mud Pump With 28HP Changchai Engine

100mm Piston Stroke 65mm Cylinder Diameter Drilling Mud Pump With 28HP Changchai Engine

Machine Introduction

BW450 / 5 diesel engine mud pump is a powerful and durable device designed for deep well drilling, with a displacement of 450 litres per minute and a maximum operating pressure of 5 mpa, powered by a 28 HP diesel engine. This horizontal three - cylinder reciprocating single - action mud pump is designed to provide flushing fluids for core drilling or hole drilling. It can discharge clean water and thick mud. Because of its small size and light weight, it is particularly suitable for mountain transport. With three holes and four speeds, the BW450 / 5 mud pump can adjust the displacement and hole depth according to the actual needs, and is also suitable for cement filling. The mud pump is widely used in exploration, geological survey, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction drilling, as well as coal exploration, ore exploration, small bore well drilling, ground source heat pump geothermal pipeline installation and small diameter hole foundation pile drilling and other fields.

Technical Parameters

Machine Advantages

They are also the main equipment of the geological survey,the main role in the process of core drilling boreholes is to supply fluid(mud or water),making it circulate during drilling and carry rock waste back to the ground,in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

BW450/5 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1500 meter.

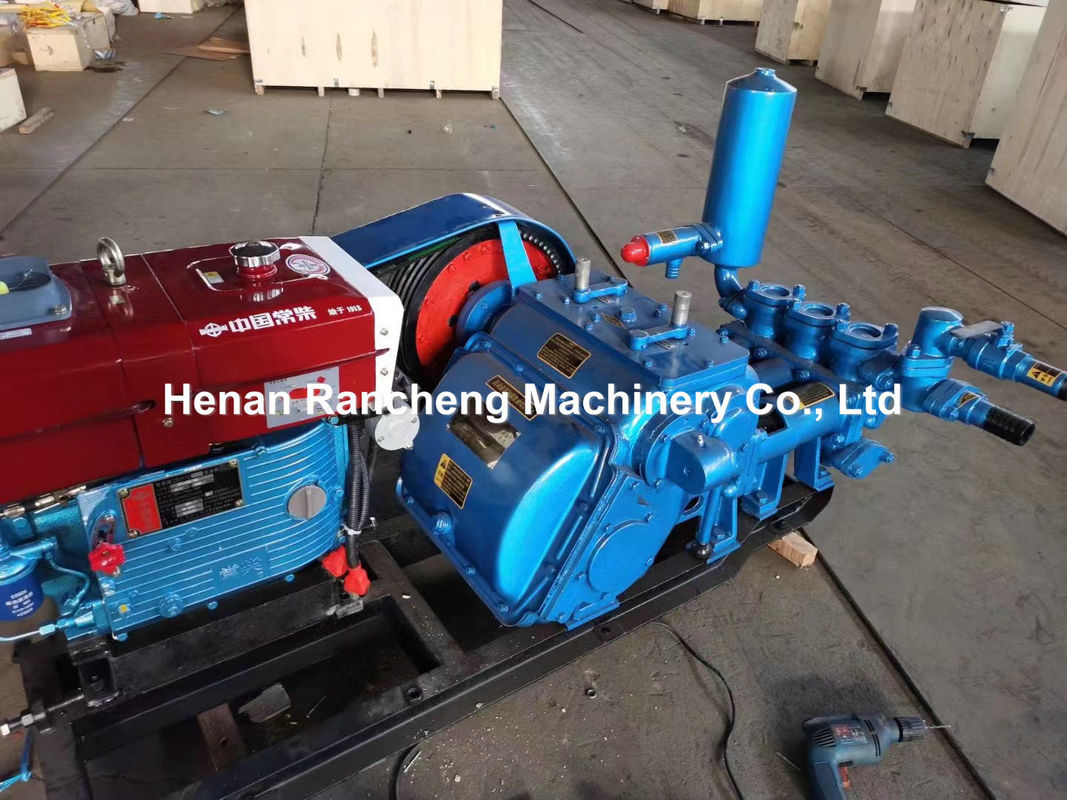

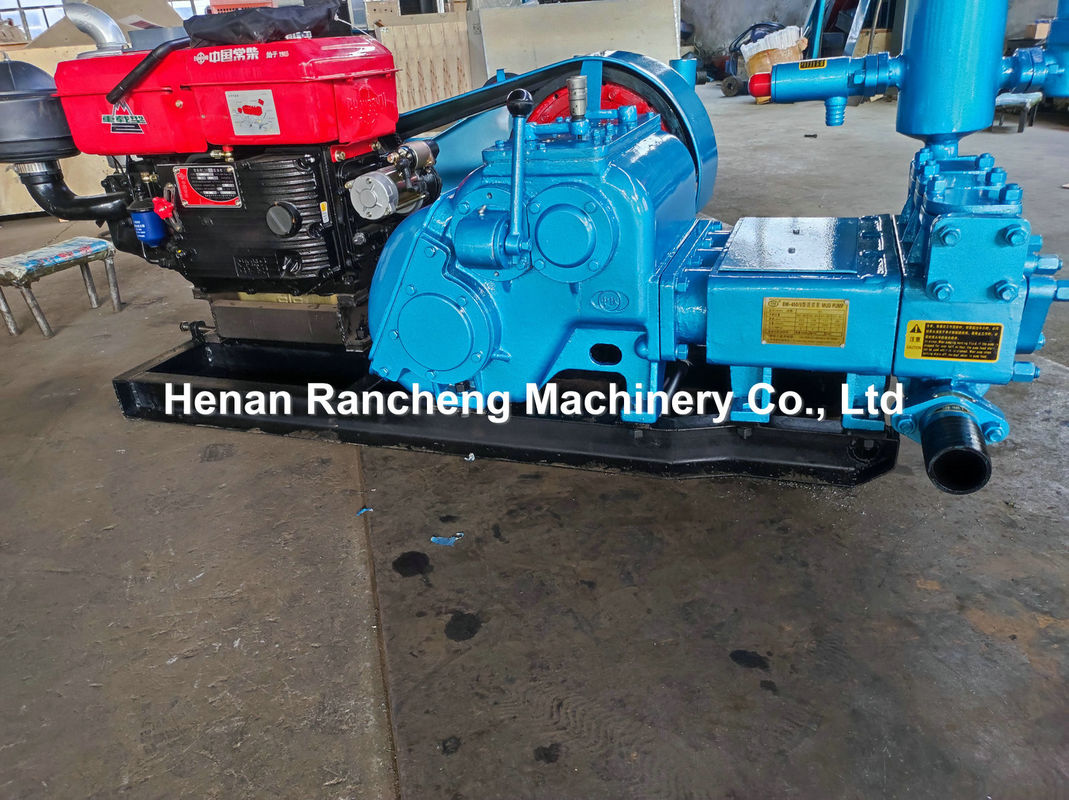

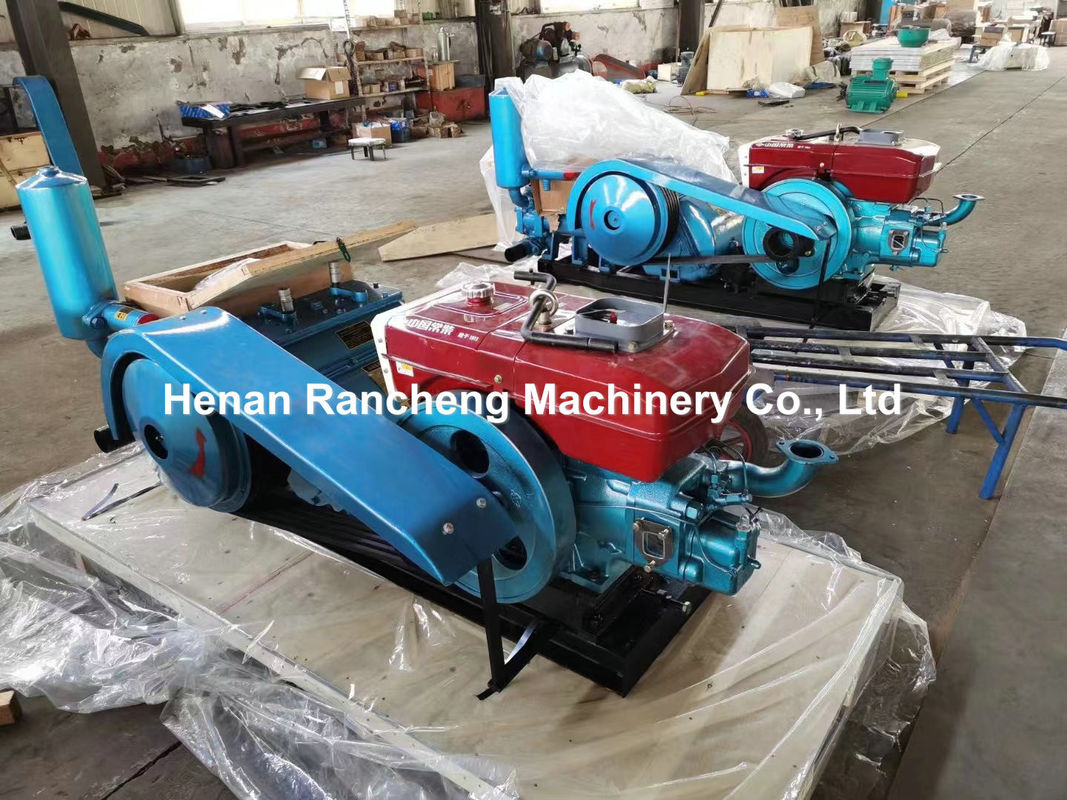

Machine Pictures
