Name: 280m RCF280C Multi-Functional Engineering Mining Drilling Machine
Brand: Henan Rancheng Machinery Co., Ltd.
SKU: RCF280C
Availability: InStock

Home > products > Water Well Drilling Machine >

280m RCF280C Multi-Functional Engineering Mining Drilling Machine

Engineering Mining Drilling Machine

280m Engineering Mining Drilling Machine

Multi-Functional Engineering Mining Drilling Machine

Place of Origin:

China

Brand Name:

RanCheng

Certification:

CE, ISO 9001:2000

Model Number:

RCF280C

Request A Quote

Product Details

Name:

Water Well Drilling Machine

Pipe:

2/3/4/5/6m

Fast Lifting Speed:

30m/min

Lifting Speed:

3m/min

Hoist Lifting Capacity:

Max Torque Of The Rotary:

7000-9000Nm

Dimension(L*W*H):

4100×1900×2600mm

Highlight:

Engineering Mining Drilling Machine

280m Engineering Mining Drilling Machine

Multi-Functional Engineering Mining Drilling Machine

Payment & Shipping Terms

Minimum Order Quantity

Price

Negotiable

Packaging Details

It can be shipped by one 20" container

Delivery Time

10-15 working days

Payment Terms

T/T, Western Union

Supply Ability

100sets per Month

Max 150 Meters Protable RCF150S Water Well Drilling Machine

Get Best Price

Video

350m Drilling Depth Rubber Caterpillar Track Water Well Drilling Rig Pneumatic Rubber Crawler Drilling Rig

Get Best Price

Video

350m Drilling Depth 91KW Yuchai Engine Water Well Drilling Rig 22T Lifting Force

Get Best Price

Video

Compact And High Efficiency 150 Meter Water Well Drilling Rig

Get Best Price

Contact Now

Product Description

280m Bore Depth Hydraulic Crawler Water Well Drilling Machine 70KW Yuchai Engine

Product Description

High-strength hydraulic outriggers can adjust the level of the drilling rig quickly and stably, and are convenient for loading and unloading.Special wellhead setting provides a certain drilling center to ensure vertical drilling positioning accuracy. The mechanical positioning of the trolley and the frame improves the stability of the trolley
The pneumatic system has a customized oiler to lubricate the impactor, which effectively increases the service life of the impactor.

Technical Parameters

Model	RCF280C
Bore diameter(Hammer)	100-350mm
Bore depth	280m
Air consumption	17-35m³/min
Air pressure	1.7-3.0Mpa
Pipe diameter	89mm/102mm
Pipe length	3m/6m
Lifting force	18T
Lifting speed	3m/min
feeding speed	0.5-5m/min
Fast lifting speed	30m/min
Fast feeding speed	50m/min
Max torque of the rotary	7000-9000Nm
Rotary speed	40-70r/min
Hoist lifting capacity	2T
Mud Pump flow	450L/min (option)
High hydraulic leg	1.5m
Feeding efficiency	10-35m/h
Travel speed	2.5Km/h
Climb ability	30°
Dimension(LWH)	4100×1900×2600mm
Weight	7000Kg
Diesel engine	70KW Yuchai engine

Product Advantages

1. Equipped with a 70KW Yuchai brand engine with strong power;

2. The patented design of the composite tower, the stroke is 6.6 meters, the double oil cylinder lifts, and the tonnage is large

3. The main arm of each drilling rig is equipped with a block to protect the oil cylinder;

4. Drilling rig chassis: professional excavator chassis, durable, strong bearing capacity, wide chain plate, less damage to hard roads.

5. Parallel gearbox design, independent oil pump, sufficient power, reasonable distribution, unique hydraulic system design,

Simple maintenance and low cost

6. The walking motor has a reducer, which is durable and has a long service life;

Machine Picture Display

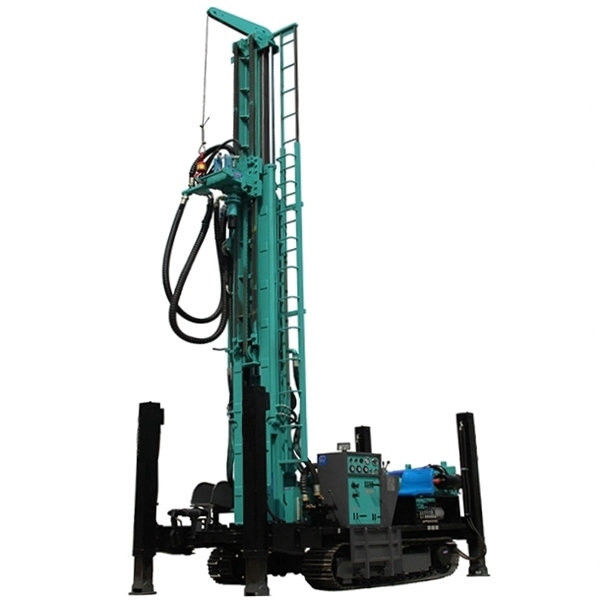

280m RCF280C Multi-Functional Engineering Mining Drilling Machine 0
